CX-KZX95-I Intelligent Control Device for Switch Cabinet
I. Product Overview
The CX-KZX95-I series intelligent control device for switch cabinets is equipped with a LCD display, voice anti-error prompts, dynamic simulation diagrams, switch status, circuit breaker position, earthing blade position, spring energy storage status, high-voltage live indication, high-voltage live interlock, voltage verification and phase checking function, two-way three-phase live indication interlock, automatic or manual heating and dehumidification control, temperature and humidity value display, heater open circuit alarm, over-temperature indication, remote/local operation, cabinet lighting, human body sensing, and pre-break and pre-close flash indication, among many other features.
Section II: Technical Specifications
Working Power: AC/DC 85~265V, Power Consumption < 10W
Temperature and Humidity Control: Single or dual temperature and humidity control and display
Measurement Range: Temperature -20℃ to 100℃, Humidity 0 to 99.9% RH
Communication Interface: RS485, Modbus-RTU communication protocol, baud rate adjustable at 9600
Alarm for Disconnected Wire: When any heating element's wire is disconnected, the alarm output node closes, and the entire indicator light illuminates.
Operating Environment: Temperature -20℃ to 60℃, Relative Humidity <90%RH without condensation
Insulation Performance: Each energized part to ground, tested with an open circuit voltage tester of 500V, resistance not less than 100M.
Medium Strength: Power to Enclosure Ac2000V/1min

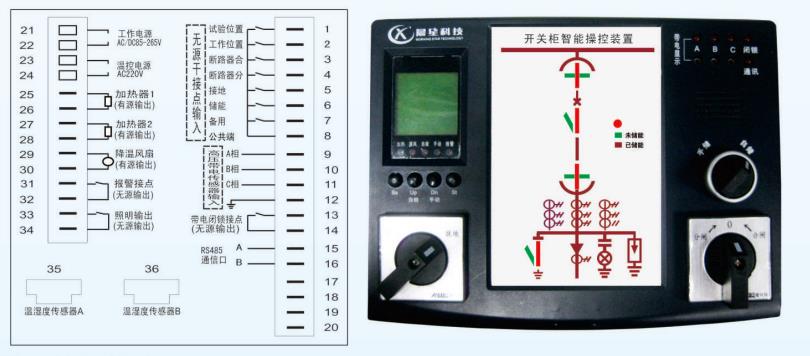

Section 3: Product Wiring

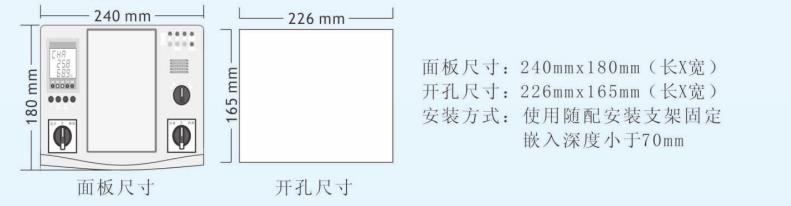

Four: Dimensions
