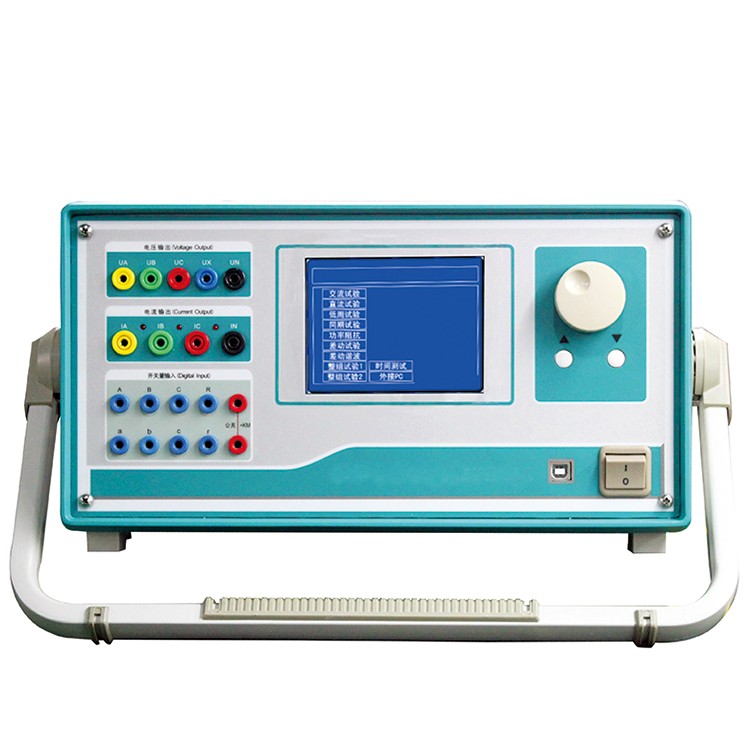

BoDe Power Relay Protection Tester

Product Features

Flexible Voltage and Current Output Combination

Output Achieved6Phase Voltage6AC current, can be freely combined to achieve conventional4Phase Voltage3AC Current Type6 Phase Voltage Type6AC Current Type12The phase-type output mode is compatible with various traditional testing methods and facilitates differential testing of three-phase transformers, as well as rapid switching and backup power supply tests.

Operation Method

The device can be directly connected to a laptop or desktop for operation, offering convenience and speed with stable performance.

New High-Fidelity Linear Power Amplifier

Our output end has consistently adhered to the use of high-fidelity, high-reliability modular linear amplifiers, rather than switching amplifiers. Release, PerformanceZhuo.No Chinese content provided.The test site will not experience high or medium-frequency interference, and ensures a flat waveform throughout the entire range from high to low currents. The sliding precision is excellent.

High-performance server

Output section implementedDSPControl, rapid processing speed, strong real-time digital signal processing capabilities, wide transmission bandwidth, and high-resolution controlD/AThe conversion offers high waveform accuracy with minimal distortion and excellent linearity. It incorporates a multitude of advanced technologies and precision component materials, along with professional structural design, resulting in a compact, lightweight, full-featured, and portable device. It's ready to operate immediately upon startup, making mobile testing extremely convenient.

Powerful software functionalities

 The system can handle a wide range of high-automation, large-scale, and complex verification tasks. It conveniently tests and scans various protection settings, performs fault replay, stores test data in real-time, displays vector graphs, and prints reports online.6The phase current facilitates three-phase differential protection testing.

Features an independent dedicated DC power output

Established a route. 110V No Chinese content provided.220V Dedicated adjustable DC power supply output.

Interface Complete

Equipment withUSBCommunication port, enabling communication with computers and other external devices.

Enhanced Self-Protection Features

The heat dissipation structure is designed reasonably, the hardware protection measures are reliable and comprehensive, and it features a soft power-on start function. Features for self-diagnosis of faults and outputting interlock functions.
