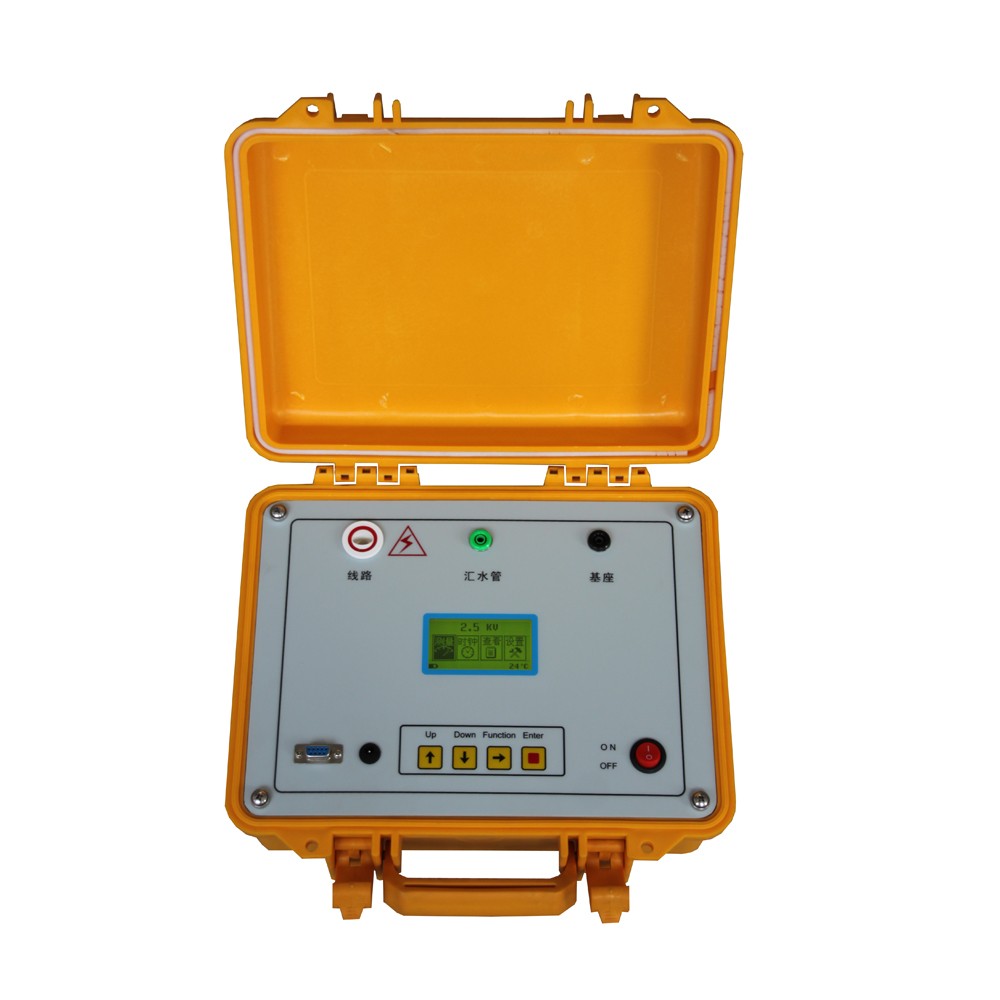

Insulation Resistance Measurement Instrument

The Insulation Resistance Tester is specifically designed for laboratory or on-site insulation testing. It includes a high-precision microcurrent measurement system and a digital step-up system. Measurement can be conducted by simply connecting the test piece with one high-voltage line and one signal line. The measurement is automatic, and the results are displayed on a large LCD screen and stored.

I. Key Features

1．Adopted32Microcontroller controlled, full Chinese operational interface, easy to operate.

2Automatically calculates the absorption ratio and polarization index, and stores them automatically.15Second1Minute10Minute data is convenient for analysis.

3High output current, short-circuit current ≧5mARobust anti-interference capability, capable of meeting the on-site operations of ultra-high voltage substation.

4The automatic discharge after testing is completed, with real-time monitoring of the discharge process.

5Included is a rechargeable battery and charger, which allows for continuous use after a full charge.6～12Hourly.

6．Please provide the Chinese content to be translated.RS232Serial Port, featuring the functionality of computer-operated instruments (optional).

Section II: Key Technical Performance

     Accuracy:±(10%+5No Chinese content provided.)           Measurement Range:0.1M～100GΩ

     Digital and Analog Pointer Display Temperature Measurement:-45℃～125℃

     Test Voltage Range:0.5Kv ，1KV，2.5KV

     Short-Circuit Current:≧5mA   Measurement Time:1Minute～10Minutes (depending on the method of measurement)

     Charging Power Supply:180～270VAC  ,50Hz/60Hz±1% (City power or generator supply)

 Work Environment: Temperature-10～40No translation needed. Return as is: "℃，relative humidity"20～80％。

III. Operational Component Functions

 1.LTerminal Connector:“LFor the high-voltage output end, referred to as the line end, which is connected to the measured line end via high-voltage cables, such as to the motor winding or cable core.

 2.GTerminal Connector:“GThe shielded end, used for measuring the volume resistance of insulating materials or cables in the three-electrode method, is connected to the protective ring terminal of the three-electrode setup.

 3.ETerminal Connector:“E"Known as the earth terminal, it is connected to the ground or neutral point of the item being tested. For example, the metal shell of an electric motor, the iron core of a transformer, or the shielding layer of a cable."

4Cautionary Notes and Other Information

Please be mindful of safety.LFor high-end pressure!EFor the terminal,Essential to the Earth!
