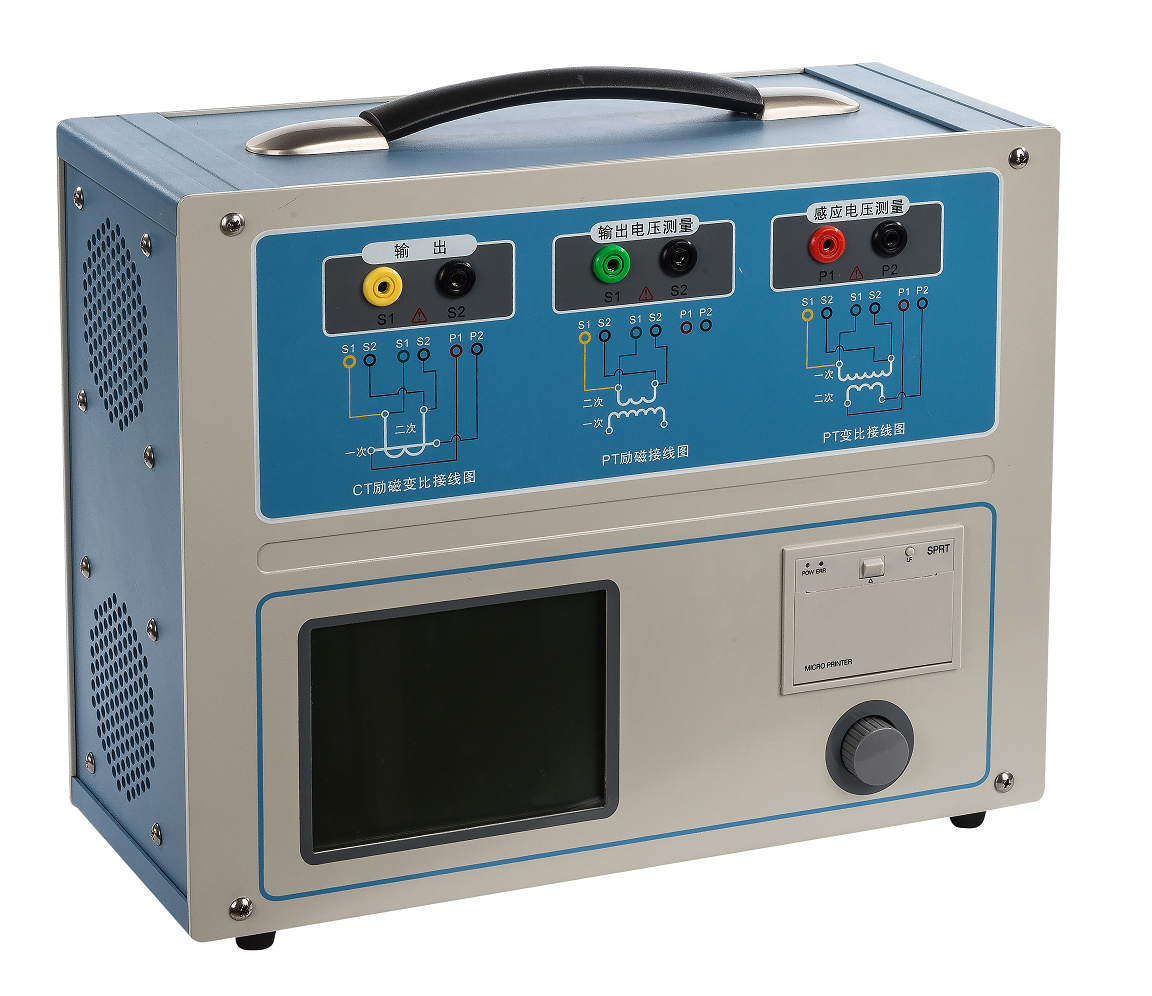

Testing Device for Measuring Transformers

Comprehensive Transformer Test Instrument Product Features in Detail

FeatureNo Chinese content provided..No Chinese content provided, please provide the news content to be translated.：

This product is not only suitable for all types ofCTA variety of testing requirements for current transformers, including excitation characteristics, transformation ratio, polarity, secondary winding resistance, secondary load, percentage deviation, and phase deviation, and can also meet variousPTTesting requirements for electromagnetic units (voltage transformers).All.SurfaceThe intuitive design allows users to streamline the testing process without the need for multiple devices.

On-Site Calibration Convenience:

During field testing of current transformers, there is no need to carry heavy standard current transformers, current boosters, load boxes, and other equipment. The product can be calibrated simply with wiring and operation, effectively reducing the workload and improving work efficiency, especially suitable for on-site work.

High-Precision Measurement:

The product is capable ofPlease provide the Chinese content to be translated..Certainly.Measure the phase difference and angle difference; allow for greater error in phase difference.±0.05%Large angle difference, allowable error±2minEnsured the accuracy of the test results. Additionally, the product is capable of0.2SThe measurement of current transformers, with a wide range of ratio measurement, is suitable for various scenarios.

Advanced Testing Methods:

Based on variable frequency testingCT/PTVoltage-Current Characteristic Curve10%Error curve, capable of handling high breakover voltages even with small output voltage and current.CTTesting to ensure safety and effectiveness.

Automatically provides key parameters:

The product can automatically calculate and provide multiple key parameters of the transformer, such as the knee voltage./Current, error curves, accuracy limit coefficients, and more, eliminate the cumbersome process of manual calculation, enhancing testing efficiency.

Meets Multiple Standards:

Our products meet multiple domestic and international transformer standards and can automatically select the corresponding test standards based on transformer type and grade, ensuring compliance and accuracy of testing.

The testing process is straightforward.

The product's user-friendly interface design simplifies the operation process, allowing multiple tests to be completed with a single click. Additionally, beyond load testing,CTAll other test projects use the same wiring method, simplifying the wiring process.

Dynamic Graphics Interface

The product's operational interface features Chinese dynamic graphic design, allowing users to perform wiring and parameter settings without consulting the manual. The interface is intuitive and easy to understand, making it user-friendly and quick to master.

Visible under sunlightLCDScreen:

Product Configuration5.7No Chinese content provided.LCDThe screen is clear and visible even in sunlight, ensuring users can operate normally in various environments.

Rotary Optical Mouse Operation:

The rotating optoelectric mouse offers a simple and quick operation, making it easy for users, even those unfamiliar with complex operations, to master.

With Built-in Printer &UInterface Disk:

Panel features an integrated printer for direct printing of test reports. Additionally, test results can be accessedUPanduotong, the program can also be exported.UThe system has been upgraded for easier data preservation and equipment maintenance.

High-capacity data storage and backend analysis software:

Products can store up to1000The group has tested the data, ensuring it is not lost after power failure. Additionally, it is equipped with backend analysis software, facilitating users in saving, converting, analyzing, and evaluating test reports.

Portable Convenience:

The product design is compact, weighing less than9KgEasily portable, it's perfectly suited for on-site testing and mobile office environments.

In summary, the Transformer Comprehensive Tester stands out due to its...All.SurfaceFeatures, convenient on-site verification, high-precision measurement, advanced testing methods, compliance with multiple standards, simple testing process, intuitive operation interface, sunlight-readableLCDScreen, simple operation, built-in printer, andUThe combination of interface porting, large-capacity data storage, and backend analysis software, along with portability, offers users an efficient, accurate, and convenient solution for transformer testing.
