Battery Charger Tester

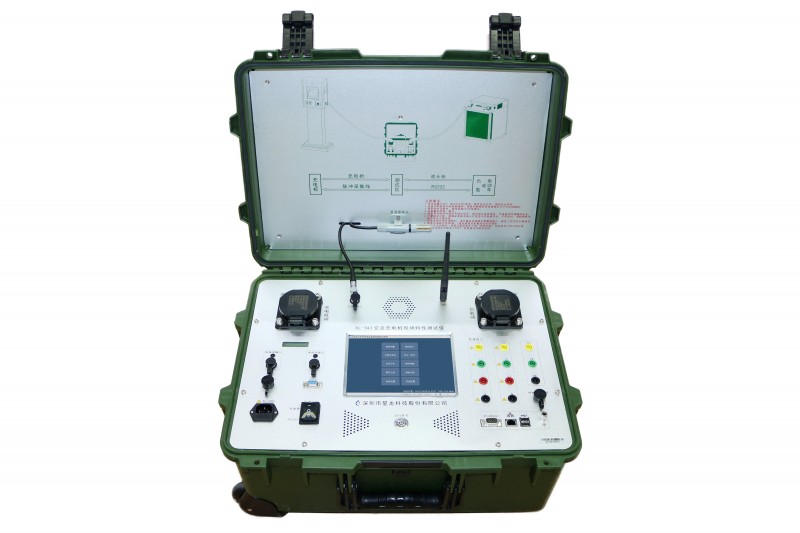

The AC Charging Station Comprehensive Tester is a powerful testing device, primarily used for testing AC charging stations.All.SurfaceAndNo Chinese content provided, please provide the news content for translation..Certainly.Our product's test. Its main features include, but are not limited to:

Modular Design: Equipment Utilizes6UStandard modular design, compact structure, comes with a portable case for easy on-site testing by users.

Multi-functional Integration: The system integrates interoperability testing for AC charging stations and electrical energy metering calibration, enabling the completion of multiple testing tasks in one go, thereby enhancing testing efficiency.

Standard Charging Gun Connector: Equipped with one at both the front and rear of the device.63AStandard specification charging gun socketGB/T 20234.2-2015Compliance with standard specifications for ease of connection and testing.

Vehicle Interface Circuit Simulation: Equipped with an integrated vehicle interface circuit simulation module, capable of simulating AC charging control guide circuits for electric vehicles.R2、R3The equivalent resistance simulation feature allows for testing with just a plug-in gun, streamlining the testing process.

High-Precision Measurement: Built-in charging pile electric energy metering verification module, with voltage and current measurement accuracy reaching0.05%The accuracy of electrical energy measurement is also0.05%Ensured the accuracy of the test results.

Automated Testing and Data Preservation: With integrated testing software, data can be automatically collected and test results saved, reducing human intervention and enhancing the objectivity of testing.

Multiple Measurement Detection Methods: The equipment is capable of load and actual vehicle measurement detection, allowing for the selection of the appropriate testing method based on actual needs.

Fault Simulation Feature: Equipment withL1、L2、L3、N、PE、CP、CCEach circuit's on/off switchCPGround Fault Switch, capable of simulating AC charging interface circuit failures in vehicles, used for testing the response of charging stations under fault conditions.

External Data Collection and Communication Interface: With4mmStandard parameter collection interface, enabling external collection functionality for various signals. Meanwhile, configurationDVI、RJ45、USBWait for communication interfaces for easy data exchange with other devices or systems.

Harmonic Detection and Load Simulation: Equipped with voltage and current harmonic detection capabilities, capable of measuring0-50The equipment is also equipped with an external load interface, capable of connecting AC loads to simulate the actual working status of a charging station.

Automated Test Report Generation: The equipment features automated testing capabilities for detection items such as interoperability and electrical energy metering verification, following the established procedures. Upon completion of the tests, an automated test report is generated for user convenience in reviewing and analyzing the results.

Clock Synchronization Function: The equipment is equipped withGPSThe time synchronization feature meets the requirements for the verification of clock indication errors, ensuring the accuracy and reliability of test results.

In summary, the Comprehensive Charging Pile Tester stands out with its...No Chinese content provided, so the translation remains unchanged: "All".SurfaceOur testing functions, high-precision measurement capabilities, and user-friendly operation provide robust support for testing charging stations.

The AC Charging Station Comprehensive Tester is a powerful testing device, primarily used for comprehensive and precise testing of AC charging stations. Its main functions include, but are not limited to:

Modular Design: The equipment features a 6U standard modular design, offering a compact structure and comes with a portable case for easy transport to the site for testing.

Multifunctional Integration: Featuring interoperability testing for AC charging stations and electrical energy meter calibration, this system can complete multiple testing tasks in one go, enhancing testing efficiency.

Standard Charging Gun Plugs: The device is equipped with standard charging gun plugs of 63A specification at both the front and rear, meeting the requirements of GB/T 20234.2-2015 standard for easy connection and testing.

Vehicle Interface Circuit Simulation: Equipped with an internal vehicle interface circuit simulation module, it can simulate the AC charging control guide circuit for electric vehicles, featuring R2, R3 equivalent resistance simulation capabilities. This allows for plug-and-test functionality, simplifying the testing process.

High-Precision Measurement: The built-in charging桩 power metering verification module achieves a voltage and current measurement accuracy of 0.05%, with the same power measurement accuracy of 0.05%, ensuring the accuracy of the test results.

Automated Testing and Data Preservation: Equipped with integrated test software, it can automatically collect data and save test results, reducing human intervention and enhancing the objectivity of testing.

Multiple Measurement and Testing Methods: The equipment is capable of load and actual vehicle measurement and testing methods, allowing for the selection of the appropriate testing approach based on actual needs.

Fault Simulation Function: The equipment is equipped with circuit breakers for each loop of L1, L2, L3, N, PE, CP, and CC, as well as a CP grounding short-circuit switch, enabling the simulation of AC charging interface circuit faults in vehicles. This is used to test the response of charging stations under fault conditions.

External Data Acquisition and Communication Interface: Equipped with a 4mm standard parameter acquisition interface, it enables external acquisition of various signals. It is also configured with communication interfaces such as DVI, RJ45, and USB, facilitating data exchange with other devices or systems.

Harmonic Detection and Load Simulation: Equipped with voltage and current harmonic detection capabilities, it can measure harmonic content from 0 to 50 times. Additionally, the device features an external load interface, enabling the connection of AC loads to simulate the actual operating state of charging stations.

Automatic Test Report Generation: The equipment features automatic testing capabilities for inter-operability, electrical energy metering verification, and other inspection items according to the established process. Upon completion of the test, an automatic test report is generated for user convenience in reviewing and analyzing the test results.

The Time Synchronization Feature: The equipment is equipped with GPS time synchronization, which meets the requirements for the calibration of clock indication errors, ensuring the accuracy and reliability of test results.

In summary, the AC Charging Station Comprehensive Tester offers robust support for AC charging station testing with its comprehensive testing functions, high-precision measurement capabilities, and user-friendly operation.
