Charging Station Inspection

Charging Station Comprehensive Testing InstrumentPrimary Features

1. Battery Charger Communication Comprehensive TesterAdopted6UStandard modular design, comes with a portable case for easy on-site testing; all measurement modules are built-in, offering convenient and quick use.

2.The integrated charging station for equipment integration features interoperability testing and multifunctional electrical energy measurement verification.

3.Front and rear panels are equipped with63AStandard specification charging gun socket, socket pin definitions meetGB/T 20234.2-2015The front panel outlet is used for plugging into the AC charging station, while the rear panel outlet is used during the actual vehicle and pole testing.

4.The equipment integrates vehicle interface circuit simulation modules, high-speed high-precision waveform acquisition modules, charging pile metering and verification modules, and embedded controllers, allowing for plug-and-test functionality, thus avoiding the complexities of connecting multiple devices.

5. Battery Charging Pile Comprehensive Testing InstrumentBuilt-in charging pile electric energy metering verification module, voltage and current measurement accuracy0.05%Precision in Electric Power Measurement0.05%Equipped with pulse input/output interfaces, this device is designed for pulse output detection of charging桩 and for the metrological verification of its own equipment. High and low frequency pulse outputs can be set as needed during testing.

6.The equipment comes with integrated test software, which allows communication and parameter settings with AC power modules, loads, and other devices, automatically collects data, and saves test results.

7.The equipment supports both load and actual vehicle measurement and testing methods, allowing for measurement tests to be conducted using various loading methods.

8.Equipment equipped withL1、L2、L3、N、PE、CP、CCAll circuit breakers and switches are functioning properly.CPGround Fault Circuit Interrupter,The company has introduced a circuit fault simulation feature for vehicle-to-vehicle charging interface.

9.Please provide the Chinese content you would like translated into American English.4mmThe standard parameter collection interface enables external collection functions for various signals.

10.Please provide the Chinese content to be translated.1SecondUPSDeferred Storage Feature(In the event of a power voltage failure, ensure sufficient power to store residual data, guaranteeing the safety of the operating system.)ConfigurationDVI、RJ45、USBWaiting for communication interface;

11.The equipment can simulate the AC charging control guide circuit for electric vehicles.R2、R3Equivalent Resistance Simulation Feature

12. Integrated Charging Pile Communication Charger Test InstrumentEquipped with an external load interface, capable of connecting to AC loads, it achieves current output for charging stations, fulfilling the interoperability requirements of AC charging stations and the load requirements for electrical energy metering.

13.The equipment is equipped with voltage and current harmonic detection capabilities, capable of measuring0-50Subharmonic content.

14.Equipment can simulate havingS2Please provide the Chinese content to be translated.S2Two vehicle status functionalities

15.The equipment features automated testing functions for interoperability, electrical energy metering calibration, and other detection items according to the established process. After testing is completed, test reports are automatically generated, with test results clearly visible.

16.The equipment is built with an integrated load module, utilizing new power consumption components with high power density and no red-hot phenomena. All electrical heating elements comply.ULSafety specifications, load by constant resistance loading method, rated voltageAC230V No Chinese content provided.1-40A Adjustable;

17.The equipment features a load expansion interface, enabling load expansion to meet three-phase requirements.63ACommunication Requirements for Electric Charging Station Testing

18.Equipment equippedGPSThe time synchronization function meets the requirements for the verification of clock indication errors.

20. Battery Charging Station Comprehensive TesterThe test software features a selection interface for test projects, enabling both individual project automated testing and continuous automated testing of all projects. Upon completion, the test data is automatically saved, and a test report is generated.

Technical Specifications

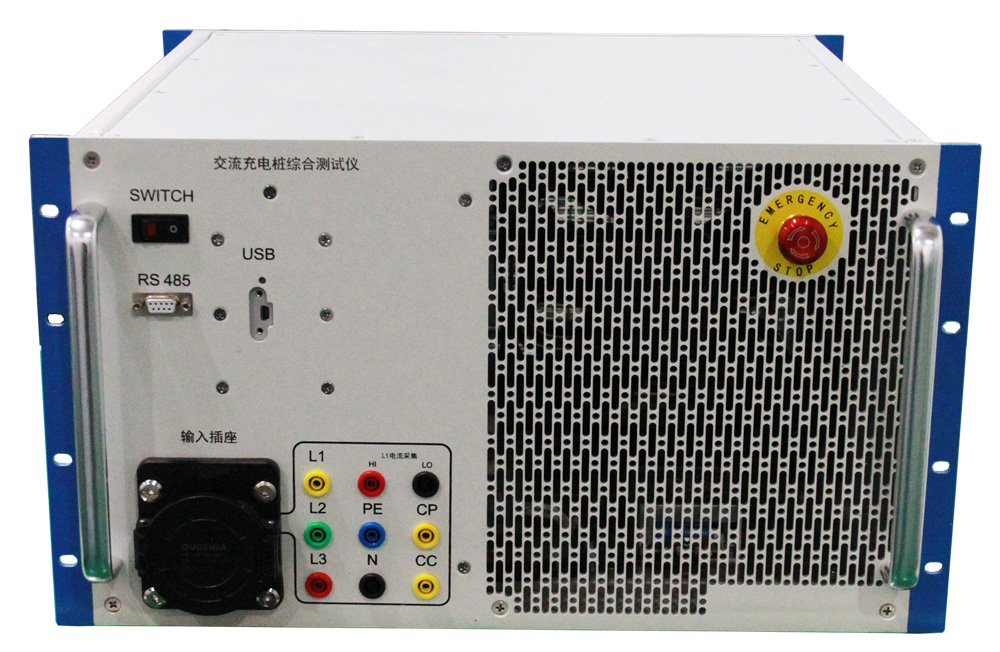

Product Model Charge Station Comprehensive TesterED1311

Test Voltage Range AC O-48OV

Test Current Range 0-70A

High-Speed, High-Precision Data Acquisition Module 16Insulating Channel

Equivalent Resistance Adjustment Range 100s2-29992Adjust stepping1QResistor Precision0.2%

R3Equivalent Resistance Adjustment Range 1000Q2-5000Adjust stepping19Resistor Accuracy0.2%

Current Accuracy of Measurement Module 0.05%RD

Measurement Module Voltage Accuracy No Chinese content provided, please provide the text to be translated.0.05%RD

Metering Module Electrical Energy Accuracy Main0.05%RD(0-48oV,1-70A)

Voltage and Current Ripple Measurement Accuracy ±0.5%*RG

Clock Accuracy 210-7

Pulse Input Frequency<500HzLevel:0～5v

Expanded Load Interface 63A

Dielectric Strength 1000VThe above

Cooling Method Forced-air cooling

Work Power AC220V15%，50Hz

Mean Time Between Failures (MTBF) MTBF251000 H

Workplace Temperature -20℃~+50℃

Dimensions and Weight 483*480*264mm 20kg
