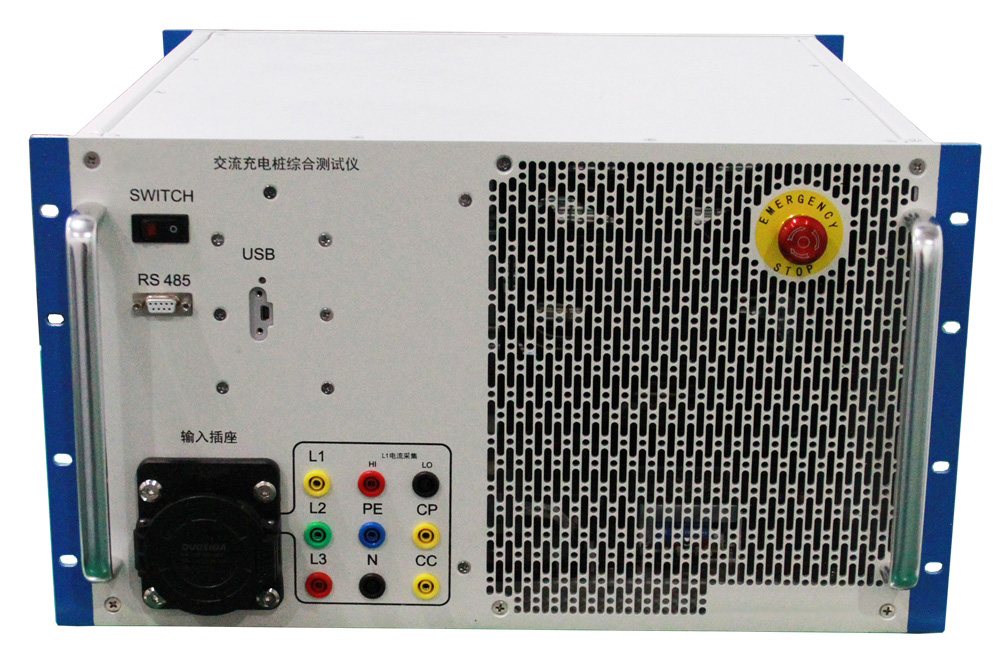

Charge Station Calibration Device

The AC Charging Station Comprehensive Tester is a powerful testing device, primarily used for testing AC charging stations.Full.SurfaceAndPlease provide the Chinese content that needs to be translated into American English..Certainly.Our testing. Its main functions include but are not limited to:

Modular Design: Equipment Utilizes6UStandard modular design, compact structure, comes with a portable case for easy transport to the testing site.

Multi-functional Integration: The system integrates interoperability testing for charging stations, electricity metering verification, and more, allowing for multiple testing tasks to be completed in one go, enhancing testing efficiency.

Standard Charging Gun Plug: Equipped with one at both the front and back of the device.63AStandard specification charging gun socketGB/T 20234.2-2015Standards-compliant for easy connection and testing.

Vehicle Interface Circuit Simulation: Equipped with an integrated vehicle interface circuit simulation module, capable of simulating AC charging control guidance circuits for electric vehicles.R2、R3The equivalent resistance simulation function allows for immediate testing upon inserting the gun, streamlining the testing process.

High-Precision Measurement: Integrated with an electric power metering module for charging stations, achieving precise voltage and current measurements.0.05%The accuracy of electrical energy measurement is also0.05%Ensured the accuracy of the test results.

Automated Testing and Data Preservation: Equipped with integrated test software, it can automatically collect data and save test results, reducing human intervention and enhancing the objectivity of testing.

Multiple Measurement Detection Methods: The equipment supports both load and actual vehicle measurement detection methods, allowing for the selection of the appropriate testing method based on actual needs.

Fault Simulation Function: Equipped withL1、L2、L3、N、PE、CP、CCBreakers for circuit openings and closingsCPGround Fault Switch, capable of simulating AC charging interface circuit failures in vehicles, used for testing the response of charging stations under fault conditions.

External Data Acquisition and Communication Interface: With4mmStandard parameter collection interface, enabling external collection functionality for various signals. Meanwhile, configuredDVI、RJ45、USBThe communication interface facilitates data exchange with other devices or systems.

Harmonic Detection and Load Simulation: With voltage and current harmonic detection capabilities, capable of measuring0-50The device features harmonic content of the second order. Additionally, it is equipped with an external load interface, allowing for the connection of AC loads to simulate the actual working status of a charging station.

Automatic Test Report Generation: The equipment features automatic testing capabilities for inter-operability, electrical energy metering verification, and other inspection items according to the established procedures. Upon completion of the test, an automatic test report is generated for user convenience in reviewing and analyzing the test results.

Clock Synchronization Function: Equipment equipped withGPSThe time synchronization feature meets the requirements for the verification of clock indication errors, ensuring the accuracy and reliability of test results.

In summary, the Comprehensive Charging Station Test Instrument has proven itself to be...All.Please provide the Chinese content to be translated.Our testing functions, high-precision measurement capabilities, and user-friendly operation provide robust support for the testing of charging stations.
