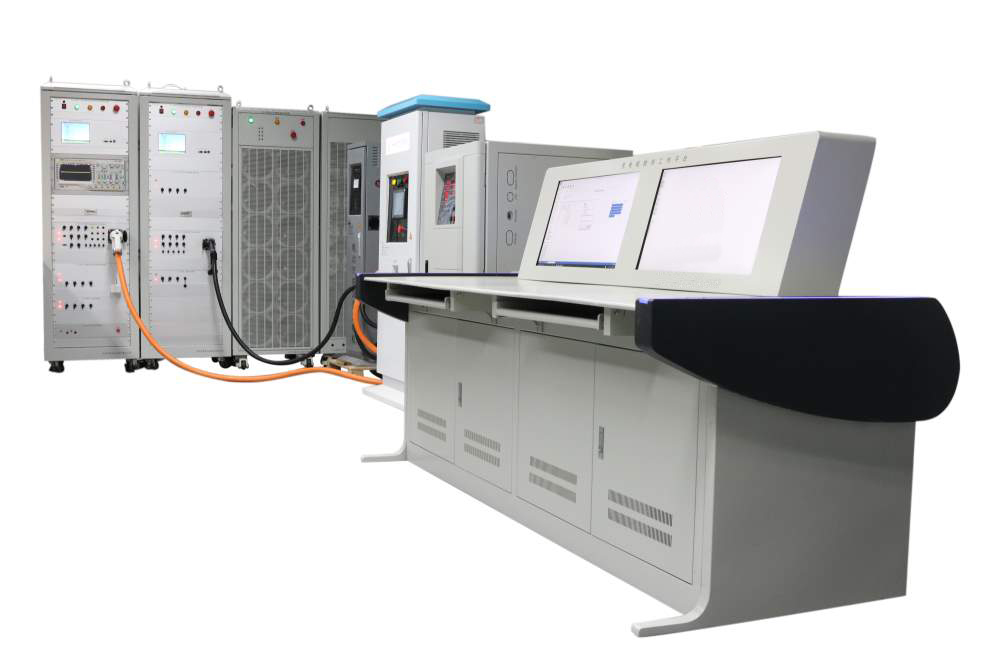

Comprehensive Charging Station Testing

Battery Charger Communication Comprehensive TesterPrimary Features

1. Battery Charging Station Comprehensive TesterAdopted6UStandard modular design with portable carrying case for convenient on-site testing; all measurement modules are built-in, offering easy and quick operation.

2.The integrated device for charging桩 interoperability testing and electrical energy metering calibration combines multiple functions.

3.Each device features a front and rear panel.63AStandard specification charging gun socket, plug pin definitions meetGB/T 20234.2-2015According to the standard specifications, the front panel socket is used for connecting to the AC charging station, while the rear panel socket is utilized during actual vehicle and station testing.

4.The equipment integrates vehicle interface circuit simulation modules, high-speed high-precision waveform acquisition modules, charging桩 measurement and verification modules, and embedded controllers, enabling plug-and-test functionality to avoid the complexities of connecting multiple devices.

5. Communication Charging Pile Comprehensive TesterBuilt-in EV charger power metering calibration module, voltage and current measurement accuracy0.05%Precision in Electric Power Measurement0.05%Equipped with pulse input and output interfaces, this device is used for pulse output testing of the 待测 charging桩 and for metrological verification of the equipment itself. During testing, high and low-frequency pulse outputs can be set as needed.

6.The equipment features integrated test software that can communicate and configure parameters with AC power modules, loads, and other devices, automatically collect data, and save test results.

7.The equipment allows for both load and actual vehicle measurement detection methods, enabling measurement tests to be conducted using different loading modes.

8.Equipment equippedL1、L2、L3、N、PE、CP、CCEach circuit's on/off switchCPGround Fault Circuit Interrupter,Simulates circuit failure of vehicle-to-vehicle charging interface.

9.Please provide the Chinese content to be translated.4mmStandard parameter collection interface, enabling external collection functionality for various signals.

10.Please provide the Chinese content to be translated.1SecondUPSDelay Storage Feature(In the event of a power voltage fault, ample power is supplied to store residual data, ensuring the safety of the operating system.)ConfigurationDVI、RJ45、USBPending communication interface;

11.The equipment can simulate the AC charging control guidance circuit of electric vehicles.R2、R3Equivalent Resistance Simulation Function

12. Battery Charging Pile Comprehensive Testing InstrumentEquipped with an external load interface, capable of connecting to AC loads, it achieves current output for charging stations, meeting the interoperability requirements of AC charging stations and the load requirements for electricity metering.

13.The equipment features voltage and current harmonic detection capabilities, enabling measurement.0-50Harmonic content.

14.Equipment can simulate possessingS2And withoutS2Two vehicle status functionalities

15.The equipment features automatic testing functions for inter-operability and electrical energy metering verification, among other detection items, following the established procedures. Upon completion of the tests, test reports are automatically generated, with the results clearly visible.

16.The device is equipped with an integrated load module, utilizing a new type of power consumption component, featuring high power density and no red-hot phenomena. All electrical heating elements comply.ULSafety specifications, load using constant resistance loading method, rated voltageAC230V No Chinese content provided.1-40A Adjustable;

17.The equipment features a load expansion interface, enabling load expansion to meet three-phase requirements.63AInternal communication for charging桩 testing requirements.

18.Equipment is readyGPSThe time synchronization function meets the verification requirements for the accuracy of the clock's indication.

20. Battery Charging Pile Comprehensive Testing InstrumentThe test software features a selection interface for test projects, enabling both individual project automatic testing and continuous automatic testing of all projects. Upon completion, the test data is automatically saved, and a test report is generated.

Technical specifications

Product Model Comprehensive Charging Station TesterED1311

Test Voltage Range AC O-48OV

Test Current Range 0-70A

High-Speed, High-Precision Data Acquisition Module 16Insulated Channel

Equivalent Resistance Adjustment Range 100s2-29992Adjust stepping1QResistor Precision0.2%

R3Equivalent Resistance Adjustment Range 1000Q2-5000Adjust step increment19Resistance Accuracy0.2%

Measurement Module Current Accuracy 0.05%RD

Metering Module Voltage Accuracy No Chinese content provided.0.05%RD

Metering Module Electrical Energy Accuracy Please provide the Chinese content that needs to be translated into American English.0.05%RD(0-48oV,1-70A)

Voltage and Current Ripple Measurement Accuracy ±0.5%*RG

Clock Accuracy 210-7

Pulse Input Frequency<500HzLevel:0～5v

External Load Interface 63A

Dielectric Voltage Resistance 1000VAbove

Cooling Method Forced air-cooled

Operational Power Supply AC220V15%，50Hz

Mean Time Between Failures (MTBF) MTBF251000 H

Office Environment Temperature -20℃~+50℃

Dimensions and Weight 483*480*264mm 20kg
