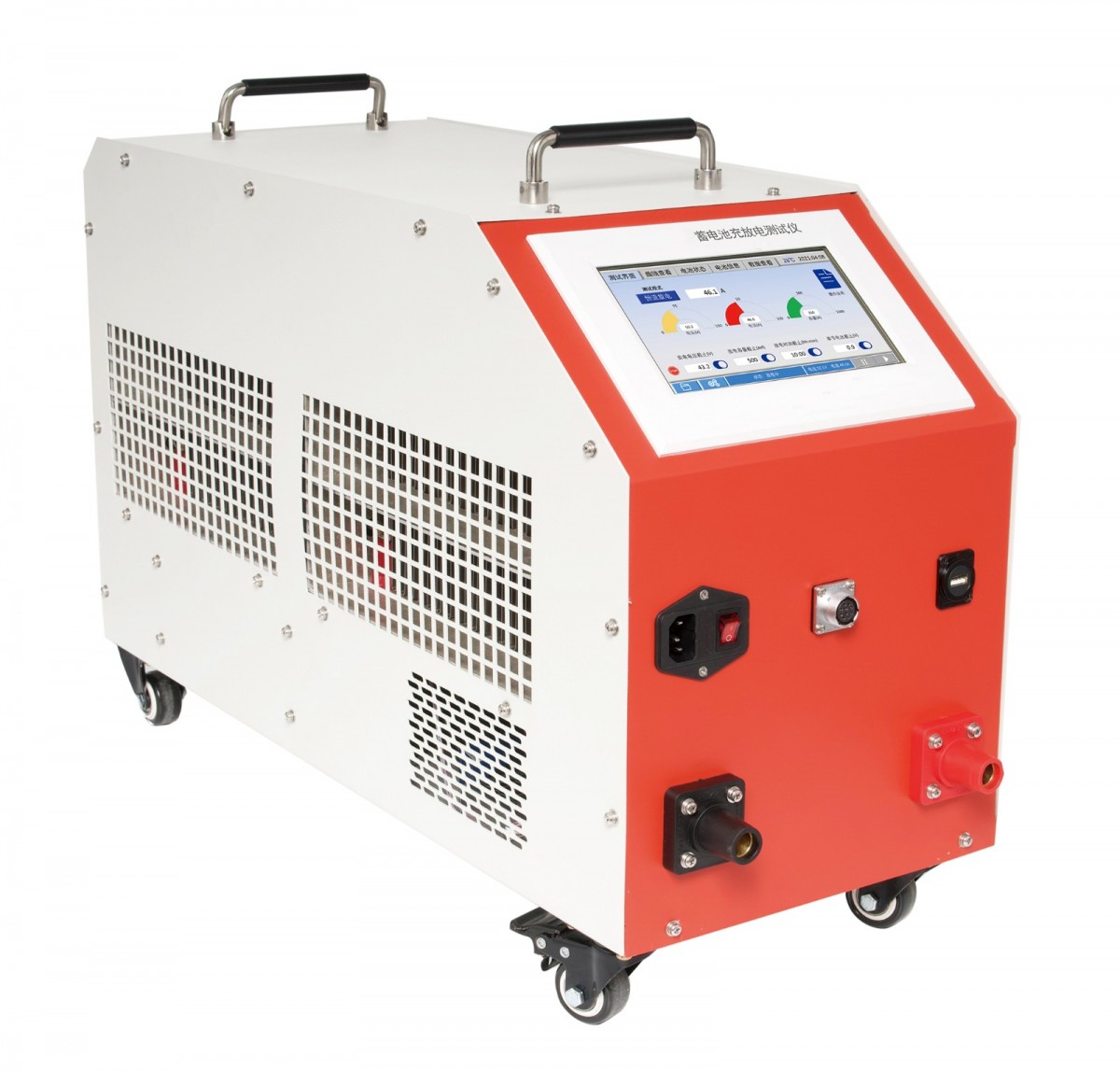

Battery Charging and Discharging Tester

Product Overview

 The Battery Charge-Discharge Tester is an integrated testing device that combines constant current discharge, intelligent charging, and charge-discharge cycles for batteries. It is used for regular battery group inspections and for revitalizing aged batteries. Suitable for telecommunications, base stations, and power departments, it is also applicable for testing and cycling activation of traction battery packs for various types of forklifts, golf carts, and trains.

Product Features

The product utilizes a custom nickel-chromium alloy resistor as the load source. Low resistance; enables discharge with greater current, and the custom appearance achieves higher power density. High precision; the accuracy can be controlled within ±0.001Within Ω, it acts as a load source to stabilize the discharge process. Low temperature coefficient; minimally affected by temperature coefficient, with strong environmental adaptability. Resistant to current surges; has strong current resistance, can quickly respond to large current surges, and ensures a more reliable discharge process.

Intelligent Chip Control. The discharge process is smartly controlled, automatically adjusting with the decrease in battery voltage to ensure constant current discharge. Real-time collection of individual battery voltage is displayed in a curve format, facilitating evaluation and analysis. Simultaneously, intelligent analysis of the battery voltage status is conducted, along with an assessment. The system calculates the conversion between discharge capacity and discharge hour rate, achieving an optimal assessment effect for battery state of charge. Multiple threshold values can be set, with intelligent judgment.

l7Inch Ultra-Wide LCD Touchscreen: Featuring a large-sized touchscreen with high resolution1024x600可直接on-screen click operations, simple and clear. Strong anti-interference capability.

l AdoptedLORAWireless Single Cell Monitoring Module (Optional): Compatible2V/6V/12VMonolithic Voltage Monitoring. Each wireless monitoring module can monitor simultaneously.6An individual unit, compared to monitoring the voltage of one unit per module, requires a significantly fewer number of modules to be configured.1/6（48VN/A4A monitoring module has been added, simplifying the wiring operations for the wireless module.

Automatic Discharge Current Calculation Function: Built-in hourly discharge coefficients, which can automatically calculate the required discharge current to be set based on the nominal capacity of the battery being tested and the desired discharge rate.

During the charging and discharging process of the battery, real-time detection and display of individual cell voltages: The changes in the bar chart of individual cell voltages are presented on the main unit screen, supporting data table display. It can also automatically present cells with high and low voltages in real-time, helping you quickly analyze the trend of individual cell changes.

View Charge-Discharge Curve: Allows you to review the voltage and current curves of the battery pack during the discharge process.

Data Migration: Host ConfigurationUData storage and analysis software can parse data and support report generation.
