Series Resonant Voltage Tester

Series Resonant Test Device for Power Cables, Power Transformers, and Generator Sets (Hydroelectric or Thermal Generators) Motor assembly, series resonance of motor, series resonance of switchgear.GISTransfer and preventive testing of large capacity, high-voltage capacitive test pieces, such as switches.鄂电电力 can manufacture according to customer requirements.10KV、35KV、110KV、220KV、500KVSeries resonance test device for voltage grades.

Erdian Electric Power Co. is a manufacturer of series resonance devices.10Year of Service829Our company is a stable supplier to residential power units and related institutions, including clients like Sinopec, China Railway Construction, Datang, and others. Our series resonance products have won multiple national technical patents and are certified by various provincial metrology technology research institutes. We can customize products according to customer specifications.

Series Resonant Device (in English: Series Resonant Device)Brief Introduction for TPXB Series Resonant System

Series Resonant Device Principle: The series resonant test utilizes the principle of series resonance. It employs an excitation transformer to energize the series resonant circuit, adjusts the output frequency of the frequency converter, and makes the inductanceLNo Chinese content provided.CSeries resonance, the resonance voltage is the voltage applied to the test sample.

TPXBThe series resonant test device, the frequency conversion series resonant device is mainly composed of a frequency conversion controller, excitation transformer, high-voltage reactor, high-voltage voltage divider, etc. The frequency conversion controller is further divided into two main categories.20KWAbove is the console version.20KWBelow is the portable box; it consists of a controller and a filter. The variable frequency controller's primary function is to keep both the amplitude and frequency constant.380VOr200VIndustrial frequency sine AC is converted into a sine wave with adjustable amplitude and frequency. It also provides power for the entire set of equipment. The excitation transformer's role is to boost the voltage from the frequency conversion power supply to the appropriate test voltage. High-voltage reactorLIt is an important component of the resonant circuit, when the power frequency equals1/(2π√LCX)At the time, it was in relation to the sample.CXA series resonance has occurred.

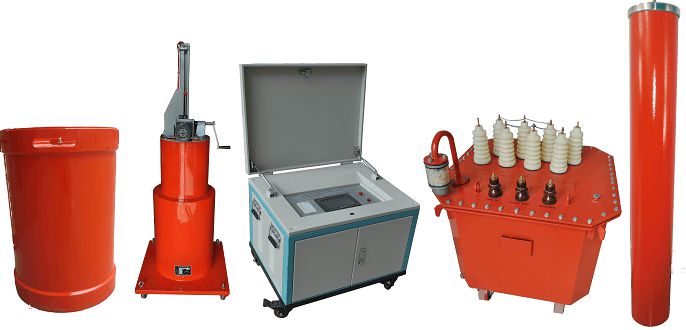

Series Resonant Configuration: The series resonant test setup includes: variable frequency power supply, excitation transformer, reactor, voltage divider, capacitor, and control cabinet.

Resonant Test Subject: The variable frequency series resonant test device is suitable for10KV、35KV、110KV、220KV、500KVPolyethylene power cable AC withstand voltage test. The harmonic resonance test device is suitable for60KV、220KV，500KVGISDielectric Withstand Testing. The harmonic resonance test device is suitable for large transformers, power generator unit power frequency withstand tests; induction withstand tests for electric transformers; ground resistance measurement.

Resonant Application Fields: The Variable Frequency Resonant Test Device is widely used in industries such as power, metallurgy, petroleum, and chemical engineering. The Series Resonant Test Device is suitable for the handover and preventive tests of capacitive test pieces with large capacity and high voltage.

Alias

Series Resonant Assembly, Variable Frequency Series Resonant, Series Resonant Test Equipment, Series Resonant Test Apparatus, Series Resonant Principle, Series Resonant Applications, Series Resonant System

Feature

1High stability and reliability. The series resonant system uses imported power components as the core of power conversion, with stable voltage and frequency outputs. The electromagnetic compatibility design is reasonable, and the protection functions are comprehensive. After multiple high-voltage direct-to-ground short-circuit tests, the system remains intact, and it also exhibits strong overload capability.

2Powerful Automatic Tuning Function. During the automatic tuning of the series resonance system, from30HzPlease provide the Chinese content that needs to be translated into American English.300HzAutomatic sweep display, with a sweep curve graphically shown for users to directly observe the system tuning process; upon completion of the sweep, the system, based on the preliminary resonance frequency points found during the sweep, adjusts at ±5HzNo Chinese content provided.0.01HzFrequency fine scan for resolutionPlease provide the Chinese content to be translated..No Chinese content provided. Please provide the text to be translated.Lock in Resonant Frequencies

3Our system supports multiple testing modes."Auto-tuning + Manual Pressure Regulation"，"Auto-Tuning + Auto-Pressurizing"，"Manual Tuning + Manual Pressure Adjustment"待试验模式，recommend using"Auto-tuning + Manual pressure adjustment"The model allows for rapid identification of resonance points while enabling manual voltage control during the testing process, enhancing safety.

4The human-machine interaction interface of the series resonance system is user-friendly. Test parameter settings, control, and results are displayed on the same screen, offering a clear and intuitive view, with features such as automatic timing and operation prompts. The system features full touch screen operation and display, and is equipped with test data saving and query functions.

5Enhanced protective features. Series resonant circuit equipped with zero-point protection.(The system is prohibited from starting if the voltage output control knob is not in the zero position.)Overvoltage protection, overcurrent protection, and flashover protection features ensure system reliability.
