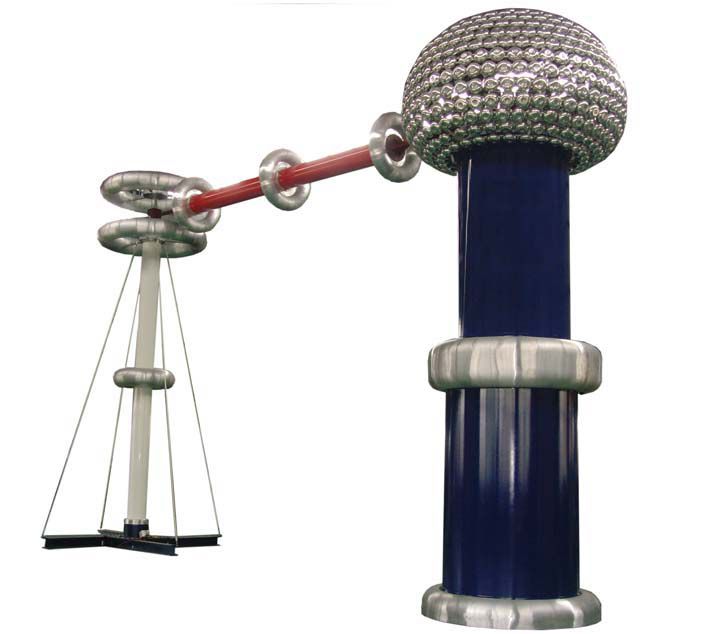

Series Resonant Voltage Test

Alias

Series Resonant Assembly, Variable Frequency Series Resonant, Series Resonant Test Equipment, Series Resonant Test Device, Series Resonant Principle, Series Resonant Applications, Series Resonant System

Feature

1High stability and reliability. The series resonance system utilizes imported power components as the core of power conversion, with stable voltage and frequency outputs. The electromagnetic compatibility design is rational, the protection functions are comprehensive, and after multiple high-voltage direct-to-ground short-circuit tests, the system remains intact. Additionally, the system also boasts strong overload capacity.

2The automatic tuning feature is powerful. During the automatic tuning of the series resonant system, from...30HzPlease provide the Chinese content that needs to be translated into American English.300HzAutomatic sweeping, displaying the sweep curve, allowing users to visually observe the system tuning process; upon completion of the sweep, the system identifies resonance frequency points based on the preliminary findings from the sweep, within ±5HzWithin scope0.01HzFrequency fine scan for resolutionNo Chinese content provided, nothing to translate..Certainly.Lock in Resonant Frequencies

3The system supports multiple testing modes."Auto-tuning + Manual Pressure Adjustment"，"Auto-Tuning + Auto-Pressurizing"，"Manual Tuning + Manual Pressure Adjustment"Please use the test mode."Auto-Tuning + Manual Pressure Adjustment"The model allows for rapid identification of resonant points while enabling manual voltage control over the testing process, enhancing safety.

4The human-machine interaction interface of the series resonance system is user-friendly. Test parameter settings, control, and results are displayed on the same screen, providing a clear and intuitive view. It also features automatic timing and operation prompts. The system operates and displays through a full-touch screen, with capabilities for saving and querying test data.

5Enhanced protection features. Series resonance incorporates zero-point protection.(The system is prohibited from starting if the voltage output control knob is not in the zero position.)Overvoltage protection, overcurrent protection, and flashover protection functions ensure the system's reliability.
