Series Resonant Voltage Test Device

Series Resonant Voltage Test Equipment Suitable for Series Resonance of Power Cables, Series Resonance of Power Transformers, and Generator Sets (Hydroelectric or Thermal Generators) Motor assembly, motor series resonance, switchgear series resonance,GISHandover and preventive testing of large-capacity, high-voltage capacitive test samples.鄂电电力 can manufacture according to customer requirements.10KV、35KV、110KV、220KV、500KVSeries Resonant Test Device for Voltage Grades

Erdian Electric Power Co. is a manufacturer of series resonance devices.10Year of Service829Our company is a stable supplier to home power units and related agencies, including Sinopec, China Railway Construction Corporation, Datang, and other entities. Our produced series resonance has been awarded multiple national technology patents and certified by institutions such as provincial metrology technology research institutes. We offer customized solutions according to customer requirements.

Series Resonant Device English Name:Brief Introduction for TPXB Series Resonant System

Series Resonant Device Principle: The series resonant test utilizes the series resonance principle, employing an excitation transformer to stimulate the series resonant circuit. The frequency output of the variable frequency controller is adjusted to achieve the inductive resonance of the circuit.LAvailable for samplesCSeries resonance, the resonance voltage is the voltage applied to the test sample.

TPXBThe Series Resonant Test Device, the Frequency-Conversion Series Resonant Device, is mainly composed of a frequency-conversion controller, excitation transformer, high-voltage reactor, and high-voltage voltage divider, etc. The frequency-conversion controller is further divided into two major categories.20KWAbove is the console version.20KWThe following is a portable box-type unit; it consists of a controller and a filter. The variable frequency controller primarily serves to keep both the amplitude and frequency fixed.380VOr200VThe industrial frequency sine AC is converted into an adjustable sine wave with variable amplitude and frequency. It also provides power for the entire system. The excitation transformer's role is to increase the output voltage of the frequency conversion power supply to an appropriate test voltage. High-voltage inductorLIt is an important component of a resonant circuit, when the power frequency equals1/(2π√LCX)At the time, it was in relation to the sample.CXA series resonance occurred.

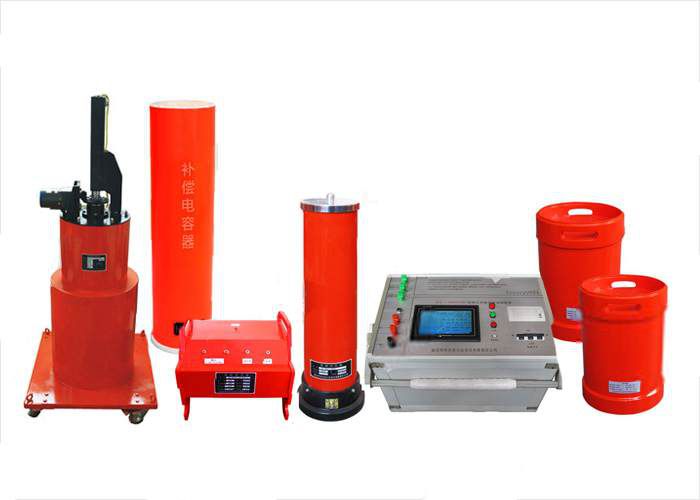

Series Resonant Configuration: The series resonant test device includes: a variable frequency source, an excitation transformer, reactors, voltage divider, capacitors, and a control cabinet.

Resonant Test Subject: Variable Frequency Series Resonant Test Device10KV、35KV、110KV、220KV、500KVPolyethylene power cable AC withstand voltage test. The harmonic resonance test device is suitable for60KV、220KV，500KVGISDielectric Withstand Testing. The Lianxi resonance test device is suitable for large transformers, generator set power frequency withstand tests; power transformer induction withstand tests; grounding resistance measurement.

Resonant Application Fields: The variable frequency resonant test device is widely used in industries such as electricity, metallurgy, petroleum, and chemicals. Series resonant test devices are suitable for交接 and preventive tests of capacitive test items with high capacity and voltage.

Alias

Series Resonant Equipment, Variable Frequency Series Resonant, Series Resonant Test Equipment, Series Resonant Test Apparatus, Series Resonant Principle, Series Resonant Applications, Series Resonant System
