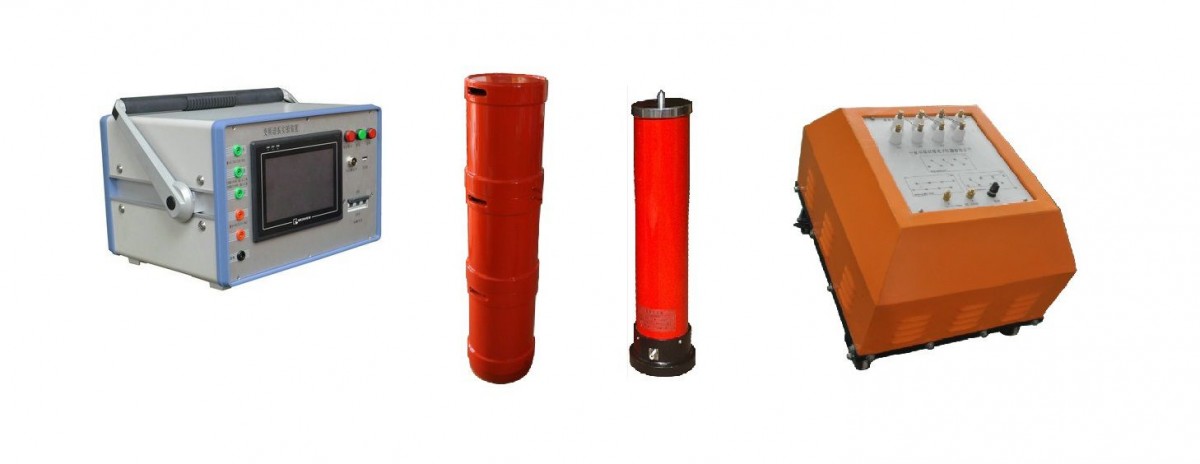

Series Resonant Voltage Device

Tuning Sensing Type Industrial Frequency Series Resonant Voltage Withstand Device

Tuning-mode Industrial Frequency Resonant Voltage Withstand DevicePower Frequency Series Resonance Test Apparatus -鄂电Electric Power Test Instrument

Power Frequency Insulation Resistance TestIndustrial Frequency Series Resonance, Industrial Frequency Voltage Resistance Tester, Industrial Frequency Voltage Resistance Test Equipment, Tuning Transformer Type Industrial Frequency Resonance Voltage Resistance Device

Erdian Electric specializes in the production of tuning inductor type power frequency resonance voltage withstand devices.A wide range of product selections, 20 years of professional electrical testing, choose Hubei Electric Power's electro-tuning inductive power frequency resonance voltage withstand device to create top-quality electrical testing products.

Primarily targeting standalone unit capacities ofAC withstand voltage test for hydropower generators of 250MW and below

Reference Standards: GB50150-2006,DL/T849.6-2004

Output Voltage Waveform Distortion Rate(THD) outperforms all existing types of communication voltage withstand equipment

Effectively prevent flashover or breakdownArc Quenching After Flashover

Large capacity output of the equipmentSmall power capacity required

Product Overview

As the power system evolves, the capacity of operating equipment continues to increase, such as thermal power generating units, with individual unit capacities exceeding...1000MW Hydropower Generator Unit Achieves Individual Capacity of Up to 800MW; For these equipment's AC power frequency withstand voltage test, using traditional testing equipment (i.e., power frequency test transformer) would result in extremely heavy transformers and voltage regulators due to the large capacity required for the test. It is also challenging to find a large-capacity test power source on-site, making field testing difficult.Extreme.Inconvenient. The power frequency resonance device has various disadvantages, including its test power capacity, equipment weight, test waveform, and investment considerations.Extreme.Significant Advantages. The device is primarily designed for individual machine capacities ofDesign and manufacturing of AC withstand voltage tests for hydropower generators of 250MW and below.
