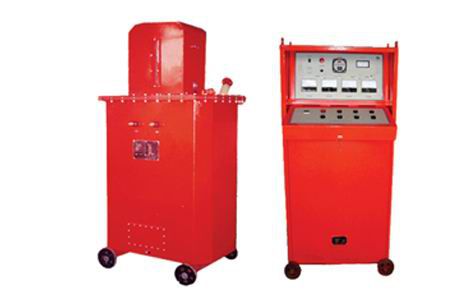

Series Resonant Voltage Stabilizer Price

Product Alias

Industrial Frequency Resonance, Industrial Frequency Series Resonance, Series Resonance, Series Resonance Transformer, Series Resonance Test Equipment, Tuning Inductor Type Industrial Frequency Resonance Voltage Proof Device

Product Features

1. Due to resonant reactive power compensation, the power of the power supply and equipment is less than 1/10 (1/Q10) of the capacity required by the tested item. The same capacity has a smaller volume and lighter weight, larger output capacity with smaller required power supply capacity, affordable price, and easy and safe operation.

2. Series resonance is essentially an AC current filter circuit, ensuring that the current passing through the test item is primarily the fundamental frequency current, with the output voltage waveform distortion rate (THD)Extreme.Small, superior to all existing types of communication pressure equipment

3. Short-circuit current after sample flashover or breakdown is less than 1/10 (1/Q) of the pre-short-circuit test current, which effectively prevents the expansion of damage to the fault point after breakdown.

4. The immediate automatic arc quenching after flashover is a process of voltage restoration to the resonant state, which takes a longer duration (in seconds) to establish a steady state. There is no concern for voltage overshoot, nor is there any danger of recovery overvoltage from microsecond or millisecond transient processes.

Technical Specifications

Technical Indicators:

　　 Output Voltage Quota 0-60kV (AC RMS) and below

　　 Output Frequency 　　 50Hz

　　 Resonant Voltage Waveform 　　 Pure Sine Wave, Waveform Distortion Rate≤1%

　　 Overtime work policy 　　 Continuous Operation at Full Power1min

　　 Quality Factor 　　 10～40

　　 Major Test Capacity 3000 kVA and below

　　 Work Power 380V±15%, 50Hz AC
