TPXBSubstation electrical equipment AC voltage withstand resonance device

Manufacturer of Series Resonant Test DevicesSubstation Electrical Equipment AC Voltage Withstand Test DevicePrice- Wuhan Electric Power Manufacturer

Series ResonanceSubstation electrical equipment, alternating current voltage resonance device, alternating current withstand voltage test device, series resonance withstand voltage device

The TPXB substation electrical equipment series resonance AC withstand voltage test device can perform the following tests: transformer AC withstand voltage test, GIS system AC withstand voltage test, SF6 switch AC withstand voltage test, CT/PT AC withstand voltage test, insulator AC withstand voltage test, busbar AC withstand voltage test, cable AC withstand voltage test, and bushing AC withstand voltage test, etc., for capacitive equipment.

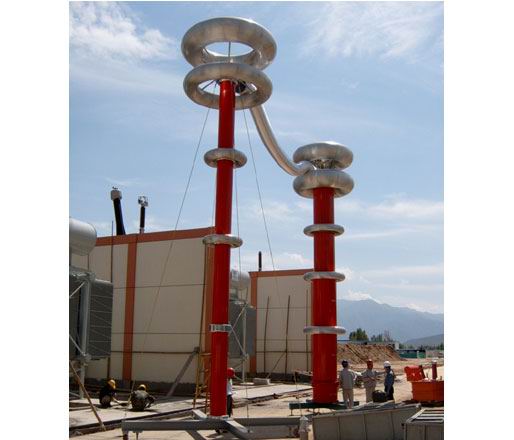

TPXB Substation Electrical Equipment AC Voltage Resonance Device

Substation electrical equipment with alternating voltage resonance device, utilizing the principle of series resonance to meet high-voltage alternating current requirements.DC Resistance Test

Standard Support:GB50150-2006，DL/T849.6-2004，DL/T596-1996

The transformer substation electrical equipment utilizes imported power components as the core for power conversion in its AC voltage resonance system.

Frequency Adjustment+ Pressure regulation, various combination test modes, strong overload capacity, comprehensive protection features

The series resonance test device includes: a variable frequency power supply, excitation transformer, reactor, voltage divider, capacitor, and control box.
