Series Resonance Test

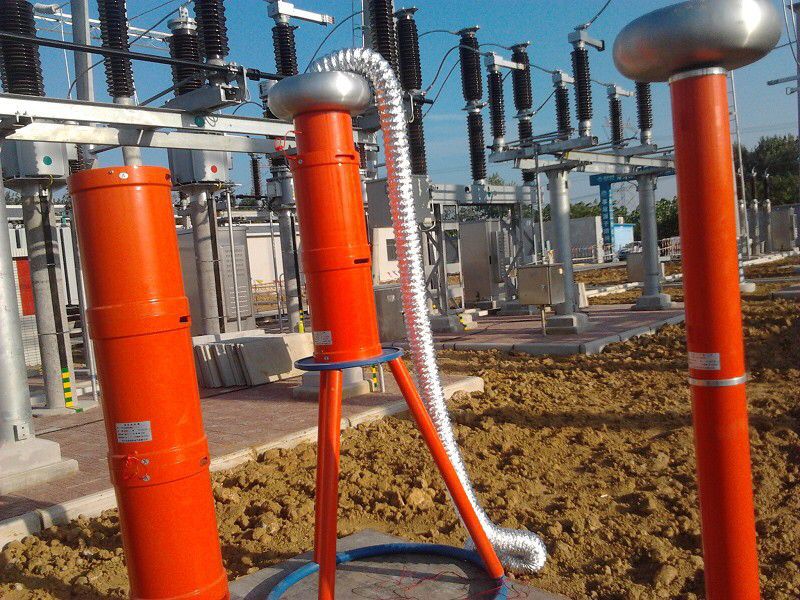

Series Resonant Test Object: Transformer,Capacitive equipment such as GIS systems, SF6 switches, CT/PT transformers, insulators, busbars, cables, and conduits.

Substation electrical equipment series resonance AC withstand voltage test: transformer AC withstand voltage test,GIS System Voltage Withstand Tests, SF6 Switch Voltage Withstand Tests, CT/PT Voltage Withstand Tests, Insulator Voltage Withstand Tests, Busbar Voltage Withstand Tests, Cable Voltage Withstand Tests, and Jacket Voltage Withstand Tests for capacitive equipment.

According toThe test procedures for the withstand voltage of electrical equipment in substation with voltage levels of 220V and below require that the corresponding AC/DC withstand test equipment must meet both high-voltage, low-current test conditions and low-voltage, high-current test conditions. It is necessary to accommodate a wide range of applications. The series resonance withstand test device is composed of a variable frequency power supply control box (console), an excitation transformer, a reactor, and a capacitor voltage divider, utilizing the series resonance principle. By connecting a rectifier silicon stack and a microammeter to the capacitor voltage divider, a DC withstand test can be completed. Due to the excellent filtering characteristics of the system after resonance, the produced DC voltage is superior to that obtained from a common test transformer rectifier. It is the ideal AC withstand test equipment for local, municipal, and county-level high-voltage test departments, as well as for power installation, maintenance, and testing engineering units.

Series Resonance

Dielectric withstand resonance devices, frequency conversion resonance, frequency conversion series resonance, series resonance, series resonance transformers, series resonance test equipment, resonance withstand voltage devices, transformer AC withstand voltage tests, substation electrical equipment AC withstand voltage resonance devices

Series Resonant Function

1. Transformers of the same voltage and capacity class feature a smaller volume and lighter weight; exhibit minimal temperature rise under rated load; are constructed with dry epoxy casting for high mechanical strength and excellent electrical insulation properties; and are aesthetically pleasing and reliable.

2. The frequency converter power supply control box features a large capacity margin; strong protective functions; excellent output waveform; good stability; various working modes for convenient operation; compatible with single-phase 220V or three-phase 380V input power sources, easy for on-site power access.

3. Flexible Configuration: Optional different types of reactors to meet various test requirements, achieving multi-functional use with high cost-performance.
