Series Resonant Test Equipment

Series Resonant Voltage Test Equipment Suitable for Series Resonance of Power Cables, Series Resonance of Power Transformers, and Generator Sets (Hydroelectric or Thermal Generators) Motor assembly, motor series resonance, switchgear series resonance,GISHandover and preventive testing of capacitive test pieces with large capacities and high voltages.鄂电电力 can manufacture according to customer requirements.10KV、35KV、110KV、220KV、500KVSeries resonant test device for voltage levels.

Erdian Electric Power Co. is a manufacturer of series resonant devices.10Year of Service829Our company is a stable supplier to domestic power units and related agencies, including Sinopec, China Railway Construction, Datang, and other organizations. Our produced series resonance has won multiple national technology patents and been certified by various provincial metrology technology research institutes and other institutions. We can offer customized solutions according to customer requirements.

Series Resonant Device English Name:Brief Introduction for TPXB Series Resonant System

Series Resonant Circuit Principle: The series resonant test utilizes the series resonant principle, employing an excitation transformer to stimulate the series resonant circuit, adjusting the output frequency of the frequency converter to regulate the circuit inductance.LWith samplesCSeries resonance, the resonant voltage is the voltage applied to the test piece.

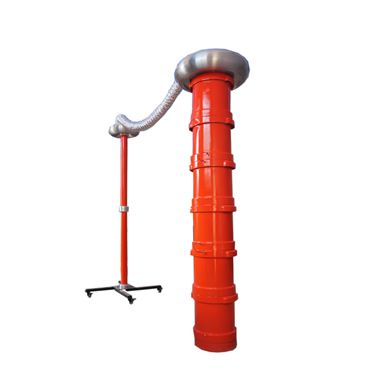

TPXBThe series resonance test device, the variable frequency series resonance device mainly consists of a variable frequency controller, excitation transformer, high-voltage reactor, high-voltage voltage divider, etc. The variable frequency controller is further divided into two major categories.20KWThe above is for console models.20KWBelow is the portable box; it consists of a controller and a filter. The variable frequency controller mainly serves to fix both the amplitude and frequency.380VOr200VThe industrial frequency sine AC is converted into an adjustable sine wave with variable amplitude and frequency. It also provides power for the entire set of equipment. The excitation transformer's role is to increase the voltage from the variable frequency power supply to an appropriate test voltage. High-voltage reactorLIt is an important component of the resonant circuit, when the power frequency equals1/(2π√LCX)At the time, it was in relation to the sample.CXA series resonance occurred.
