Series Resonance Characteristics

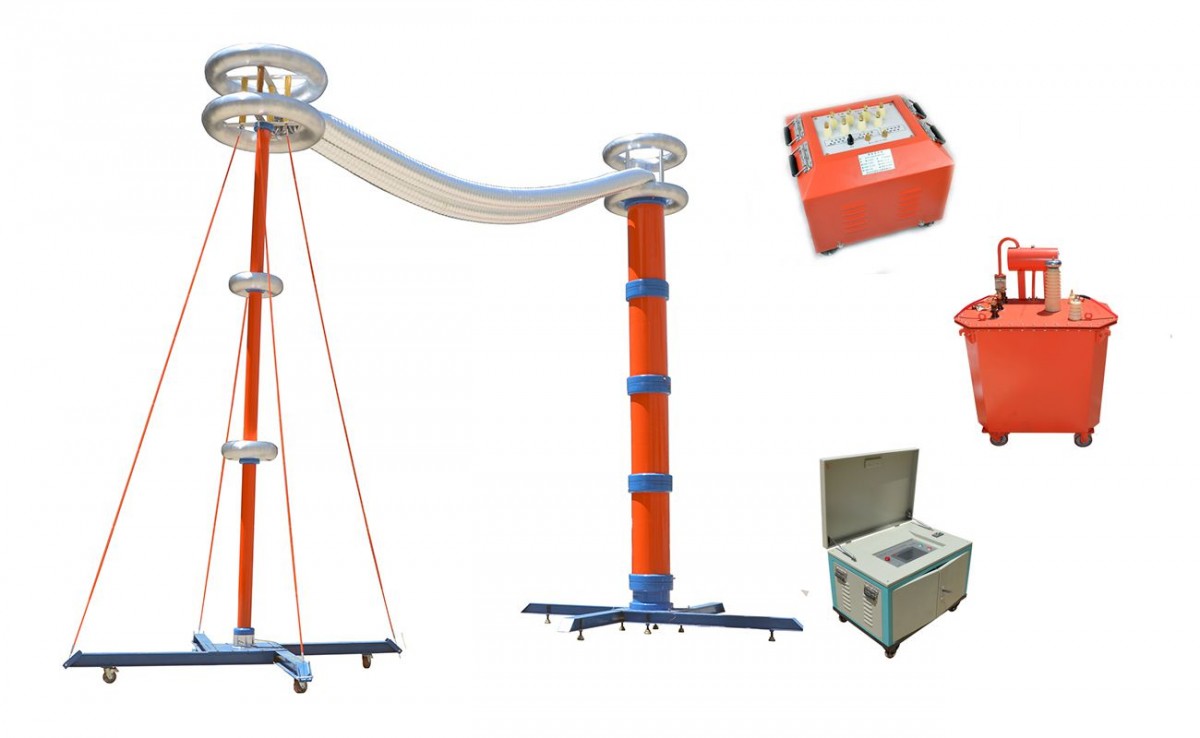

The CVT verification setup consists of: variable frequency source, excitation transformer, reactor, voltage divider, capacitor, and control box.

The principle of the resonant step-up test device for CVT verification: The TPXB CVT verification resonant step-up device must perform tests at a frequency of 50Hz during verification. Additionally, the on-site geographical conditions are complex, making it difficult for traditional experimental devices to meet the requirements of on-site transportation and testing. The TPXB CVT verification resonant step-up device is the first adjustable resonant device in China to be used for on-site verification.

Series Resonant Test Device Test Objects: Widely Used in DomesticField calibration of capacitance voltage transformers with ratings of 500kV and below.

Series Resonance

Resonant Step-up Units, Variable Frequency Resonance, Variable Frequency Series Resonance, Series Resonance, Series Resonance Transformers, Series Resonance Test EquipmentResonant Boosting Device for CVT Verification, Voltage Transformer Boosting Test Device, Series Resonant Testing Boosting Device

Series Resonant Function

Output voltage and current waveforms are excellent with distortion less than 0.5%.

2. The required capacitance is low, with the power capacity needing to be 1/Q of the test capacity, and the Q value can range from 20 to 60.

3. No over-voltage protection is required. When the test sample is punctured, the system becomes out of tune, and the resonant high voltage disappears. The inductor immediately limits the short-circuit current, preventing further damage to the test sample.

4. The unit is easy to transport to the site, being a dry-type combined series resonant device, consisting of an excitation transformer and multiple resonant reactors. Each component unit is compact in size and lightweight.

5. The protection features are comprehensive, including zero-point protection (preventing system startup when the voltage output control knob is not at zero), over-voltage protection, over-current protection, and arc protection, ensuring the reliability of the system.
