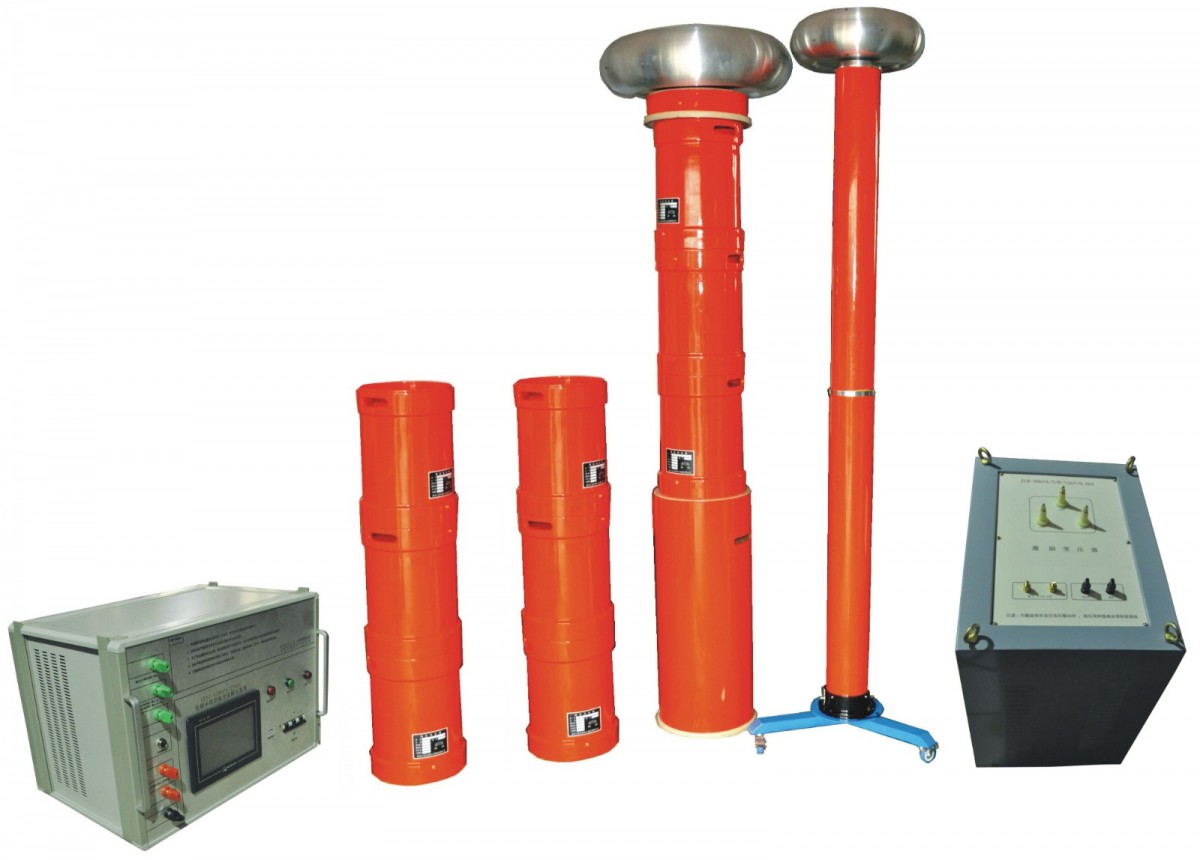

Series Resonant System

Alias

Series Resonant Equipment, Variable Frequency Series Resonant, Series Resonant Test Device, Series Resonant Test Unit, Series Resonant Principle, Series Resonant Applications, Series Resonant System

Feature

1High stability and reliability. The series resonant system utilizes imported power components as the core of power conversion, featuring stable voltage and frequency outputs, rational electromagnetic compatibility design, and comprehensive protection functions. After multiple high-voltage direct-to-ground short-circuit tests, the system remains intact, and it also exhibits strong overload capability.

2The automatic tuning feature is powerful. During the automatic tuning of the series resonant system, from...30HzNo Chinese content provided.300HzAutomatic sweeping, displaying the sweep curve, allowing users to visually observe the system tuning process; after the sweep is completed, the system, based on the initial resonance frequency points found during the sweep, adjusts within ±5HzWithin scope0.01HzFor frequency fine-scan to resolutionPlease provide the Chinese content that needs to be translated into American English..Certainly.Lock in Resonant Frequencies

3The system supports multiple testing modes."Auto-tuning + Manual Pressure Adjustment"，"Auto-Tuning + Auto-Pressurizing"，"Manual Tuning + Manual Pressure Adjustment"Trial mode is recommended."Auto-tuning + Manual Pressure Adjustment"The model allows for quick identification of resonant points while also enabling manual voltage adjustment to control the testing process, enhancing safety.

4The man-machine interface of the series-resonant system is user-friendly. Test parameter settings, control, and results are displayed on the same screen in an intuitive and clear manner, and the system includes automatic timing and operation prompt functions. The system features full touch screen operation and display, with capabilities for saving and querying test data.

5Enhanced protection features. Series resonance equipped with zero-point protection.(The system is prohibited from starting if the voltage output control knob is not in the zero position.)Overvoltage protection, overcurrent protection, and flashover protection functions ensure the system's reliability.
