Battery Online Tester

I. Product Overview

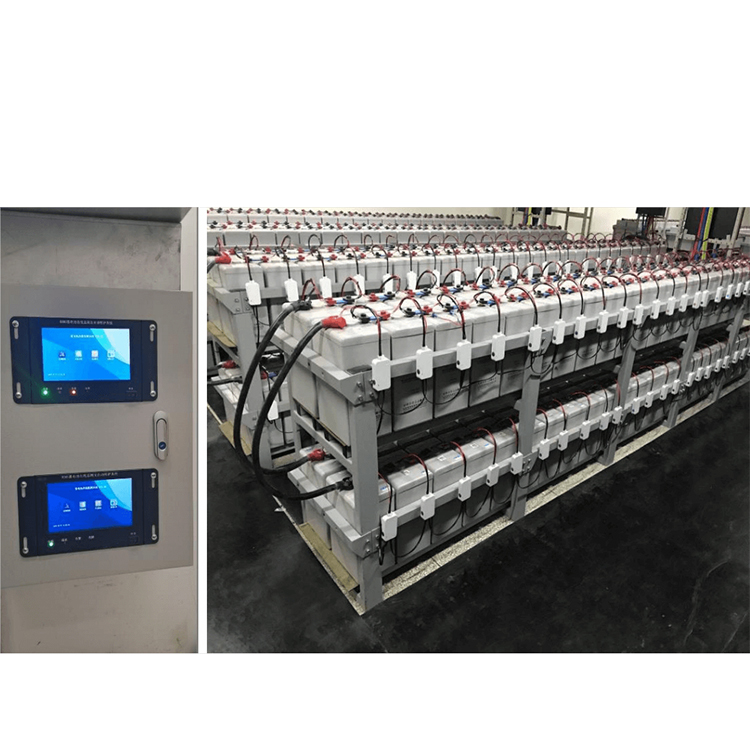

Battery Online Monitoring System is a full monitoring solution for the DC screen backup power supply..No Chinese content provided, please provide the text to be translated..Our monitoring includes internal resistance testing, pole piece temperature testing, single cell voltage monitoring, group terminal charging and discharging voltage, current monitoring, and intelligent analysis and management. This can promptly detect potential safety hazards in operational lead-acid batteries, and long-term monitoring of the batteries can effectively extend their lifespan.,Ensure early detection of deteriorating batteries,Thus, replacements are made before the battery pack runs out of power.,Reduced the risk of battery failure and saved on costs.

Additionally, lead-acid batteries inherently possess certain inherent drawbacks: such as the need for series connection, where the failure of a single battery can lead to the entire set of batteries becoming non-functional; and in extreme conditions, battery packs can rapidly overheat and result in fires or explosions. These issues are also objective factors contributing to frequent battery accidents.

With the widespread concept of the Internet of Things, online monitoring systems can now completely replace manual detection and maintenance of batteries, achieving centralized monitoring of battery parameters such as internal resistance. As a result, an online battery monitoring system can provide early warnings for battery failure, prevent severe accidents in server rooms, reduce safety risks in maintenance work, and minimize the workload for maintenance.

Section II: Product Features

Display Intuitiveness: Adopted7The inch display screen is integrated with the monitoring host, offering easy installation, real-time data viewing, and the ability to retrieve data from the backend.

The main control board utilizes imported STMicroelectronics components.(STMicroelectronics)High-performanceARMPlease provide the Chinese content to be translated.CPU: Stable performance, high frequency, and powerful functionality greatly enhance the safety and reliability of the testing process.

Flexible Communication Combinations: Can be converted fromCOM1Please provide the Chinese content to be translated.COM2Combination of1Individual groups, making it convenient for use when a large number of single batteries are required.

Flexible Communication Combination: Modules are automatically numbered, with both local data and backend export options, and intelligent integrated maintenance.

Equipped with professionalPCEnd Data Analysis Management Software: Capable of deeply mining test data generated by equipment, including individual voltage curves, group voltage curves, group current curves, individual bar graphs, real-time data tables, and upper computer software password protection, as well as experimental conclusions, which can be automatically generated according to requirements.Excel/WordDocument formatted reports for printing and archiving.

Robust and convenient data storage and backup features: built-in16GBData storage space, capable of storing more than1000The system compiles charge and discharge data, and supports features such as viewing, analyzing, and deleting historical data, accompanied by random options.16GB UDisc, insert device.USBPorted test process data can be stored for further analysis.UPlatter, then takeUPicked upPCData analysis and backup management are conducted through onboard supervisory control and data acquisition (SCADA) software.

Self-calibration Feature: The instrument is equipped with voltage and current calibration correction functions, allowing on-site calibration of measurement results. It supports multiple repeated calibration corrections for measurement errors, ensuring measurement accuracy. This feature is particularly suitable for use when consistency between the instrument readings and on-site meters is required.

Robust and convenient data storage and backup capabilities: built-in16GBData storage space, capable of storing more than1000The system compiles charging and discharging data, and supports functions such as viewing, analyzing, and deleting historical data, with random accessories included.16GB UDisc, insert into the device.USBPorted test process data can be stored toUDisc, then hold.UPicked upPCData analysis and backup management conducted through a supervisory control and data acquisition (SCADA) software on board the aircraft.

Rich expansion interfaces: The instrument's back features multi-machine parallel connection and remote control.USBPending communication interface.

Wide Application Industry: Suitable for power distribution systems, communication base stations, iron towers, battery manufacturers, railways, and industrial plants. 。
