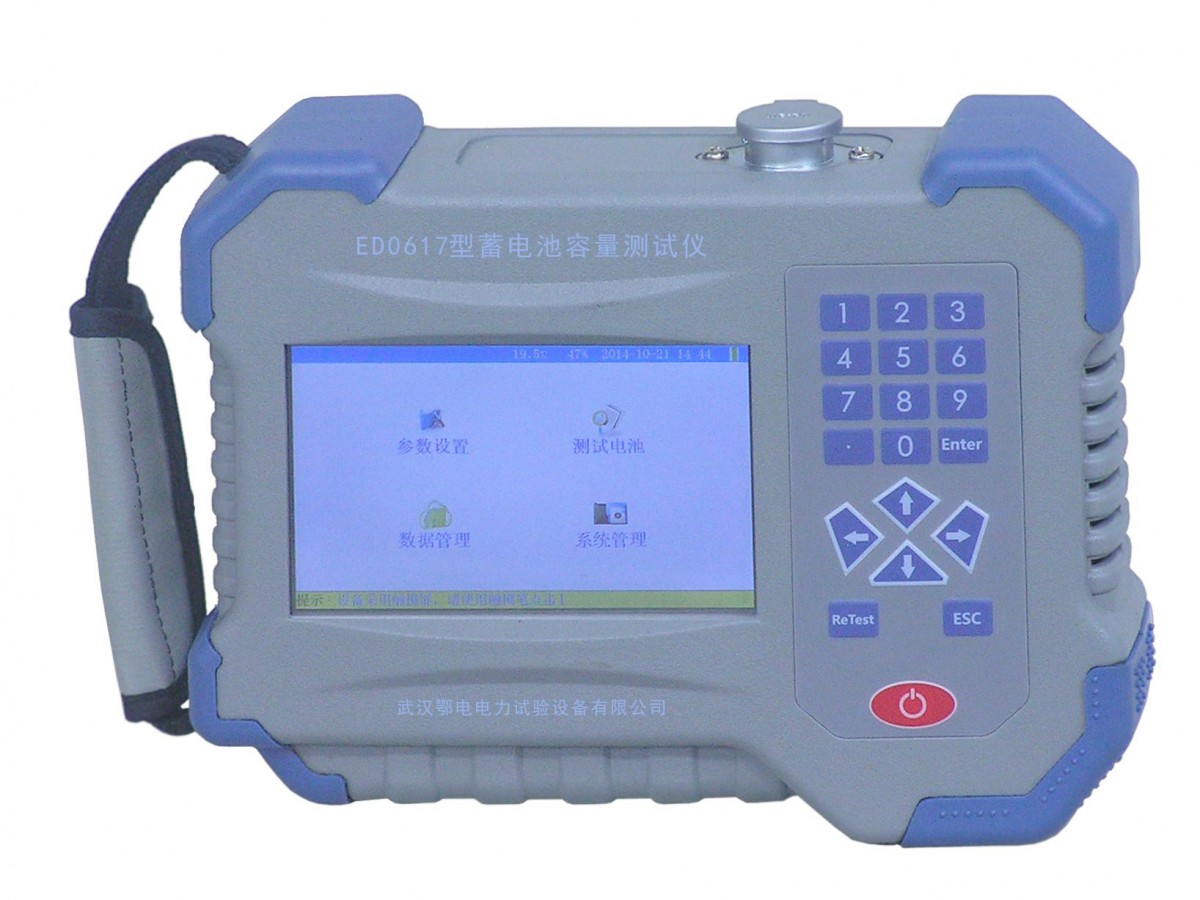

Battery Comprehensive Test Equipment

Key Features

l The instrument features a touch screen operation, allowing direct use of a stylus or finger to navigate the interface.

l Storage data methods include internal storage and externalSD card storage options, choose at your own discretion.

l Equipped with overpressure, overcurrent, and overheat protection features.

l Online Monitoring Function:The system continuously monitors battery packs and individual cells during online discharge, equalization charging, float charging, and other states, including overall voltage, individual cell voltage, overall charging/discharging current, overall charging/discharging capacity, and monitoring time.

l Discharge Function:After the battery pack is disconnected from the system, use the intelligent dummy load for constant current or constant power discharge, or connect the intelligent dummy load in parallel with the user's device for constant current discharge. Set up"Discharge Current," "Discharge Time," "Discharge Capacity,""Parameters such as 'Group Termination Voltage' and 'Individual Cell Termination Voltage' trigger the tester to automatically execute the discharge function, displaying real-time data including discharge current, discharged capacity, total group voltage, individual cell voltage, and discharge time; modifications to discharge parameters can be made during the test. The discharge test can be stopped when the battery pack reaches the set termination discharge voltage, capacity, or time, or if any individual cell voltage falls below the set termination voltage or if an intentional termination operation is performed. The termination condition for individual cell voltage can also be set to only trigger an alarm without stopping the discharge."

l Battery Charging Function: Automatically charges in strict accordance with the battery's charging characteristic curve, featuring a designed charging mode that is"Constant Current → (Constant Voltage, Stable Voltage) → Decreased Current → (Automatically Switches to) Trickle Floating Charge," boasts fast charging speed, high charging recovery efficiency, no need for manual supervision, no overcharging risk during extended charging periods, and ensures the battery's service life. Users set parameters such as constant voltage, floating voltage, single cell voltage limit, charging current, charging time, and charge capacity, and the tester automatically executes the charging process, displaying real-time information like charging current, charge capacity, total voltage, single cell voltage, and charging time. Charging parameters can be modified during the process. Charging can be stopped when the set charging time or charge capacity is reached, the charging module is abnormal, or the operation is manually terminated.

l Discharge, charging, and activation functions: After the battery pack is removed from the system, the discharge and charging parameters are set, and the meter starts operating. Upon the completion of the battery pack's discharge, it automatically switches to the charging function, eliminating the need for manual operation.

l Fast Capacity Measurement Feature(Optionally)Discharge using an intelligent dummy load after the battery pack is removed from the system, simplyIn just 3 to 20 minutes, the actual capacity, internal resistance, and performance status (normal, lagging, degraded) of each battery in the battery pack can be measured.

l  During the testing process, in the event of abnormality detected in a complete set or individual battery, or in the malfunctioning of the testing equipment,The tester automatically terminates the test to protect the battery. The tester features an integrated design of the monitoring section and power section, with the power section utilizing new high-efficiency components.User-friendly interface with simple operations, clear processes, and step-by-step instructions in simplified Chinese.

l High-brightness color LCD screens, offering clear and beautiful display effects.

The master station data management software boasts powerful functions and an intuitive interface, offering data management, printing, analysis, report statistics, and automatic generation of test reports.
