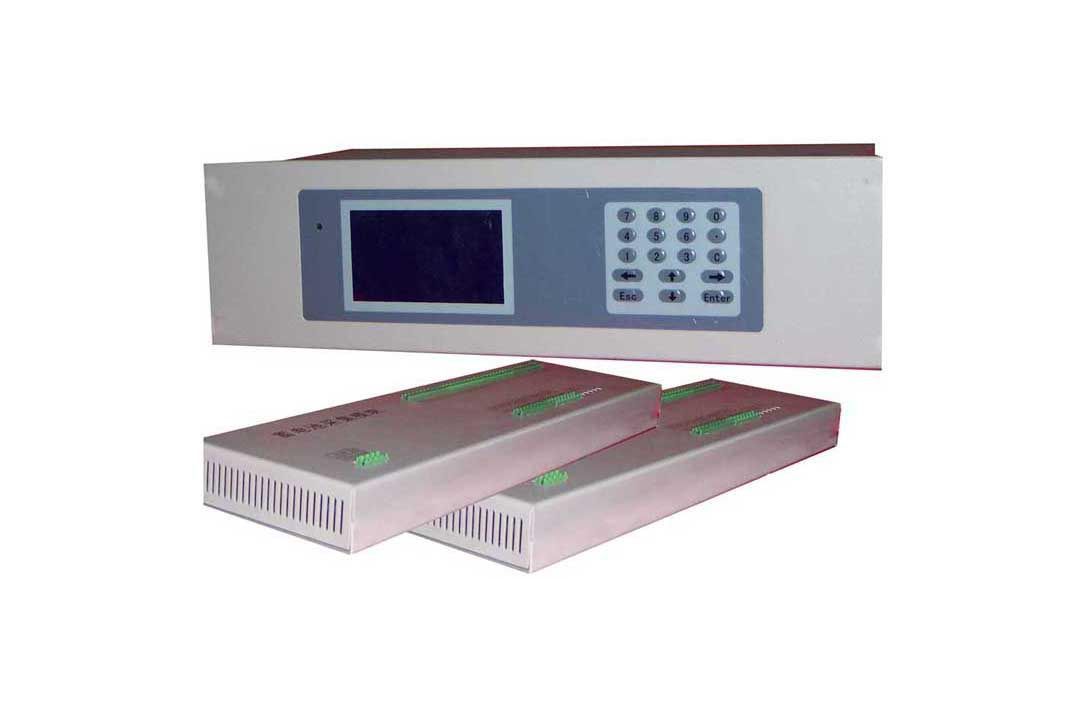

Battery Pack Online Monitoring

Measurement Function

 Provide multiple111Single-cell battery testing.

Offer measurement of total battery voltage and battery current.

 Provide1Road battery temperature,1Road environmental temperature monitoring, monitoring the surface temperature of the battery or the ambient temperature of the battery installation.

Calibration Function

 ThroughLCDAnd calibrating various measurement values with button adjustments.

Communication Features

 Equipped with standardRS-232AndRS485Interface designed for easy integration with power plant automation systems, meeting the requirements for power plant automation and unmanned substation in the power system.

Real-time Monitoring Feature

Any fault in battery voltage, or in total voltage or total current of the battery pack, will trigger an audio-visual alarm system.

When a battery total voltage fault occurs, the machine can quickly record the time and voltage value of the system failure, and accurately document the recovery time of the total voltage fault.

The system can quickly record the total voltage and current of the battery, as well as the status of each individual battery, during charging and discharging. The host computer can automatically generate charge and discharge curve graphs based on these charging and discharging data.

The system can record the float status of the entire monitored battery pack and individual battery data according to user requirements, with the recorded data available for instant review at any time.

You can view the current operating status and voltage information of various batteries at any time.

Human-Machine Interface Feature

 The system is equipped withLCDDisplay screens, thin film keyboards, audio-visual alarm devices; throughLCDDisplay system shows operational information; operates with a thin-film keypad.LCDThe system allows for convenient and quick configuration and parameter modifications; it automatically handles system alarms based on set parameters and displays system fault content in Chinese characters.

Simultaneously emit sound and light alarms.

Backlight Feature:

 When the system3Idle for a minute, turn off the backlight display to protect the LCD screen and extend its lifespan.

Auto-Return to Home Screen Feature

If the system is not currently under the battery monitoring main screen, it will automatically return to the monitoring main screen after a certain period of inactivity on the keyboard, for the convenience of users to check the current battery status at any time.

Clock Function

 Features a real-time clock, providing accurate time and the ability to record the time of fault occurrences.

 Calendar and clock display available.

Battery Backup Feature

 The system parameters feature power failure protection. They will not be lost even when the power is cut off, with the capability to store parameters during power outages.10Year-long.
