Direct Current Resistance Tester for Electric Motors

Product Introduction:

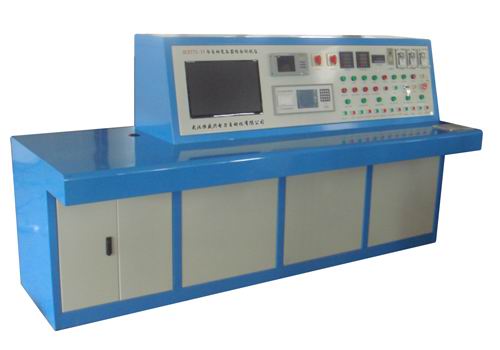

With the development of modern industry, the demand for motors is continuously increasing, and the operating environments are often harsh, leading to significant potential hazards and a higher rate of motor failure. Consequently, it is necessary for motor manufacturers and repair shops to conduct inspections and tests on certain essential motor parameters. Additionally, regular inspections by motor users are an effective way to reduce and avoid potential safety hazards. In response to market demand, Wuhan Norton Electrical Co., Ltd. has collaborated with renowned professors from the Department of Electrical Engineering at Huazhong University of Science and Technology and some well-known motor manufacturers to develop a comprehensive motor testing bench, which has received positive feedback and preference from motor manufacturers. The comprehensive motor testing bench is an improved version of the existing testing bench. The operating method has been enhanced with additional features.PLCController, in automatic mode, simply click the mouse on the computer, and the computer sends out control commands, byPLCEngage the corresponding actuator to complete the operation test. Testers enjoy greater ease and convenience, with the exception of retaining manual (button) operation methods.

Motor Test Bench Suitable for Capacities of1KW～1500KWMotor voltage is10kV、6kV、3kV、1140V、660V、380V、220V、110VMotor no-load characteristic test, rated load test, insulation resistance measurement, direct resistance measurement, power frequency withstand test, inter-turn withstand test, overspeed test, overvoltage test, noise measurement, environmental temperature measurement, etc.

Product Features:

⑴ Motor No-Load Loss Measurement

② Motor no-load current measurement

3. Rated Load Loss Measurement of Electric Motors

④ Motor rated load current measurement

Motor Winding Resistance Measurement

⑥ Motor power frequency withstand voltage test

⑺ Motor Winding Insulation Resistance Test

⑻ External Induction Pressure Regulator Control (No-load Test), Input/Voltage and current output monitoring, as well as overcurrent protection.

⑼ Voltage/Current Transformer Gearing Control

System Input/Output Voltage/Current Monitoring and Protection

Measurement data is accurate and reliable.

Ease of operation and simplicity, among other advantages.

⒀ Hand-operated/Two operating modes for microcomputers.

Data is directly uploaded to the computer and saved for easy access to historical records.

⒂ Video surveillance systems monitor the test area, enhancing safety measures.
