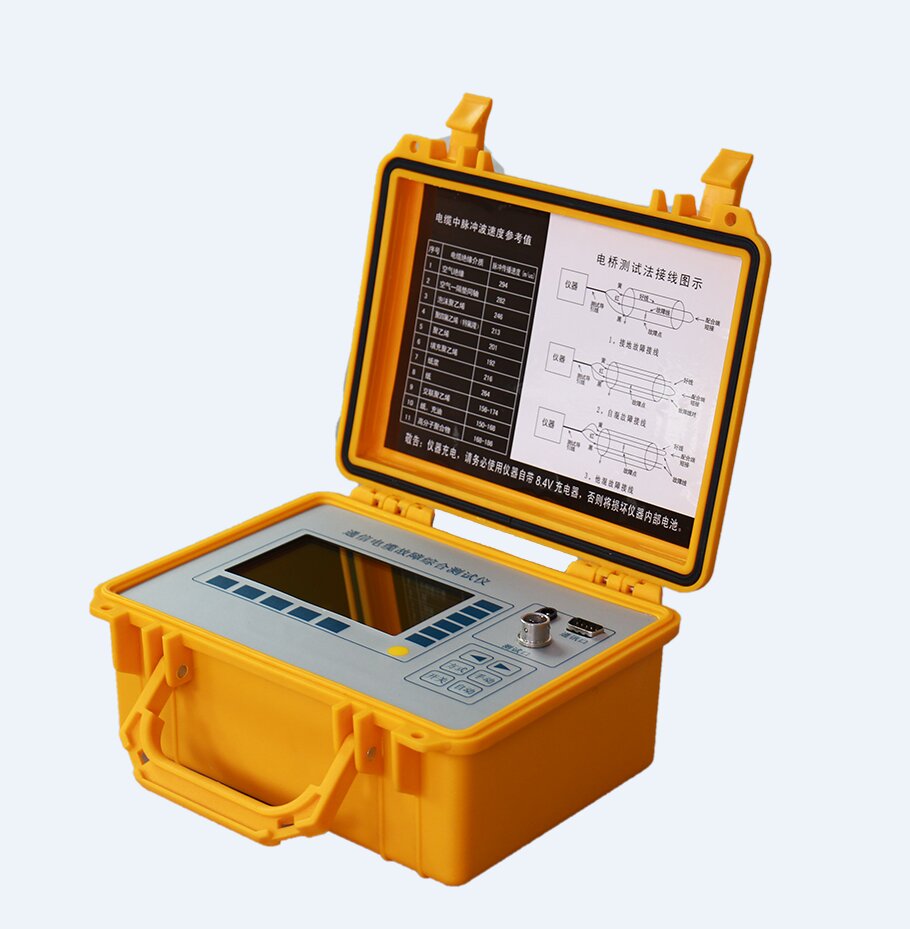

Cable Breakage Detection Instrument

I. Product Introduction:

The HDL-200 Cable Fault Tester meets the rapid development of industrial-grade power industry solutions and the IT era by systematizing the limitations of traditional cable fault testers through the use of industrial control embedded computer platforms, network service capabilities, and USB communication technology.Extreme.Significantly enhanced the functionality and utilization value of the instrument, as well as the convenience of on-site operation. Particularly, it provides a comprehensive solution for the increasing number of buried cable faults.No Chinese content provided. Please provide the text to be translated.. AvailableMultiple service approaches The entire system meets the standard of the People's Republic of China's Power Industry.DL/T849.1～ DL/T849.3-2004 Standard for General Technical Conditions of Special Test Instruments for Electric Power Equipment, produced in accordance with the Production Measurement Instrument License of the People's Republic of China, No. ShaZhi00000548. This set of equipment is an authorized supplier product for both State Grid Corporation and Southern Power Grid. The system testing consists of three parts: the system host fault locator and the cable path locator, which are used for testing various faults in power cables, as well as for detecting cable paths and the burial depth of cables. Additionally, it is applicable for testing faults in railway and airport signal control cables, as well as streetlight cables.Please provide the Chinese content to be translated.. Certainly.Test.

Section II: Product Features

◆ DomesticLead. FirstUtilizing an industrial control embedded computer platform system, fully computerizedXP system operation platform, integrated software testing, with cable fault testing software.

◆DomesticLead. FirstAdopted12.1-inch large-screen touch system, featuring dual control with touch pen and mouse, high-brightness screen display, suitable for outdoor use under sunlight, powered by lithium battery for convenient on-site testing. Engineering-grade aluminum alloy housing, shockproof and moisture-proof.Extreme.Robust stability.

◆ Featuring a new USB communication interface, the signal collection is stable, and the host can automatically select low power mode.6.25MHz, up to 100MHz sampling ratesThe company's new product offers adaptive pulse width, capable of meeting the testing requirements for cables of varying lengths, reducing gross measurement errors and enhancing testing accuracy.

◆ The software allows for arbitrary compression and expansion of waveforms. It displays two waveforms that are closer to the standard on the same screen for accurate comparison and analysis, with dual cursors that can be moved.No Chinese content provided, so no translation is needed.. .No Chinese content provided.0.15 meters, enhancing test accuracy and reducing errors.

◆ Host supports built-in WIFI reception. The dedicated 3G software enables on-site real-time testing technical services by experts at any time. Experts can remotely control the user's host, equipped with a mobile Android version of the testing software, providing users with timely and accurate waveform analysis and guidance on-site, ensuring worry-free work (optional).

◆Built-in on-site waveform and physical wiring diagrams facilitate on-site testing comparisons and daily learning, and can automatically generate test reports.

◆ KeyPlease provide the Chinese content to be translated.No Chinese content provided, please provide the text to be translated.The定点 instrument features a direct digital display of the tester's distance from the fault point, utilizing noise-suppression technology. This represents another innovation in domestic fixed-point technology, providing a strong guarantee for quickly and accurately locating cable faults and reducing power outage losses.

◆ High-voltage Discharge Section, DomesticLead. FirstNew8.4kg high-frequency, high-voltage power supply replaces 65kg test transformer and control box, with a wide range of applications, truly comprehensive and lightweight, domesticallyPlease provide the Chinese content you would like translated into American English.. First。
