How to Choose the Right石膏Mortar Mixing Machine

Product Introduction

The plaster mortar mixer, also known as a dry mortar mixer or dry powder mixer, operates by utilizing two rotors moving in opposite directions. As the machine works, the material inside experiences a compound motion. The blade carries the material along the inner wall of the machine trough in a counterclockwise rotation, simultaneously causing the material to flip left and right. In the area where the two rotors cross and overlap, forming a weightless zone, materials of any shape, size, or density can float and remain in a weightless state. This continuous flipping and cross-cutting within the trough result in a rapid, gentle, and uniform mixing effect.

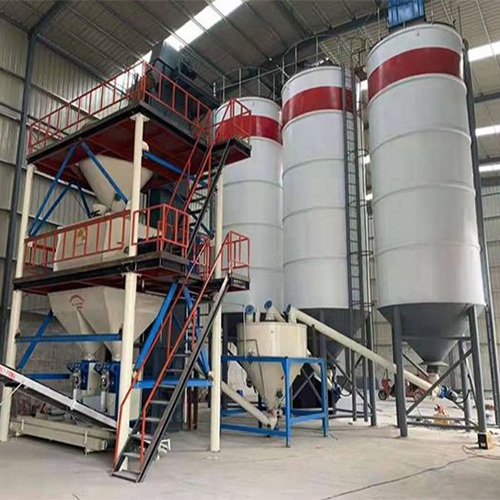

The dry powder mixer is a vertical mixer that can operate independently and, when integrated with conveyors, storage tanks, and electronic metering automatic packaging machines (suitable for valve bags, reducing the need for 3-4 workers, and significantly improving production efficiency), it achieves a seamless one-stop production process of feeding, mixing, and packaging. It represents an upgrade from traditional production methods.

The dry powder mixer is suitable for mixing a variety of dry powders and fine granular materials, such as putty powder, plaster of Paris, dry mortar, colored cement, various mineral powders, chemical materials, fertilizers, and more.

Job Characteristics

Under the action of the浆叶, the material inside the machine undergoes both circular and axial movements, resulting in convection mixing, shear mixing, and diffusion mixing based on the material's movement status. Considering the characteristic of the sand slurry that it is difficult to disperse when adding around 10mm of polystyrene fiber, we have installed a set of fly knives. Through high-speed rotation, the clumped fibers are dispersed, achieving the desired effect.

Operation Procedures

Power on the appliance. Before mixing, clean the mixing bowl and blades with a damp cloth.

2) Measure the designated cement and standard sand, then pour them into the mixing pot.

Start the machine, mix for 5 seconds, then gradually add water, completing the addition within 20-30 seconds.

Since the machine is started, mix for 180±5 seconds and then stop.

5) Remove the adhesive sand stuck to the leaves and take off the mixing pot.

6) After the operation is completed, the mixing blades and the mixing pot should be promptly cleaned.

Equipment Application Range

The dry powder mixer is a new type of mixing equipment, widely used in the mixing of powders and paste liquids, such as plaster, genuine stone paint, dry powder, putty, food, chemicals, feed, ceramics, refractory materials, and other powder materials. It is also utilized in industries such as chemical engineering, compound fertilizers, dyes, pigments, rubber, building materials, refractory materials, rare earth elements, plastics, glass, and new materials, as well as nuclear energy materials, for solid-solid (powder to powder) and solid-paste (powder to paste liquid) material mixing.
