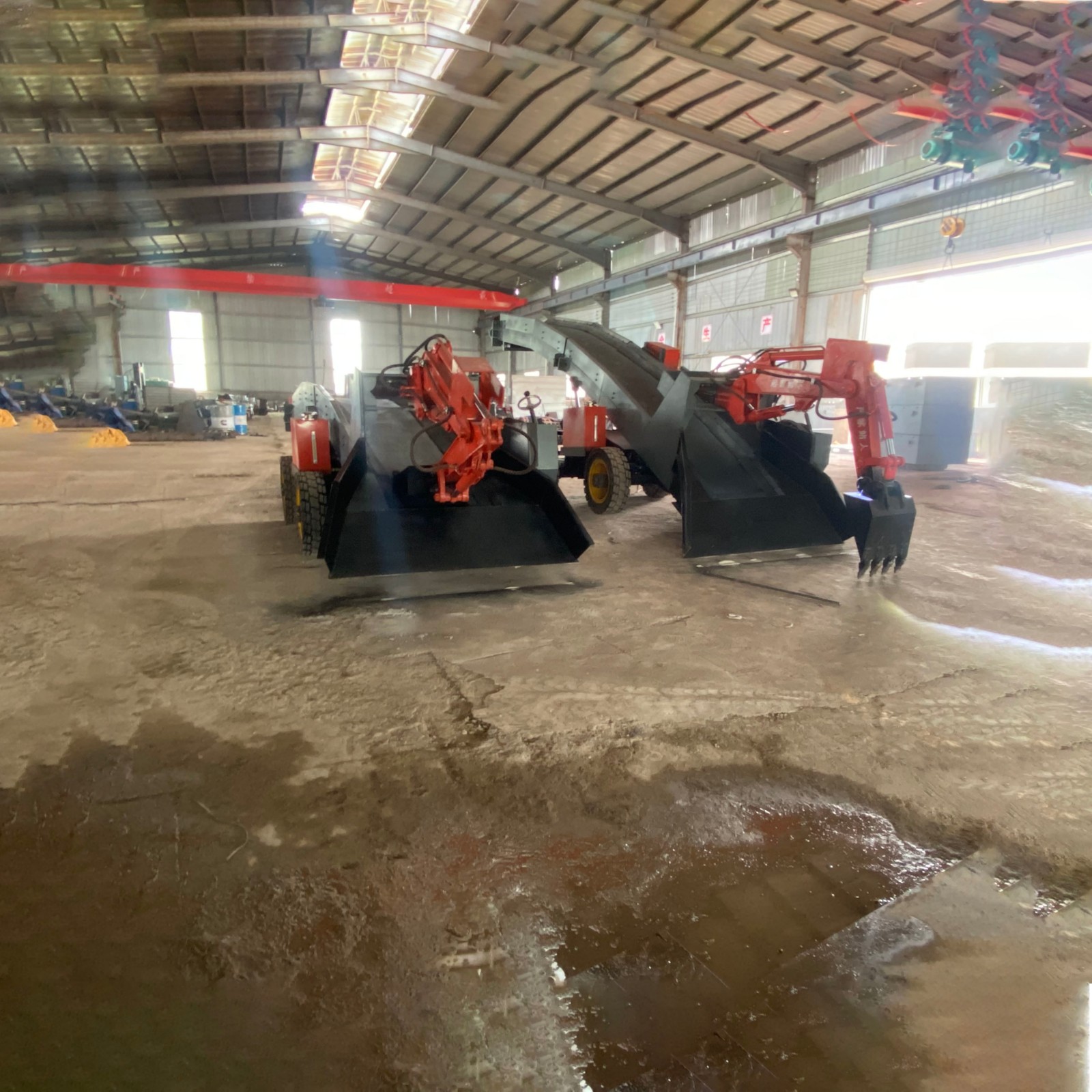

Mucking Loader, also known as a digging loader, combines the functions of mucking and loading with a mechanical arm and conveyor system. It features an electric full-hydraulic control system and production equipment, offering safety, environmental protection, low energy consumption, and high efficiency.
Extendable slag removal machine
Composed of an extendable arm, tilting mechanism, rotation mechanism, and base [3].
The front end of the telescopic boom is connected to the ripper plate and supported by fixed roller wheels, driven by a hydraulic or pneumatic motor to perform reciprocating ripper movement through a chain wheel and chain. The tilting mechanism is driven by a hydraulic or pneumatic cylinder, allowing the telescopic boom to tilt up and down around a hinge point by ≤ .

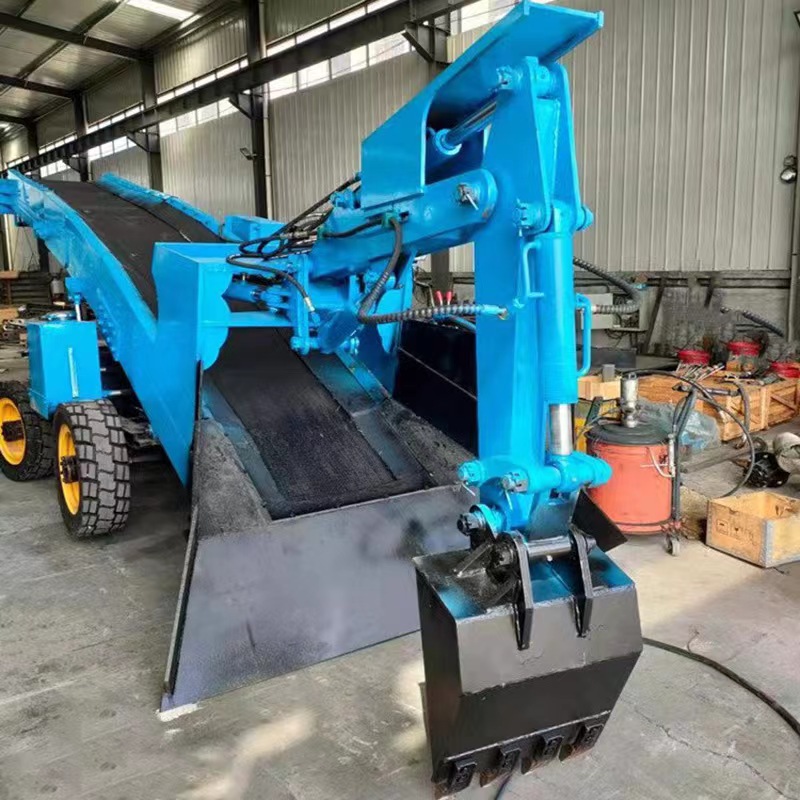

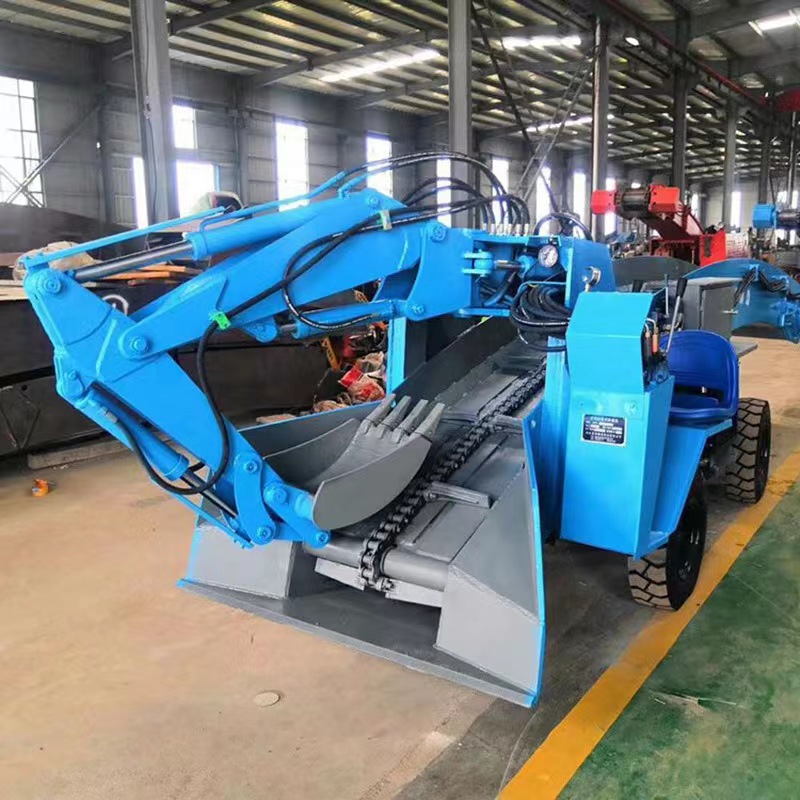

A wheel-type scraper is an industrial machine that incorporates five functions: hydraulic movement, excavation and collection, conveying, loading, and bottom cleaning.
The hydraulic travel function is achieved through a hydraulic motor, reducer, drive shaft, and then to the wheels driven by another reducer. The hydraulic motor features three functions: forward, reverse, and automatic braking; the digging and collection function is performed by a mechanical arm, which has capabilities for digging, extending, loading, and unloading materials. The large arm can lift, lower, and rotate left and right. The operation of digging and collection is fully hydraulically controlled and is operated with two handles, each controlling two actions, making it easy to operate.
The conveying and loading functions are handled by the conveyor system, with its conveying frame controlled by hydraulic cylinders for lifting and lowering. When the conveying frame lowers, it can support the front wheel, and the feeding opening at the front becomes more tightly sealed with the ore, ensuring stability during operation. It can also aggregate and disperse materials, level the ground. The conveyor trough width is 750mm, with a conveying speed of 800-900mm/second. The scraper chain is driven by a 15KW electric motor, providing a more stable transmission performance, longer service life, and easier maintenance.
The wheel-mounted scraper is an ideal equipment for continuously loading bulk solid materials (such as slag, coal), with a conveying capacity of over 80m3 per hour, particularly suitable for waste removal from small to medium-sized tunnel cross-sections.
