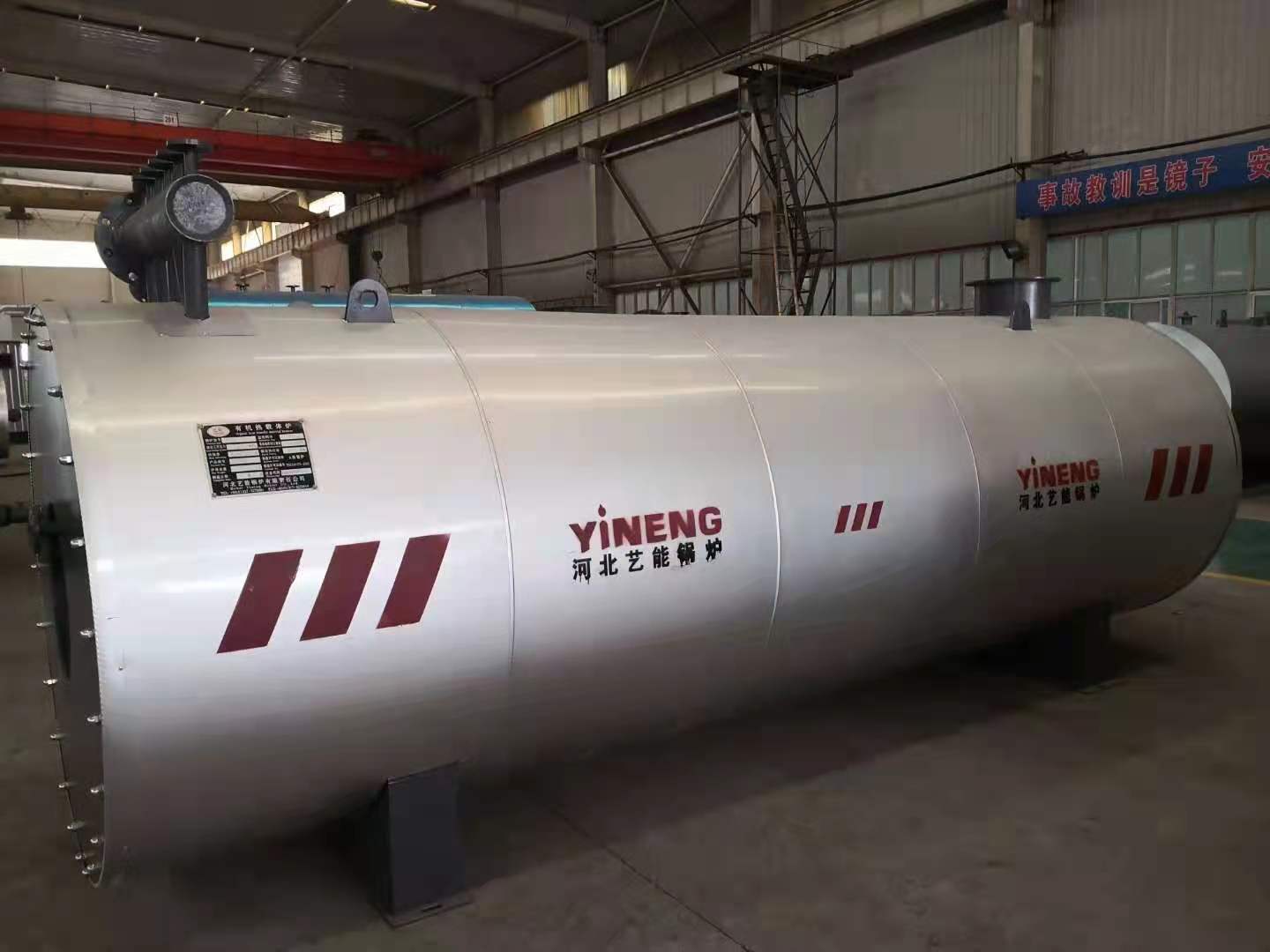

Gas (Fuel) Horizontal Heat Transfer Oil Furnace

Product Parameters: - Fuel Option: Natural Gas, Light Oil - Heat Transfer Medium: Thermal Oil - Output Temperature: 320°C - Output Efficiency: 92-98% - Output Power: 120-12,000 kW - Output Power: 100,000-10,000,000 kcal/hour

Gasoline (Fuel) Thermal Oil Boiler, fueled by gas, fuel oil, or ethanol, using thermal oil as the heat transfer medium, serves as a high-temperature heat source for environments below 350℃. This product boasts high temperature, low pressure, and high thermal energy utilization. Optional steam generators are available to produce saturated steam below 1.3MPa for customer use.

This boiler features intelligent control for especially convenient and simple operation. The controller displays on a simulated screen, with centralized processing control, including automatic ignition and shutdown program control, automatic combustion control, automatic switching and control of the circulating pump, and automatic fault handling and alarm functions.

Structural Features

The boiler utilizes a wet-back three-pass internal combustion structure, equipped with a top header pipe at the boiler's top, effectively preventing direct flame radiation to the rear wall. This increases the radiant heating surface area and enhances the boiler's thermal efficiency.

2. Operating under a slight positive pressure, it effectively enhances the combustion intensity in the furnace, making the same capacity boiler smaller in size and improving its thermal efficiency.

3. Utilizing EDA technology, we meticulously calculate the furnace structure dimensions and flue gas flow rates, optimally utilizing flame and flue gas heat exchange to ensure reliable boiler operation and adequate cooling.

4. Utilizes condensation technology to effectively reduce the temperature of exhaust smoke.

5. Employed reasonable structural design and superior fire-resistant and thermal insulation materials to significantly reduce the surface temperature of the furnace, keeping it below 50 degrees Celsius (exceeding national standards), and minimize heat loss.

6. Features a new design that reduces harmful emissions during fuel combustion, particularly nitrogen oxide emissions, thereby meeting the national low nitrogen emission standards.

7. Utilizing imported burners from multiple internationally renowned brands, suitable for various application scenarios, ensuring both quality and safety.
