Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 43000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

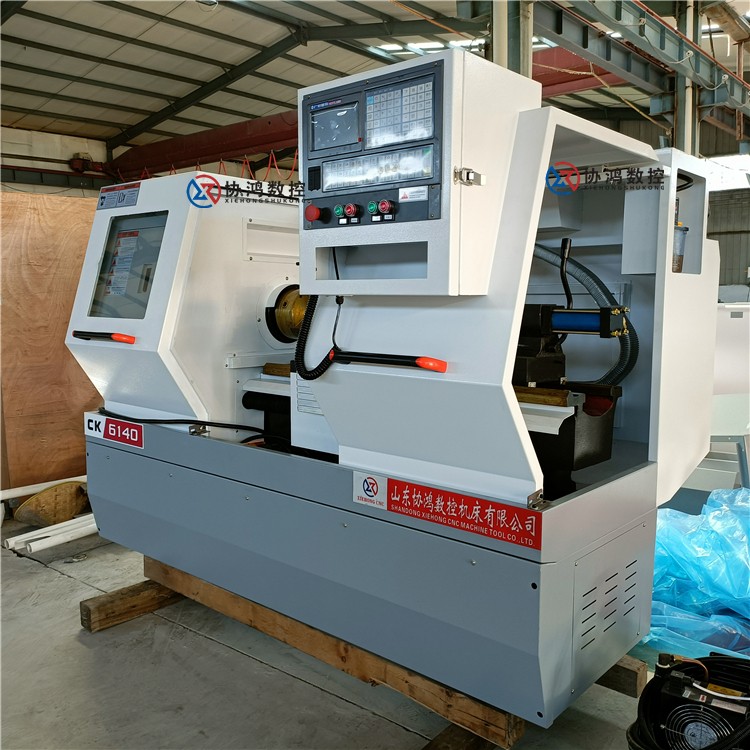

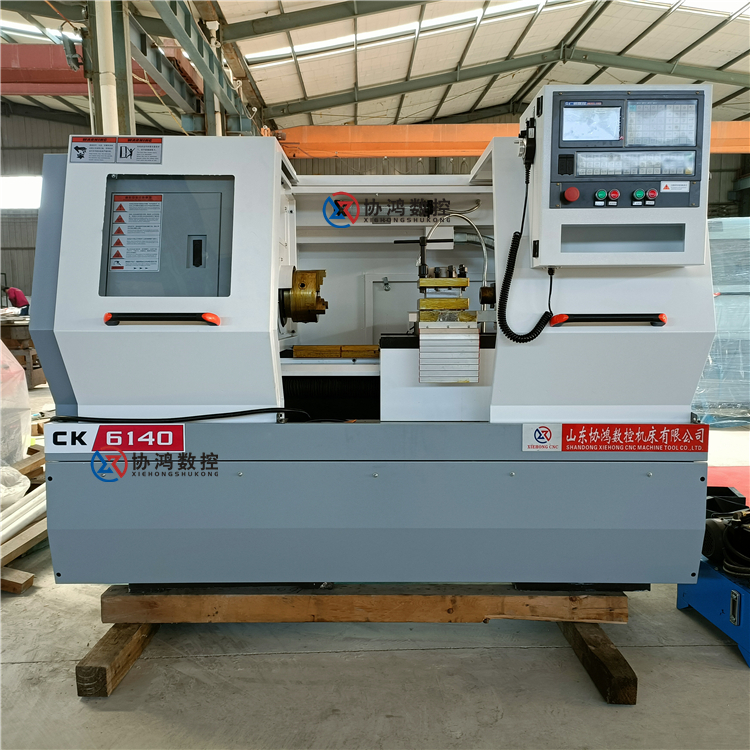

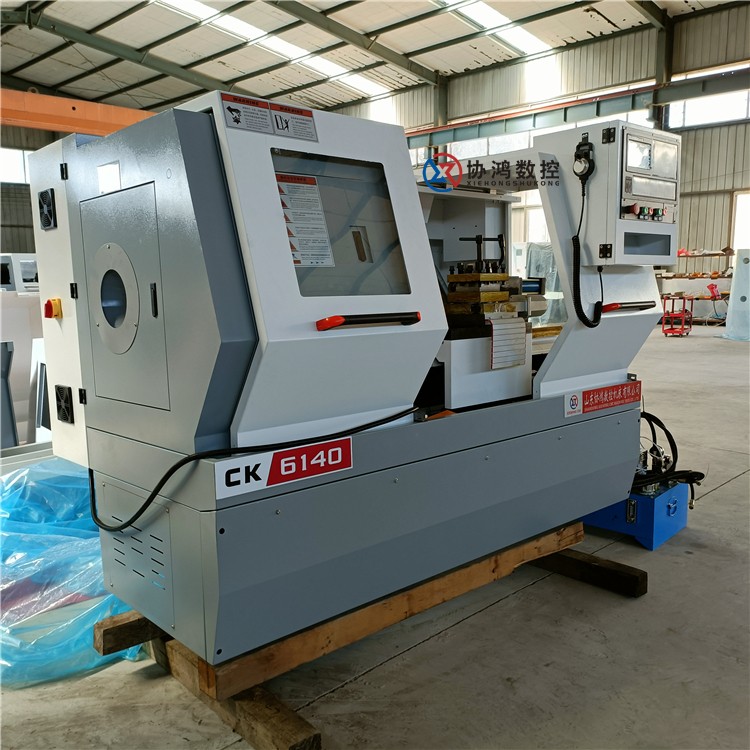

Model CK6140-750 Bed frame rotation diameter: Φ400 mm Skid Turn Diameter: 210mm Processed Length: mm 750 Travel of X/Z Axis mm 220/750 X/Z axis displacement unit mm 0.001 Bore diameter: 52 mm Main shaft bore taper - MT6 Main shaft stages Continuous Spindle Speed Range rpm L: 70-560 H: 200-1600 Main shaft drive type: Two-speed gear transmission, infinite variable speed within gears Main Motor Power: 5.5 kW Feeding Vise X/Z Axis N.m 5/7.7 X/Y axis rapid traverse speed m/min 6/8 Type: Knife Holder, Electric Knife Holder Bar size: 20×20 mm Repeatability of Knife Block Positioning Accuracy (X/Z) mm 0.01/0.015 Tailstock, Type of Tailstock: Available Tailstock bush diameter mm Φ60 Tailstock sleeve travel mm 140 Tailstock Tip Bore, M4# Other Machine Tools Net Weight kg 1900 Power Demand (Power/Current) kW/A 10kW/20A
