Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 25000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

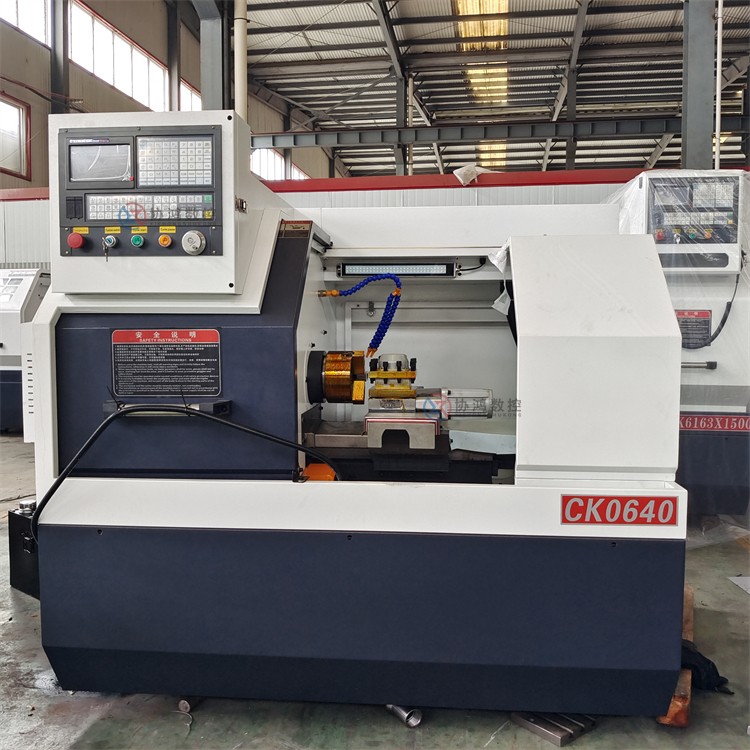

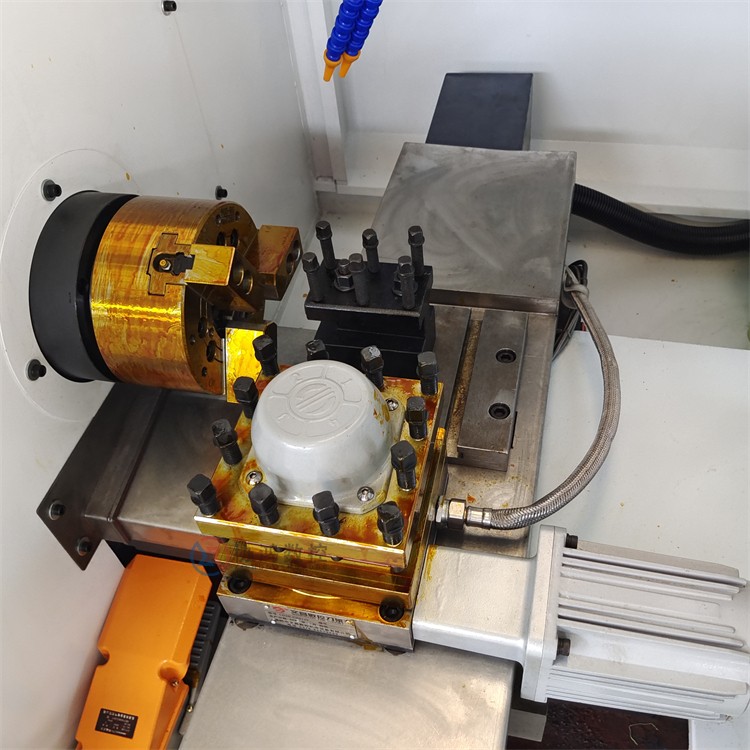

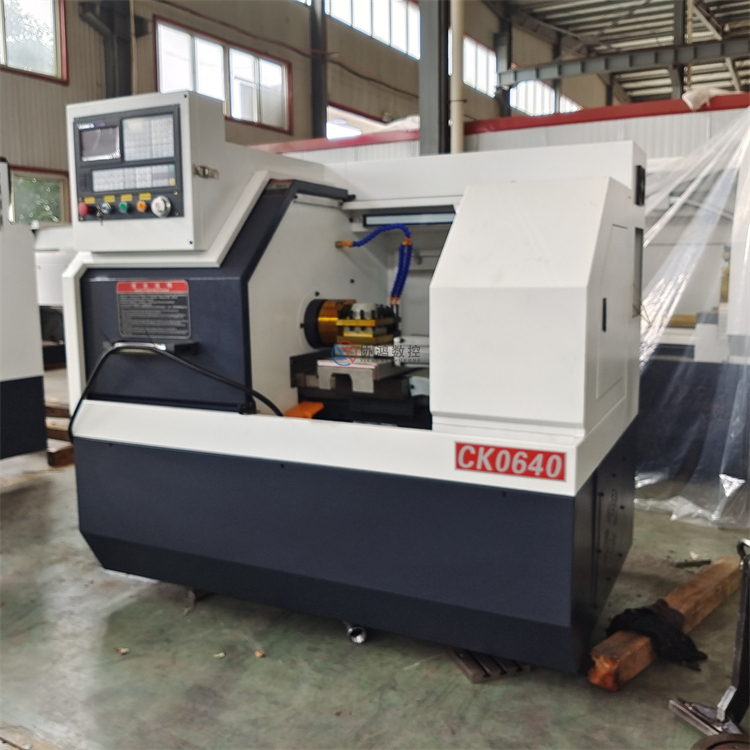

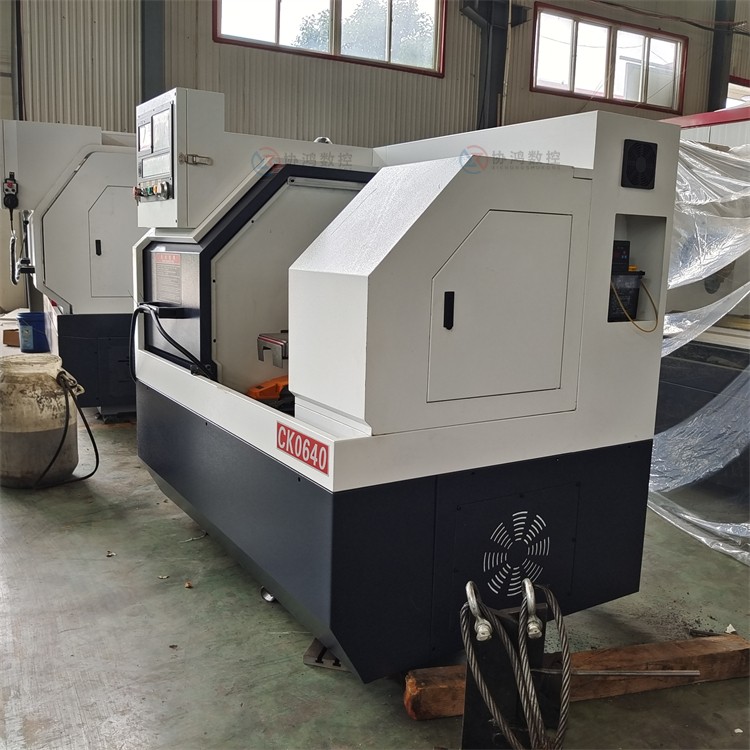

CK0640 CNC Lathe Technical Specifications Swivel Diameter on Bed: Φ340 mm Deck turntable diameter (mm): Φ120 Z-axis Travel (mm) 220 Travel of X-axis (mm) 280 Bore Diameter (mm) Φ55 Bore Diameter (mm) Φ40 Main shaft speed range (rpm): Variable Frequency Drive 50-2600 rpm G0 Speed X-axis (Radius mm/min) 5000 G0 Speed Z-axis (mm/min) 6000 Input Unit (X/Z Axis) 0.001mm Travel Units (X/Z axis) 0.001mm Rack for Blades, Blade Arrangement Cross-sectional dimension of blade shank: 20mm x 20mm X-axis/Z-axis Repeatability Accuracy (mm) - X-axis: 0.02, Z-axis: 0.02 Main Motor Power: 3 kW Clamping Method: Hollow Cylinder with 130mm Bore Stepping Motor Torque for X/Z Axis: 12/12 Nm Machine Tool Net Weight (Kg): 900 Machine Tool Dimensions (Length x Width x Height) (mm): 1300×750×1700
