Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 13000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

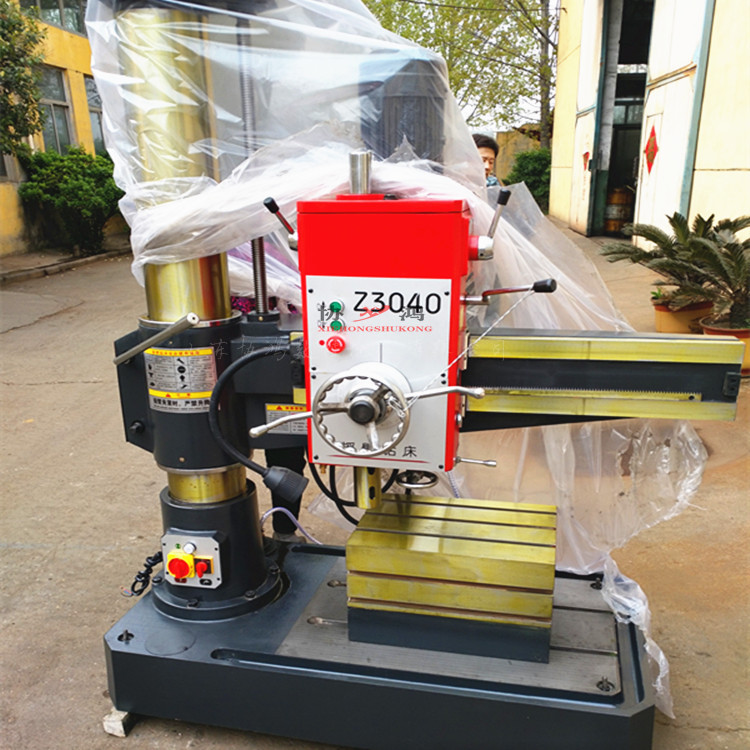

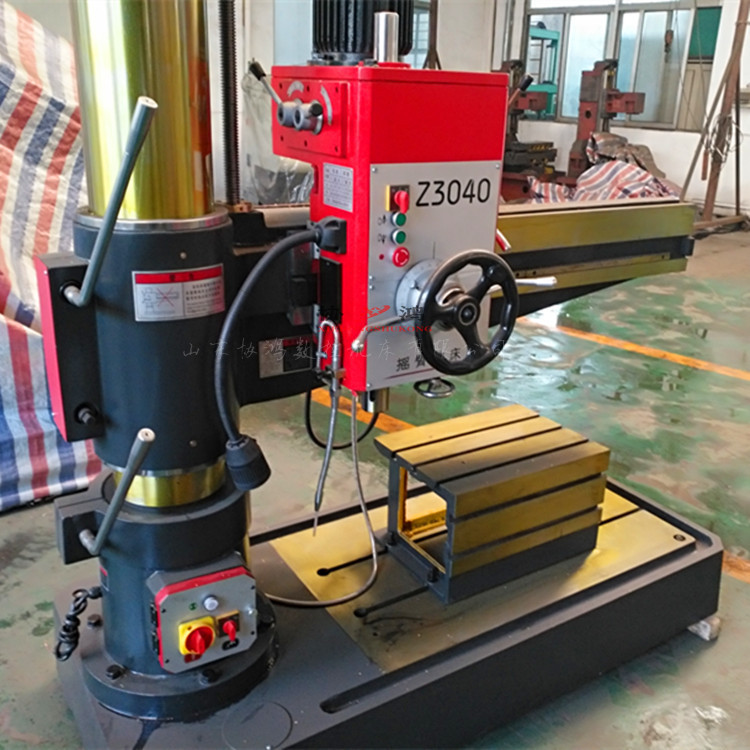

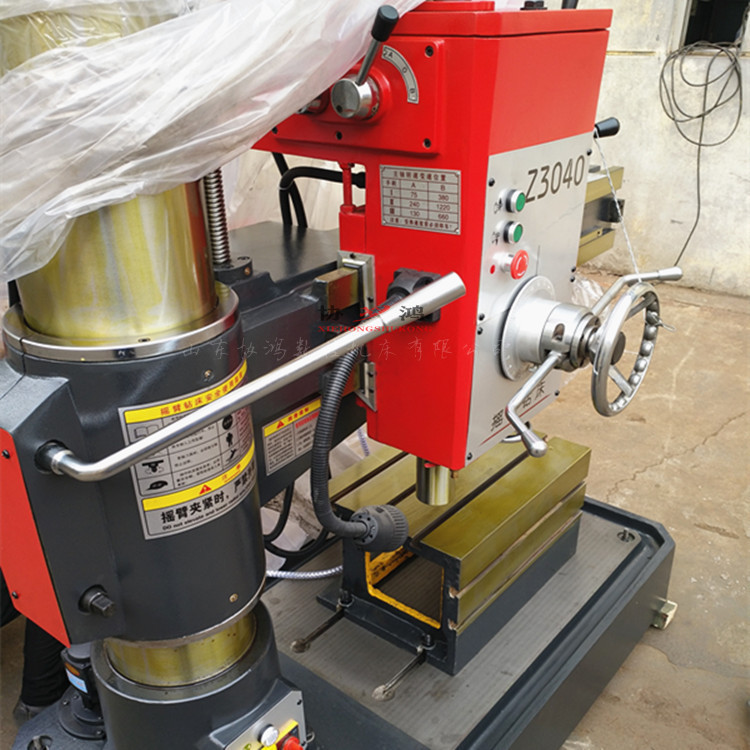

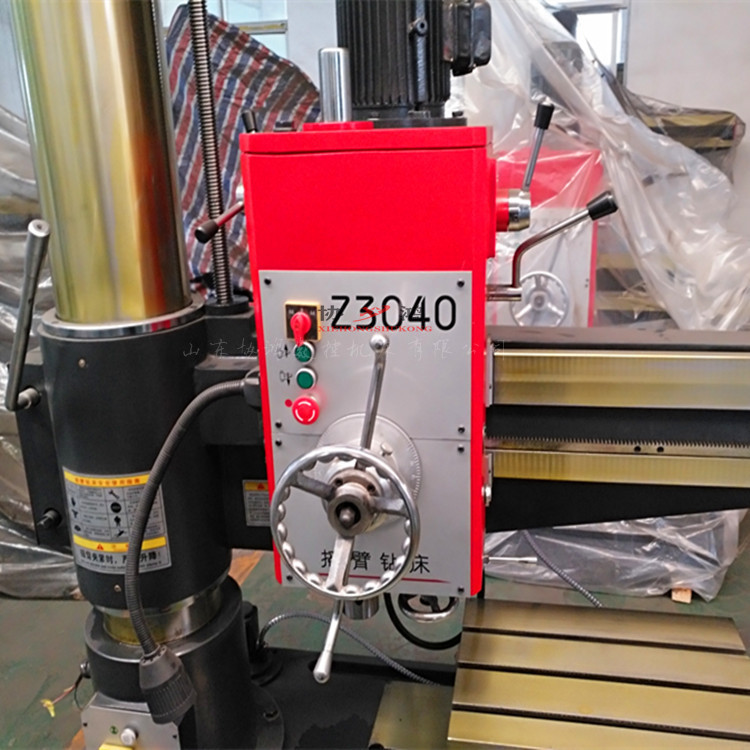

Model Z3040×10 Radial Drill Machine Drilling Diameter mm Cast Iron 40 Steel 32 Spindle to column flange: 1300 mm Spindle housing horizontal travel distance mm 950 Bearing face to base working surface: 1050~260 mm Spindle Stroke mm 280 Main shaft cone bore, Morse 4 size Spindle Speed (12 stages) r/min 32-1200 Spindle Feed Rate 3 Levels: n 0.10, 0.16, 0.25 360-degree swing angle Main Motor Power: 2.2 kW Lifting Motor Power: 1.1 kW Weight: 1500 Kg Host dimensions (Length x Width x Height) mm: 1800×820×2380
