VMC1055 Machining Center, Three-Axis Roller Linear Guideway, Optional System

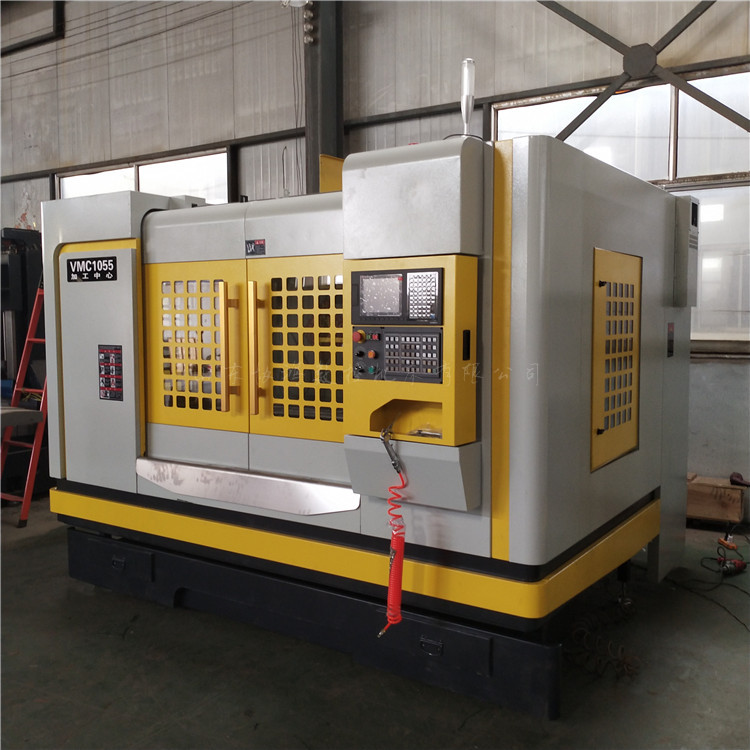

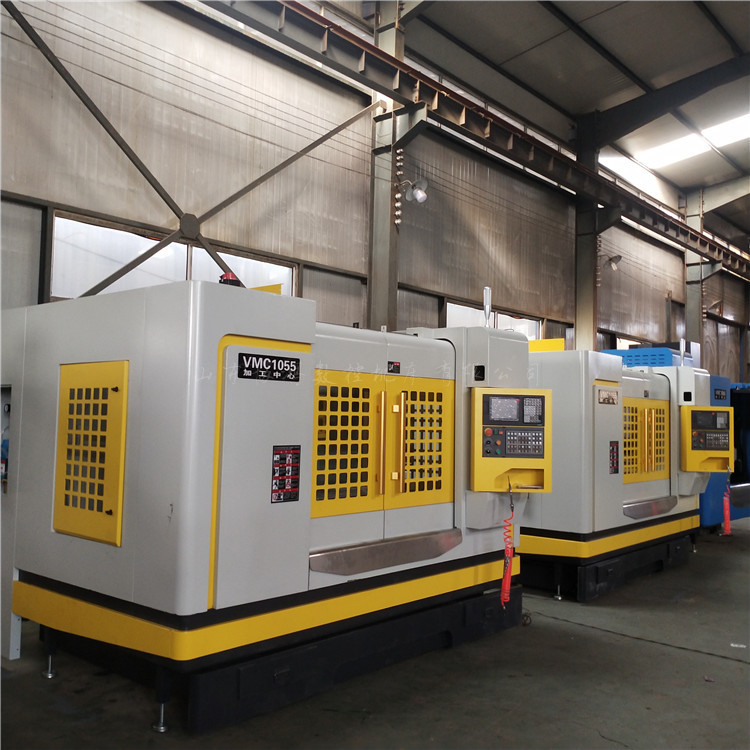

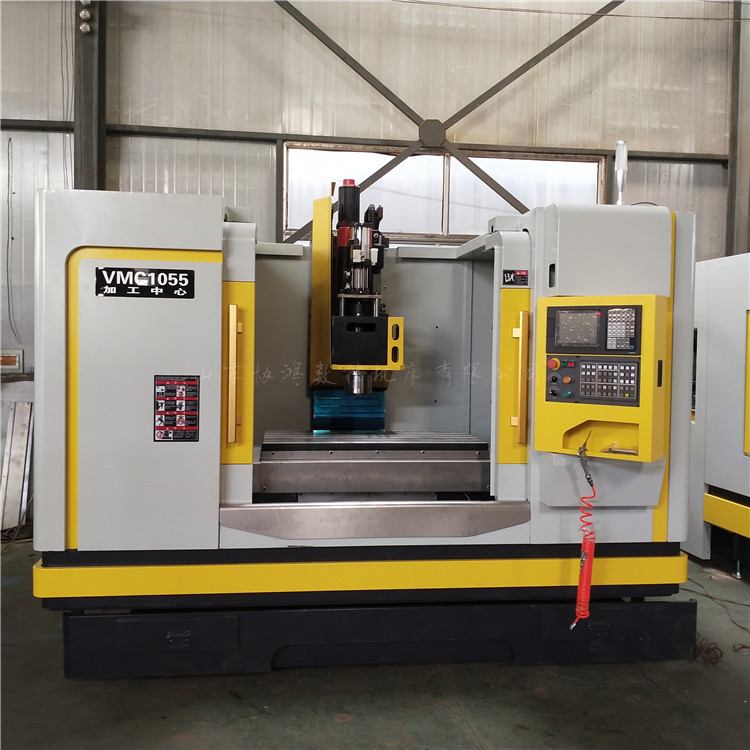

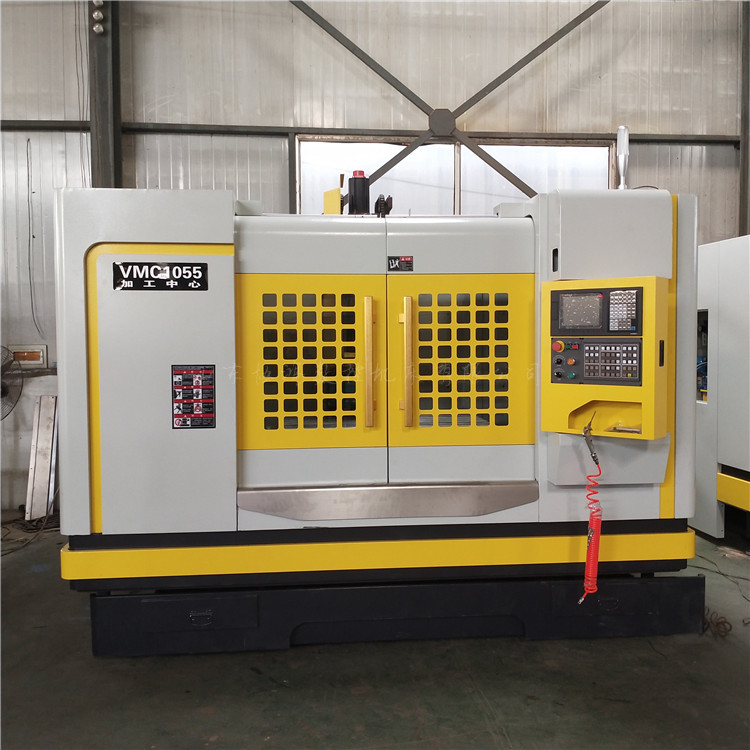

VMC1055 Vertical Machining Center

Brief Description:

Product Model: VMC1055

Workbench Area: 1300×550mm

Work Schedule: 1100x600x550mm

VMC1055 Machining Center Introduction and Applications:

This product is a semi-closed-loop CNC milling machine with servo control for X, Y, and Z axes. It features a compact and reasonable structure and dimensions, with the spindle driven by a servo motor. It can complete various processes such as drilling, milling, boring, reaming, tapping, and thread cutting on complex parts like disks, plates, casings, molds, etc., all in a single fixture. It is suitable for the processing of parts in industries such as automotive components, electrical instruments, motorcycles, tools, hardware, and motors. It is ideal for medium and small batch production and is particularly advantageous for the processing of complex, high-precision parts. It can also be integrated into an automatic production line for large-scale production, ensuring the quality of the parts.

VMC1055 Vertical Machining Center Technical Specifications:

Model: VMC1055

Travel X-axis mm 1000

Y-axis 550 mm

Z-axis: 550mm

Spindle nose to worktable distance: 120~720 mm

Pole guide face to main shaft center distance: 800 mm

Workbench - Size: 1300*550 mm

T-slot (Width x Number of Slots x Spacing) mm 5-18-110

Load Capacity (evenly distributed) Kg 600

Spindle Speed: 8,000 rpm (Belt Drive)

Spindle Drive Type: Belt Drive

Taper # BT-40

Three-axis rapid movement m/min: 36*36*18

Cutting Feed mm/min 1-8,000

Input Unit mm 0.001

Positioning Accuracy mm JIS ±0.005/300mm

Repeatability accuracy mm JIS ±0.003mm

Round-Type Tool Magazine, Number of Tools: 24

Handle Specification: BT40

Selection of Knives  Bidirectional, Any Direction

Tool exchange time sec T-T: 2.8 sec

Tool Change Mechanism  Automatic Tool Change

Knife Weight: 8 Kg

Motor, Spindle, 11KW

Z-axis 3.5 KW

2.2 KW on X/Y axis

X, Y, Z Guides - Screw Type, Ball Screw Ø40/P12/C3

Slider Type: XY Roller Linear Rail 45mm x 4 Sliders, .Z Ball Linear Rail 55mm x 6 Sliders

Fuel Tank Capacity

Cutting Fluid Tank L 250

Lubrication System L 1.7

Numerical Control System Model: FANUC 0iMF

Other Power Capacity KVA 25

Weight: 8,000 KG

Pressure Requirement: KG ≥ 6

Area Requirement (L*W*H) mm: 3200*2480*2800

Primary Parts Supplier

Serial Number Product Name Manufacturer Origin

Controller FANUC Japan

2 Main Shaft Motor FANUC AC Servo Motor, Japan

3-axis motors, FANUC AC Servo Motors, Japanese

4 Main shaft bearing NSK (P4 precision grade) Japan

5 Precision bearings for X, Y, Z axes - Silver/TPI (P4 precision grade) - Taiwan

6 X, Y, Z Ball Screw, Silver or Silver Tai (C3 Precision Grade), Taiwan

7 Linear Guides for X, Y, Z Axes, Silver/Agri-Tech (P Grade), Taiwan

8 Drive Belt, Jian Chun, Taiwan

9 Extendable Guards, Dahan, Made in China

10 Main shaft, Jian Chun, Taiwan

Coupling, Martha, Taiwan

12 Die Casting Cylinder Yuake Taiwan

13 Spindle Cooling System Gao Wen/Baoying Taiwan

14 Electric Box Heat Exchangers, Gao Wen/Bowie, Taiwan

15 Cutting Coolant Motors Taiwell/Walstech Taiwan

16 Three-in-One Combination Mindnan Taiwan

17 Central Lubrication System, River Valley, Taiwan

18 Disc-Type Tool Magazine, Okada (BT-40), Taiwan

19 Overload Protection Device Schneider Germany

20 Close Limit Switch Omron Co., Ltd. Japan

Note: The above are suppliers for the main parts of machine tools. Our company needs to replace the supplier's parts due to technological transformation, but the quality of the replaced parts is not less than the original parts.

Grade of the piece's quality.

Standard Machine Features

Item No. Item

Steel Thread Cutting

2 Portable External Pulse Oximeter

3 Tool Cooling System

4 Enclosed electrical cabinets and heat exchangers

5 Full-coverage Stretchable Protective Shroud for X, Y, Z Axes

6 LED Work Lamps

7 Three-color Alarm Indicator Lights

8 Random Tools

9 Adjust spacers and bolts

Transformer [380V/50Hz]

11 Water Tank & Sludge Reservoir

12 Belt-driven Spindle 8,000 RPM

13 Automatic Lubrication System

14 Three-axis Feeding Collision Prevention System

15 Machine Tool Factory Inspection Record Sheet

16 System Chinese Operating Manual & Machine Tool Operating Manual

Optional Features

1 Voltage Stabilizer

2 Main shaft center water outlet

3 Direct Drive Spindle BT-40 12000 RPM

4 Main shaft oil cooler

5 Fourth Axis (Indexing Disc)

6 Oil-Water Separator

Automatic Tool Measurement

8 Tool Damage Detection

9. Traction Chipper & Chip Collection Vehicle

10 Base Bending Unit

11 Auto-Disconnection System
