Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 120000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

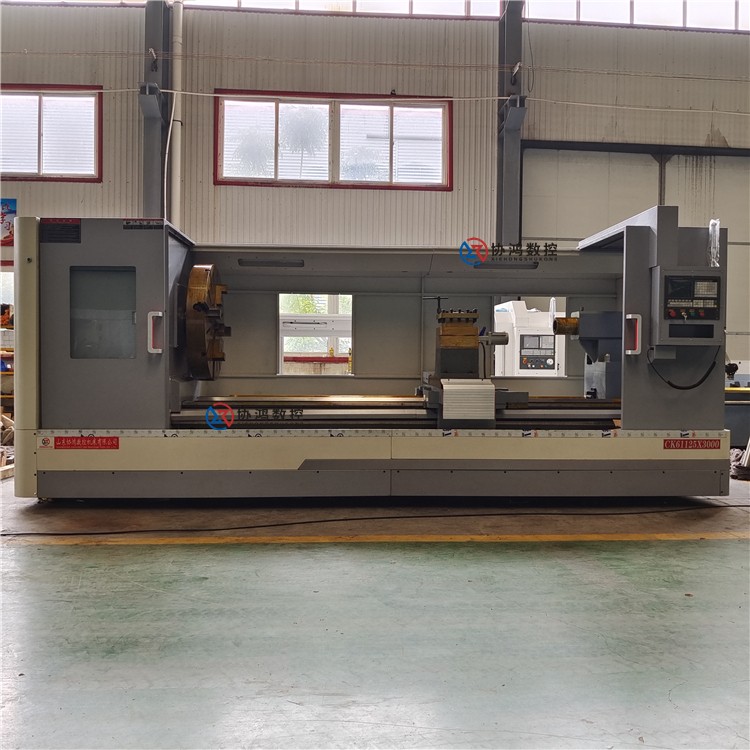

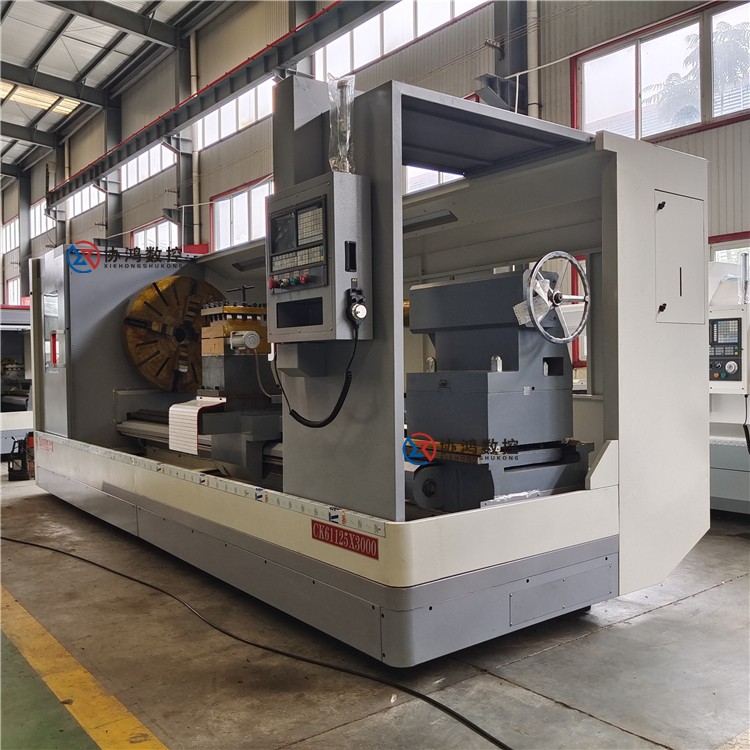

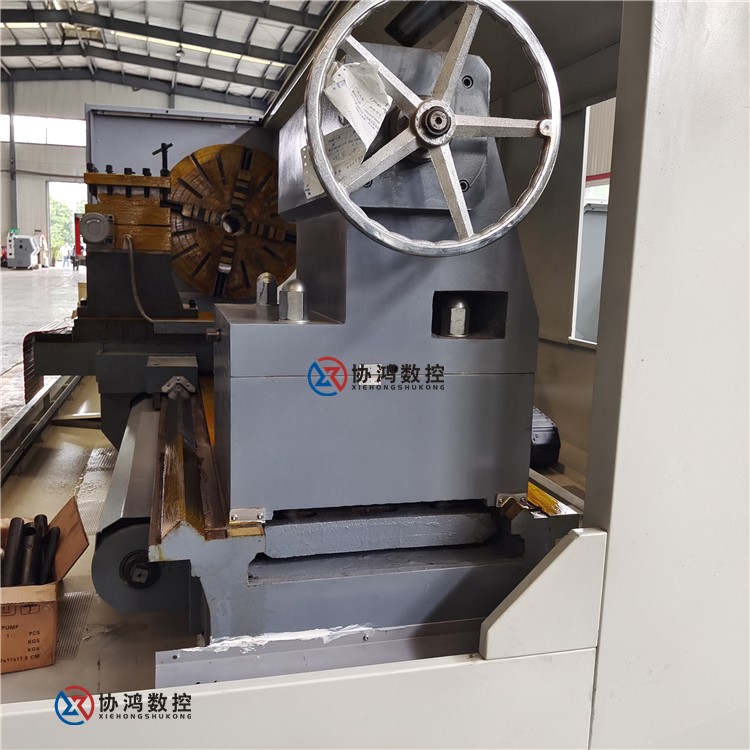

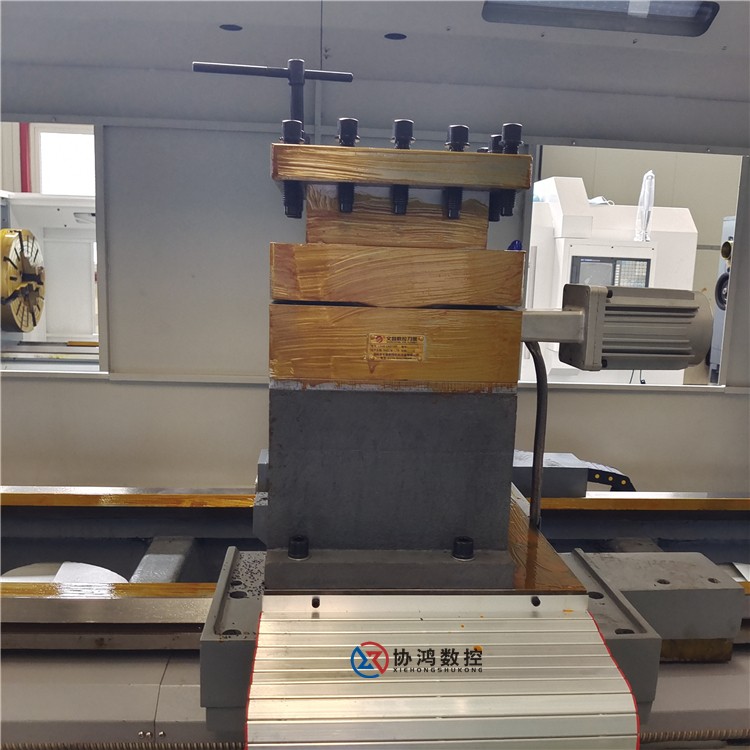

Category Model Unit Bed frame rotation diameter: Φ1250 mm Trolley rotation diameter: 900mm (Φ) Cutting Diameter mm Φ1250 Processing Length: 1000-5000mm Effective Processing Length: 2850 mm Travel of X/Z Axis mm 530/3000 X/Z Axis Displacement Unit mm 0.001 Bore diameter of main shaft: 105mm Spindle Speed Ranges 4-step Infinite Variable Speed Spindle Maximum Speed rpm 30-84/53-150/125-350/300-835 Main Motor Power (Variable Frequency) kW 11kW VFD 11 kW X/Z axis N.m 10/15 X/Z Axis Rapid Traverse Speed: 4/6 m/min 刀架 Type: 4-Station Electric Knife Holder Shaft Size: 32mm x 32mm Repeating positioning accuracy of knife holder: mm ≤ 0.004 Tailstock sleeve diameter: mm Φ75 Tailstock Sleeve Travel mm 200 Tailstock Tip Taper Hole - M6 Machine Tool Net Weight: 5,500 kg Machine Tool External Dimensions (Length x Width x Height) mm: 4200*1820*1780 Power/Current Demand: 20kW/30A
