Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 118000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

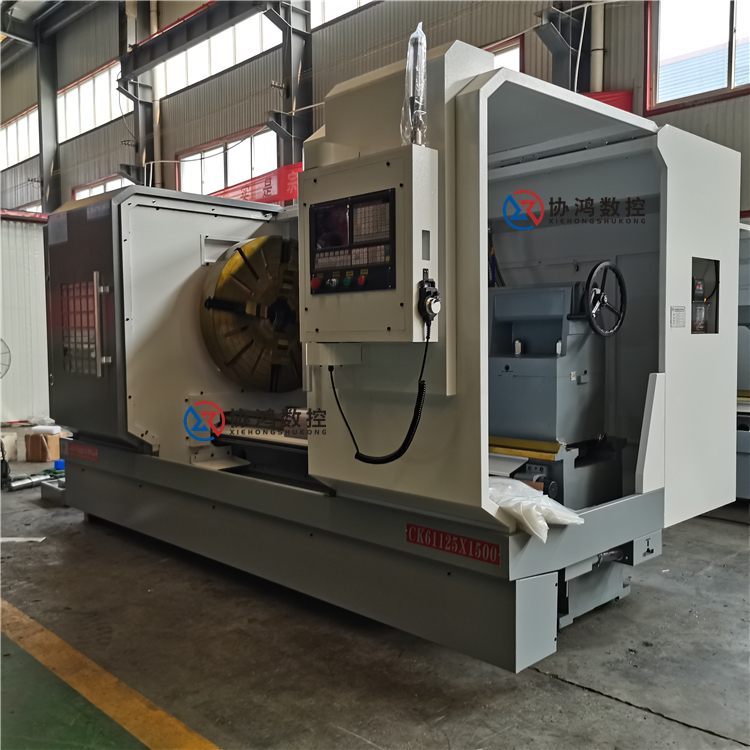

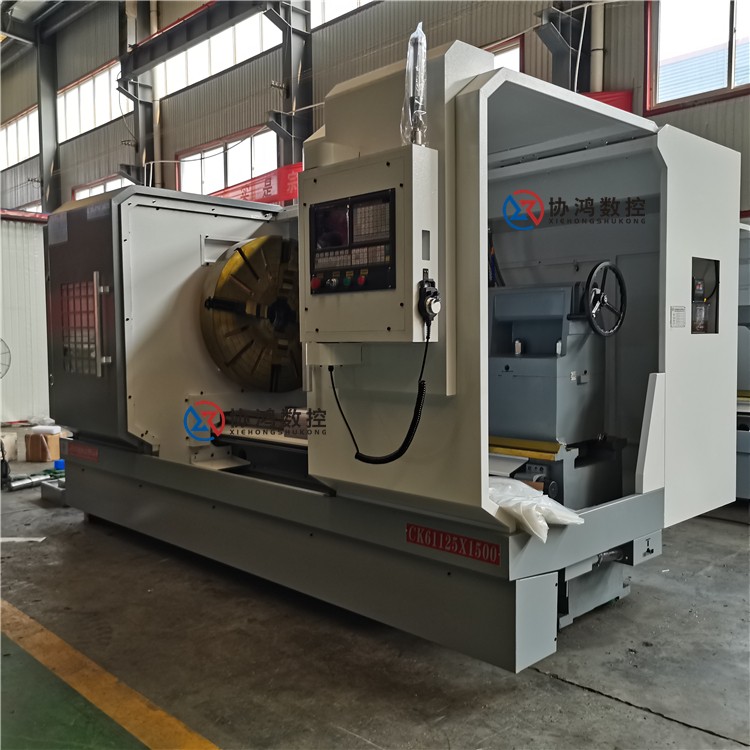

Swivel diameter on bed: 1250mm Swivel diameter on the blade holder: 860mm Track Width: 755mm Spindle End A2-11/15 Bore diameter of main shaft: 105 mm Spindle Speed: 30-835 RPM Spindle Manual Gearbox Four-Speed Trolley Z-axis movement unit 0.001mm/min Trolley X-axis movement unit 0.001mm/min Trolley X-axis travel 1250mm Trolley Z-axis travel 3000mm Processing Length: 2850mm Trolley rapid movement speed: 6000/4000 mm/min in X/Z direction Tailstock sleeve conical bore, Morse 6 size Tailstock sleeve diameter: 150mm Tailstock sleeve stroke: 250mm Main Motor Power: 18.5 kW Z-axis repeat positioning accuracy: 0.015mm X-axis repeat positioning accuracy: 0.01mm Repeating positioning accuracy of electric knife holder: 0.002mm Overall Weight (Approx.) 10,000 Kg Machine tool external dimensions: 5600x2200x2400mm
Phone Consultation
