Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 104000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

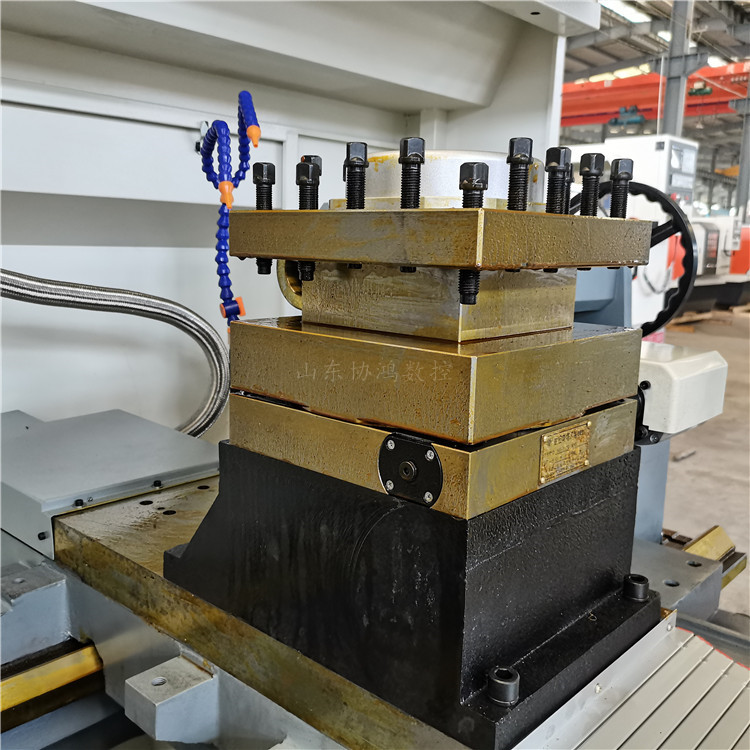

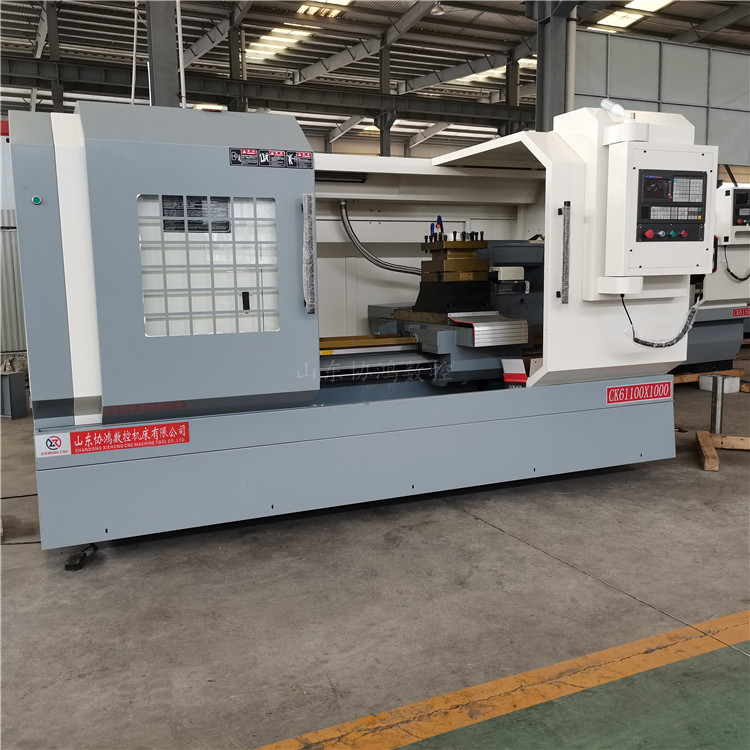

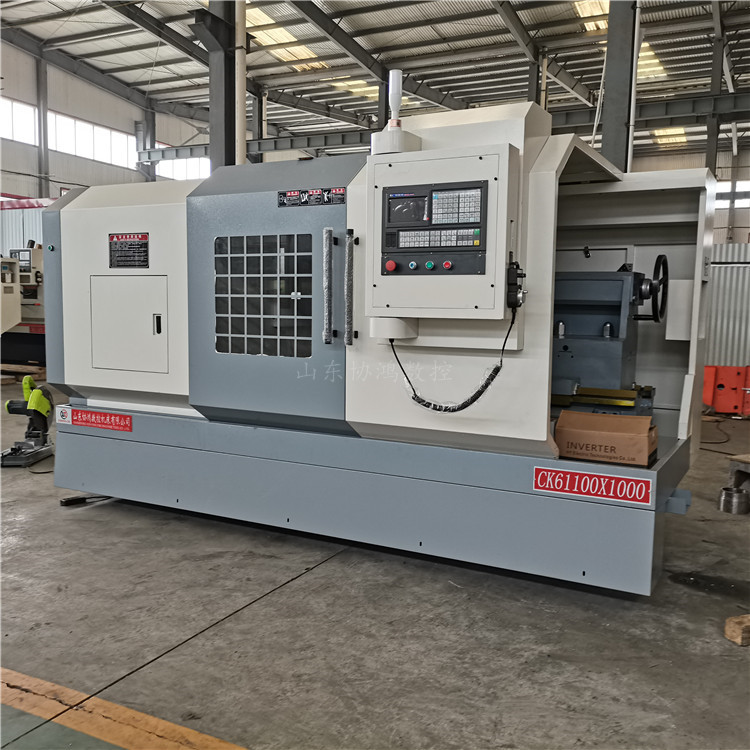

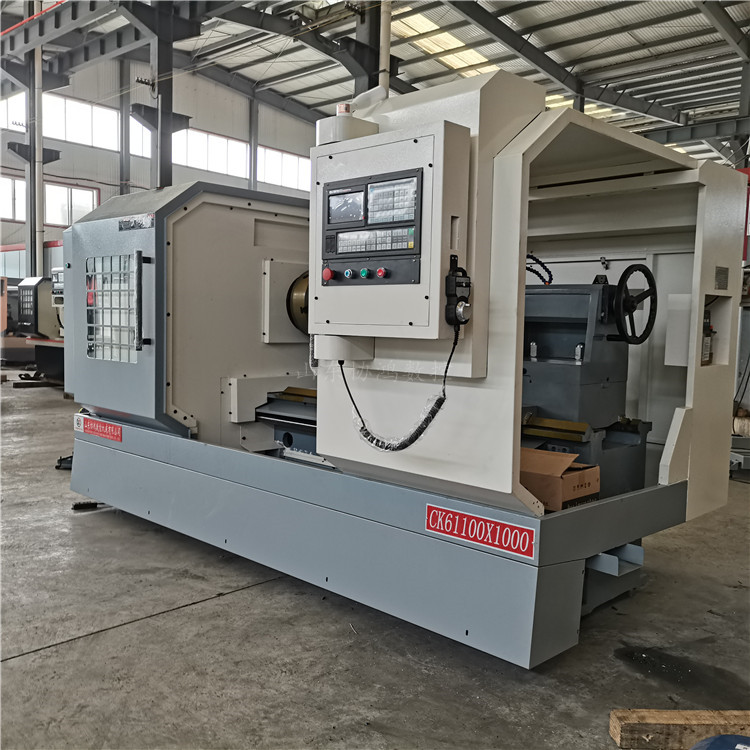

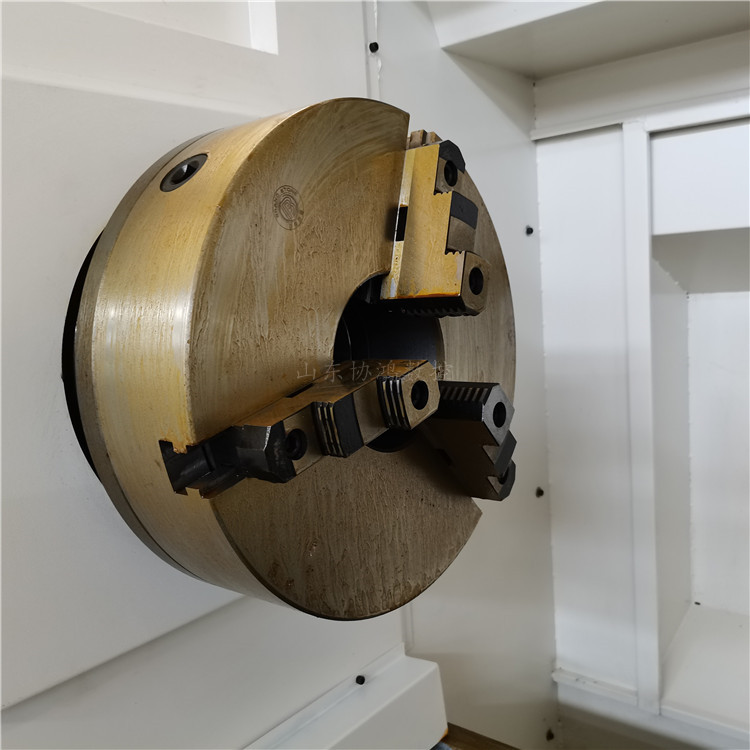

Key Technical Parameters Units CK61100 Bed frame rotation diameter: 1000mm Swivel Diameter on Horizontal Slab: mm 610 Part Length: 1000 mm Bed Frame Rail Width: 755mm Bed Frame Load Range: T 6 Bore Diameter Range mm 105 Bore Diameter Taper Φ140/MT6 Spindle Nose Type A2-15 Main shaft speed steps: 4-step variable frequency VF Spindle Speed Range: 4-300 rpm Chuck Specification mm Φ1000 Manual Four-Jaw Chuck Tool Holder Type 4-Station Electric Tool Holder Tool Size: mm 40x40 X-axis travel 520 mm Z-axis travel mm 850 X-axis rapid traverse speed mm/min 4000 Z-axis rapid traverse speed mm/min 6000 Tailstock sleeve diameter: Φ160 mm Tailstock Sleeve Taper - MT6 Tailing sleeve stroke mm 300 Spindle Motor 15 kW Cooling Pump Motor, kW 0.125
