Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 50000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 777 Tai

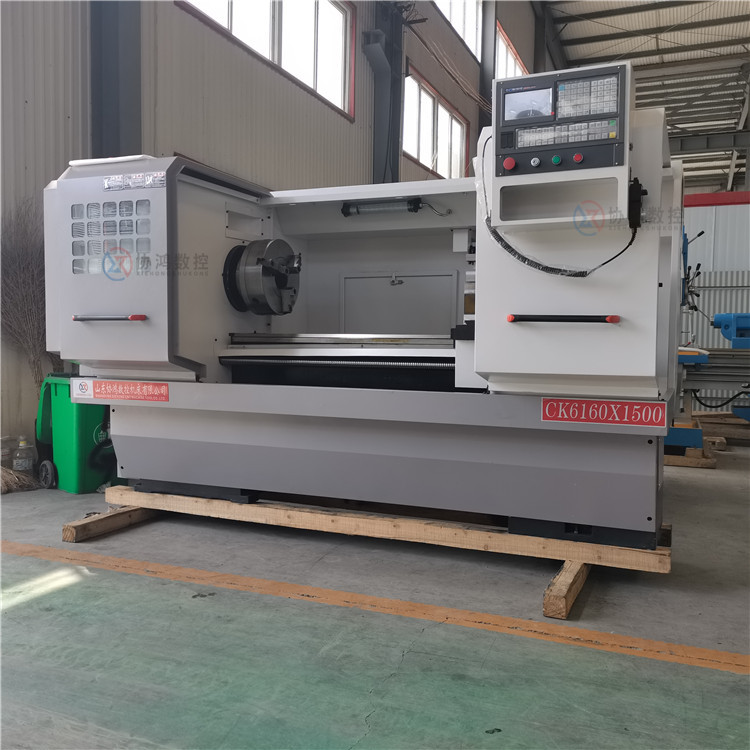

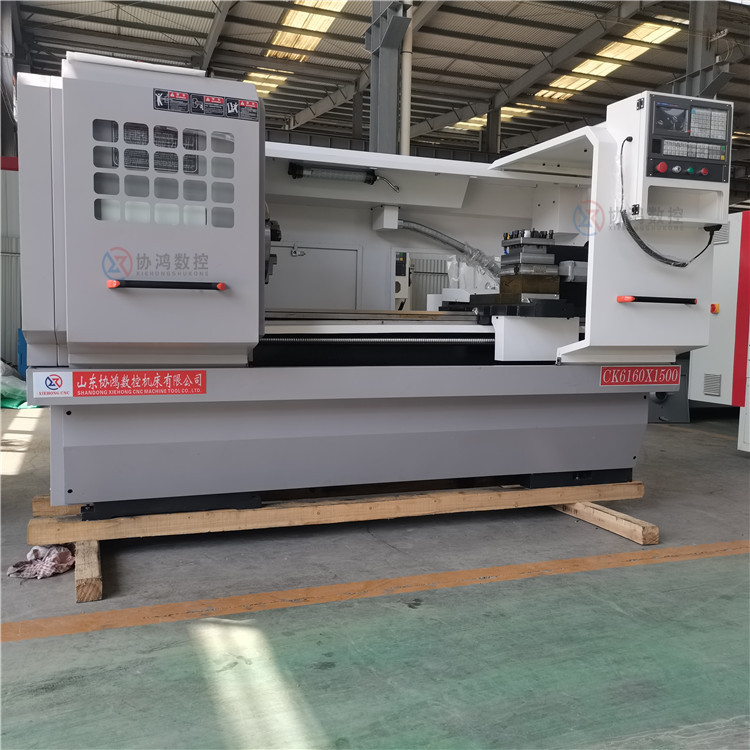

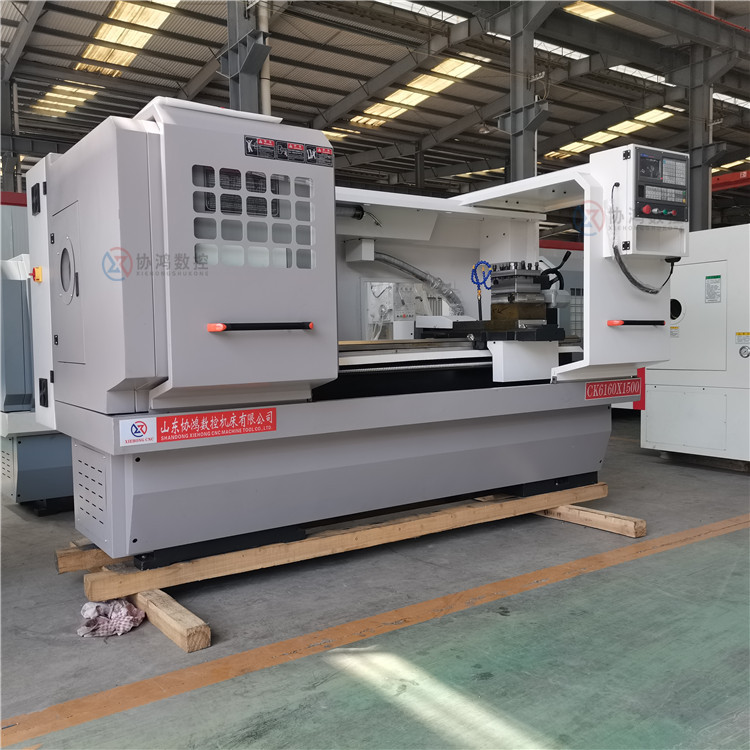

1. This machine tool is a high-speed, high-precision, and highly reliable CNC machine. Bed base, bed body, The headboard cabinets and other main components are cast from high-strength materials, ensuring the stability of machine tools for long-term use. 2. The machine tool has high positioning accuracy, smooth chip removal, and is suitable for high-speed, high-precision machining. 3. High-speed, high-precision, and high-rigidity spindle, variable-speed spindle motor, capable of achieving higher spindle speeds. The spindle unit is assembled within a temperature-controlled room, followed by a continuous 72-hour temperature-run-in period. After installation, it undergoes a further 72-hour trial operation. Ensure reliable high-speed, high-precision performance. 4. Select an electric knife holder. 5. Feeds in the X and Z directions utilize precision ball screws. The servo motor is directly connected to the screw through a high-torque, low-inertia imported elastic coupling, and utilizes an advanced centralized automatic lubrication system. Timed and precise automatic intermittent lubrication, ensuring stable and reliable operation. 6. The machine tool protection features a full-coverage design, offering enhanced ergonomics and unique aesthetics, reliable waterproof and chip-resistant protection, and easy maintenance. Model CK6160 Bed frame rotation diameter: Φ600 mm Skid Turntable Diameter mm Φ350 Cutting Diameter mm Φ600 Processed Length: 850mm Travel of X/Z axis mm 300/1500 X/Z Axis Displacement Unit mm 0.001 Bore Diameter: 82 mm (Φ 82) Spindle Level Number: Infinite Main shaft maximum speed: 20-1000 rpm Main Motor Power (Variable Frequency) kW 11 VFD 11 kW X/Y Axis N.m 5/7.5 X/Z Axis Rapid Traverse Speed m/min 6/8 4-Station Electric Knife Holder (Wenchang) Toolholder Size: 25mm x 25mm Repeat positioning accuracy of knife holder: mm ≤ 0.004 Tailstock bushing diameter mm Φ75 Tailstock Sleeve Stroke: 200 mm Tailstock Tip Taper Hole, M5# Machine Tool Net Weight: 2800 kg Machine Tool Dimensions (Length x Width x Height) mm 2940*1300*1680 Power Demand (Power/Current) kW/A 15kW/20A
