Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 124000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

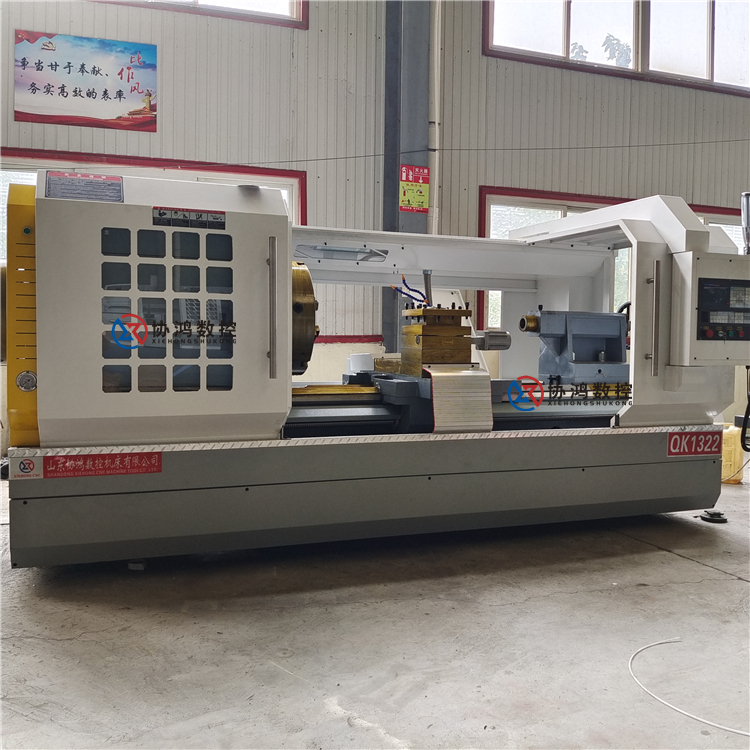

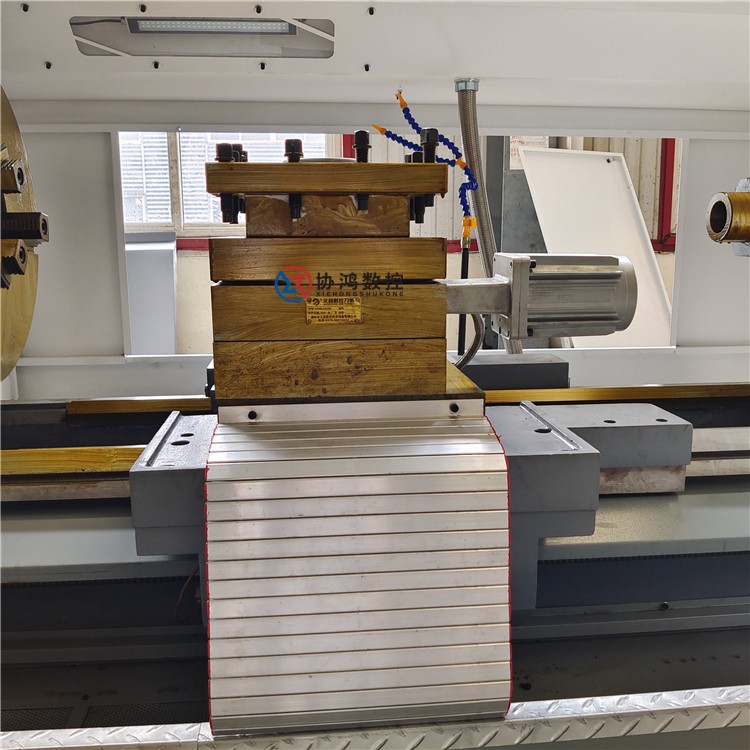

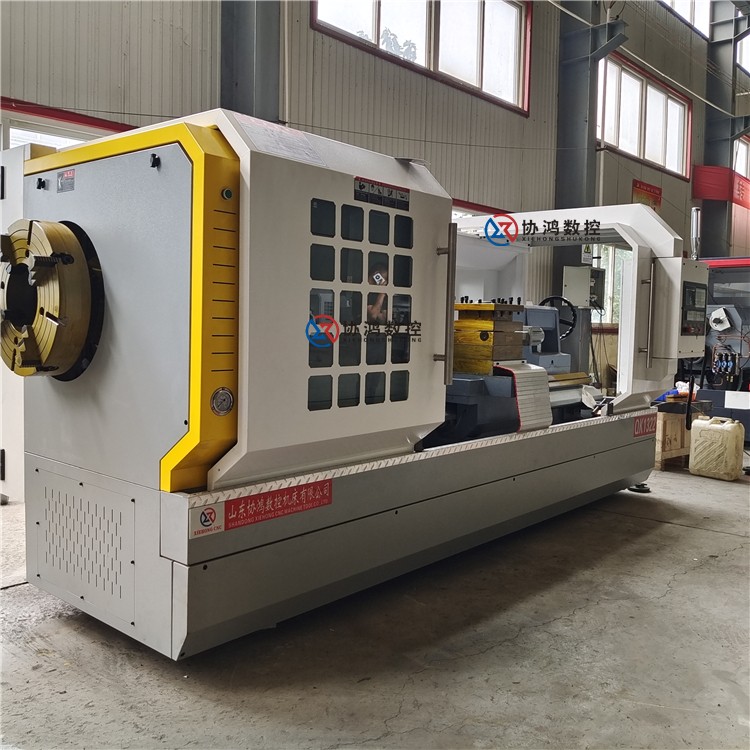

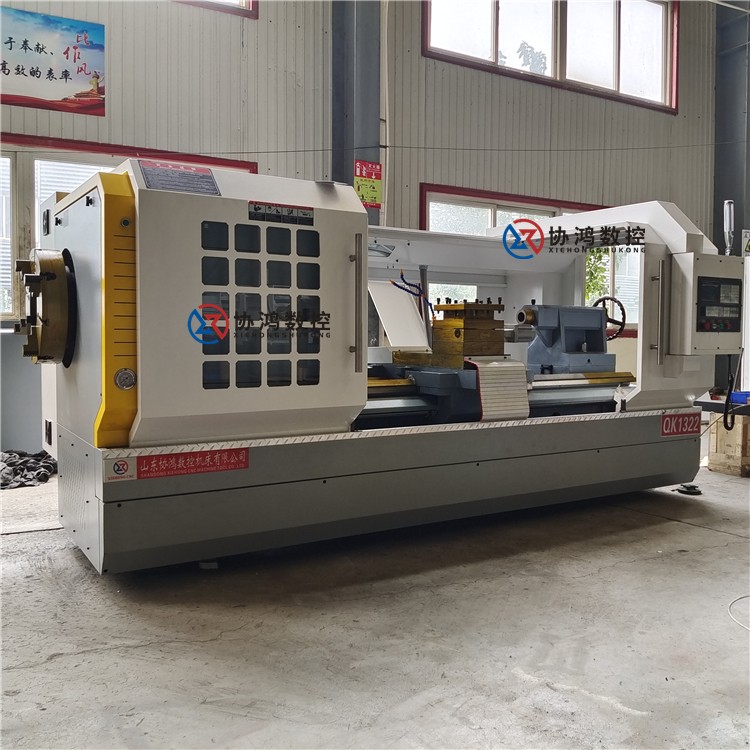

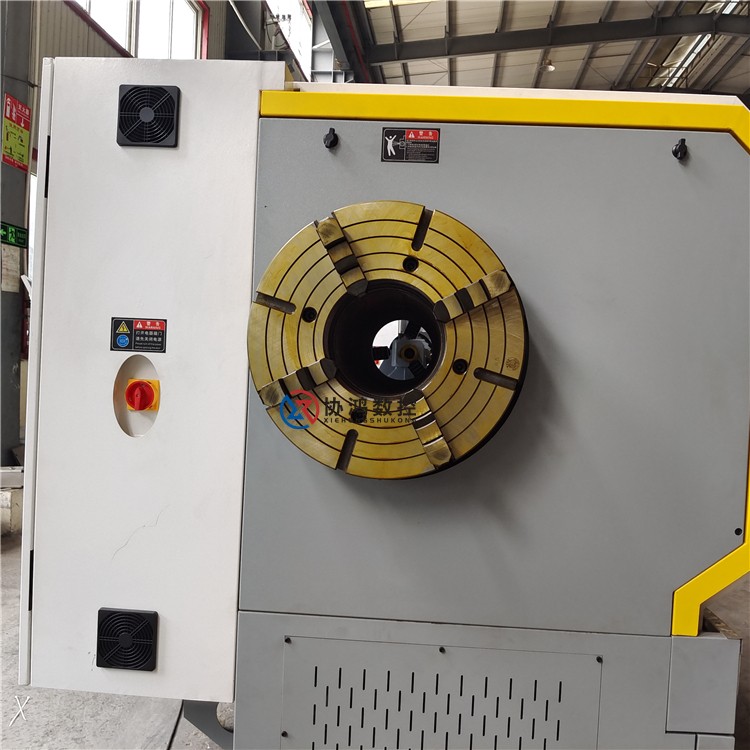

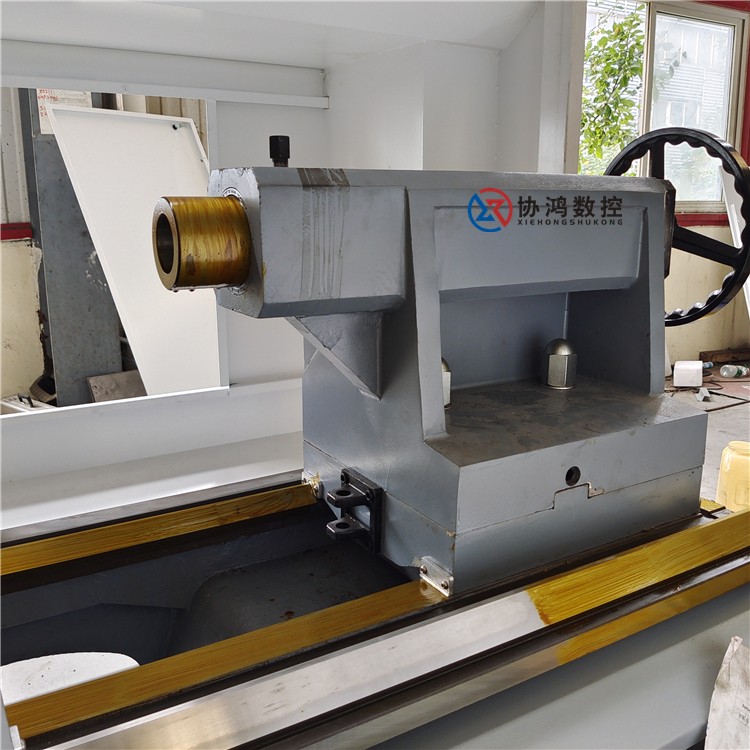

Machine Tool Model: QK1322 Bed frame rotation diameter mm 800 Plate rotation diameter mm: 480 Processing Length: mm 1000/1500/3000 Spindle Drive Type: Variable Frequency Infinite Speed Control Main shaft speed grades - Infinite Spindle Speed: 25-1600 rpm Spindle Head Type C11 Bore end taper - Metric 120, 1:20 Bore Diameter of Main shaft: 220mm Main Motor Power (KW) 11 X/Z axis positioning accuracy mm 0.025/0.03 Repeatability accuracy of X/Z axis: 0.01/0.015 mm Workpiece Machining Precision: IT6-IT7 Workpiece Surface Roughness Ra1.6 X quick shift speed mm/min 4000 Z Rapid Traverse Speed mm/min 5000 Tailstock sleeve diameter mm 100 Tailstock sleeve inner hole taper - MT6# Tailstock sleeve travel mm 250 Turret Type - Electric Vertical 4-Spindle Turret Ball screw diameter * pitch (mm) X: 32*0.5 Z: 50*1.0 刀架 travel X/Z (mm): 500/1200, 1650, 3100 Machine Tool Dimensions (L×W×H) mm: 3700*1820*1780 Machine Tool Weight: 3,800/4,100/5,400 kg
