Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 25800.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

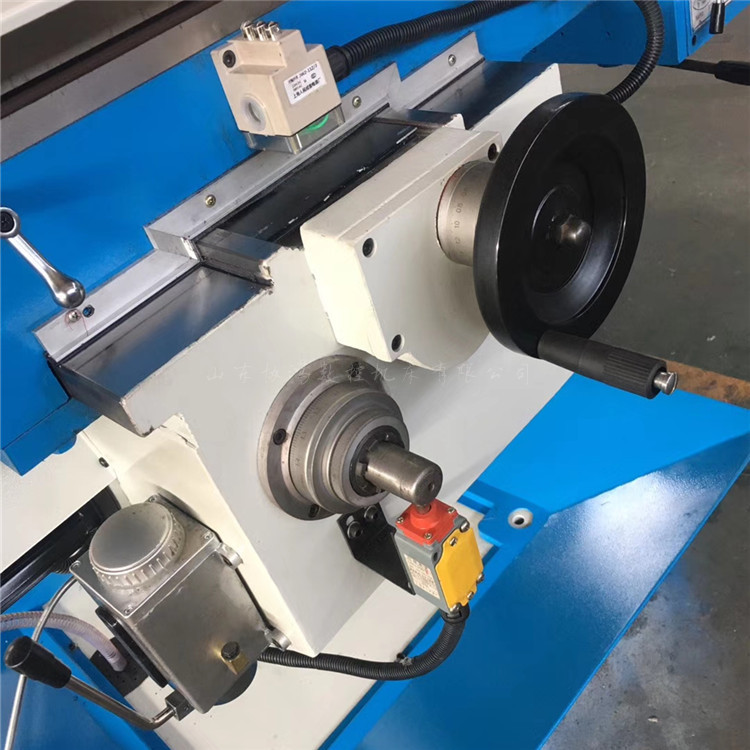

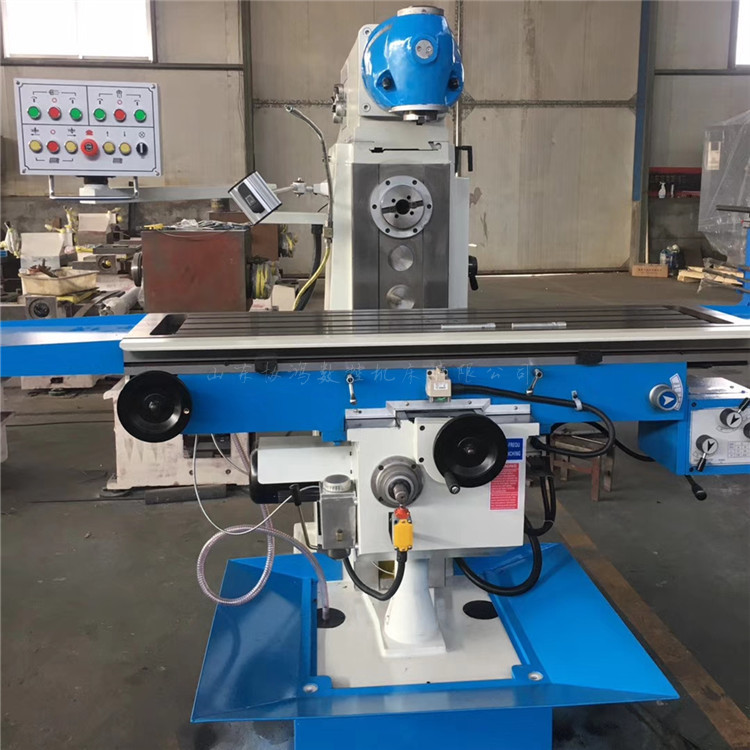

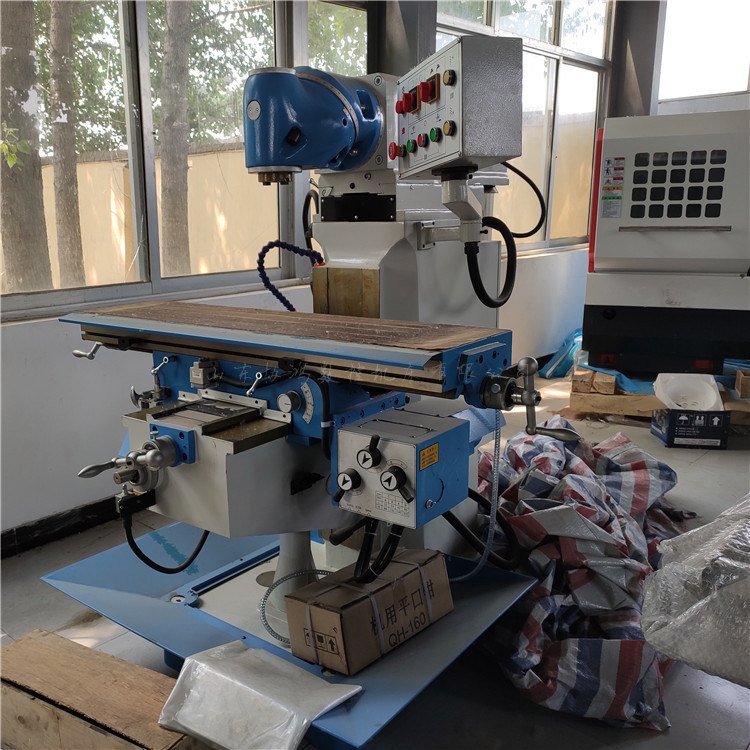

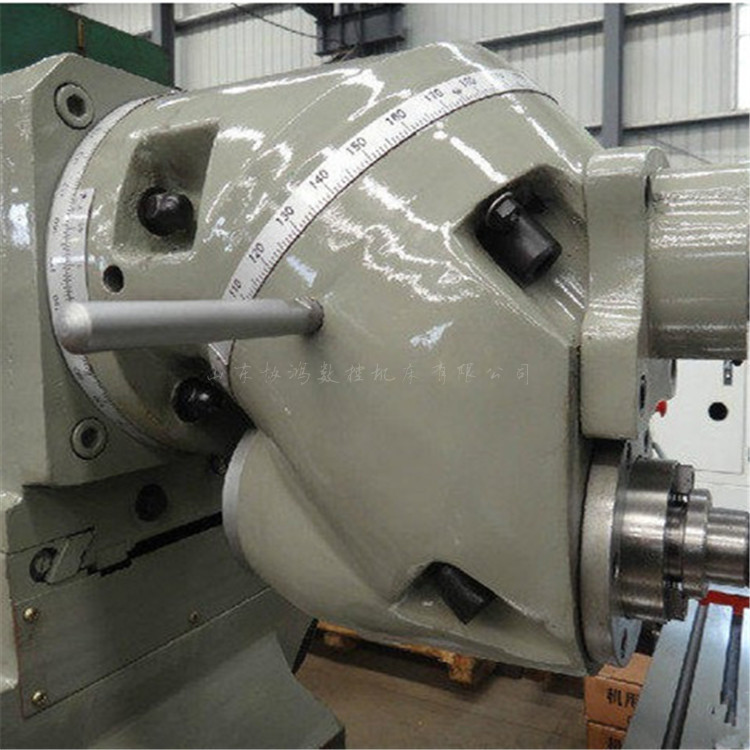

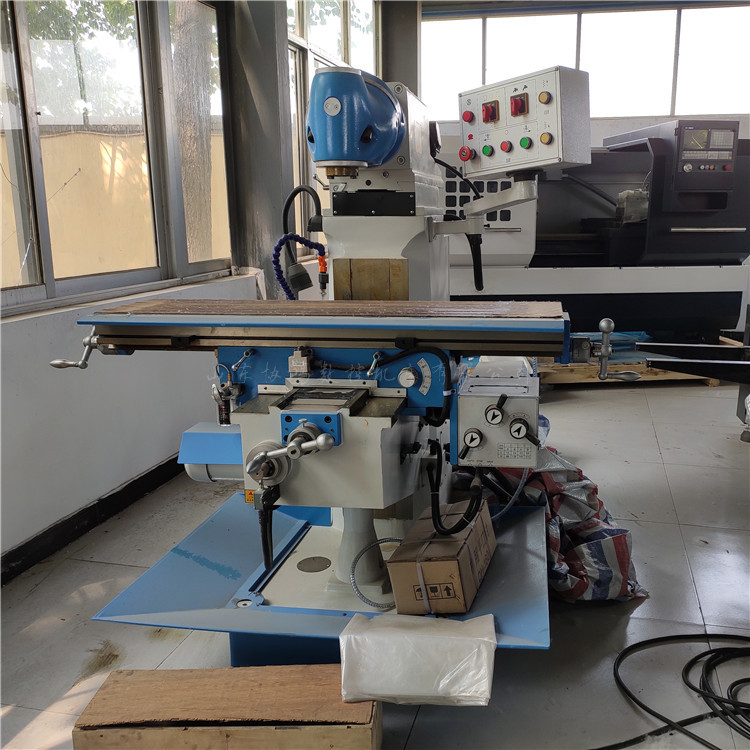

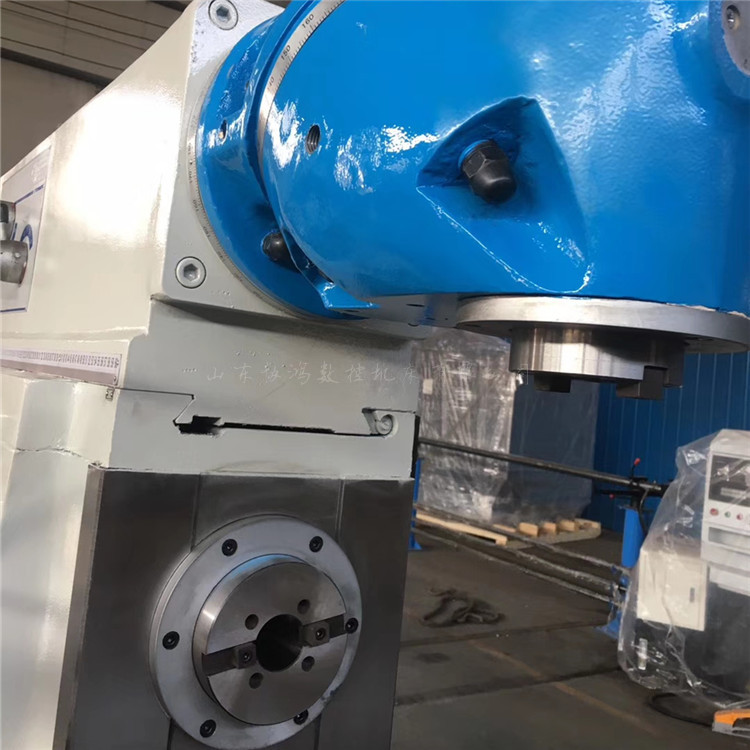

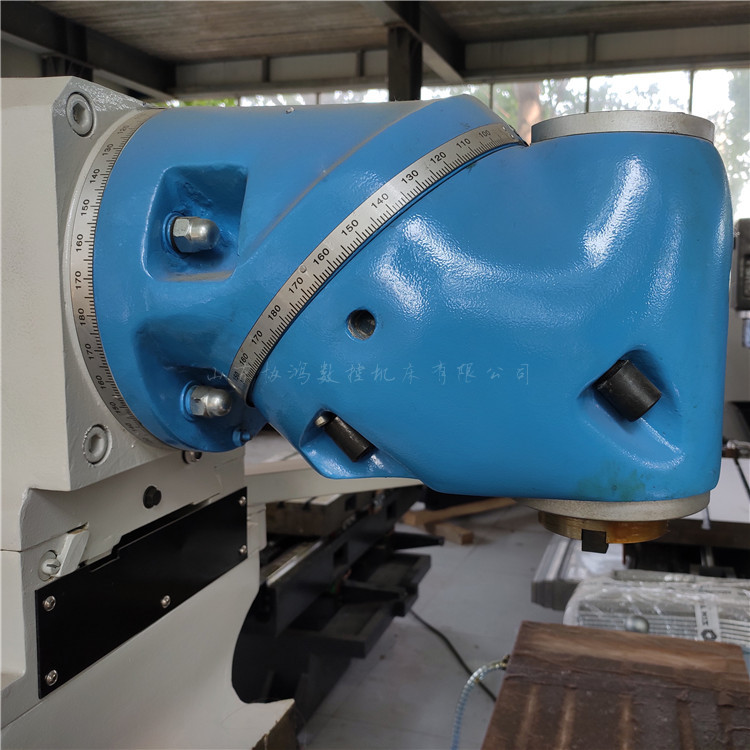

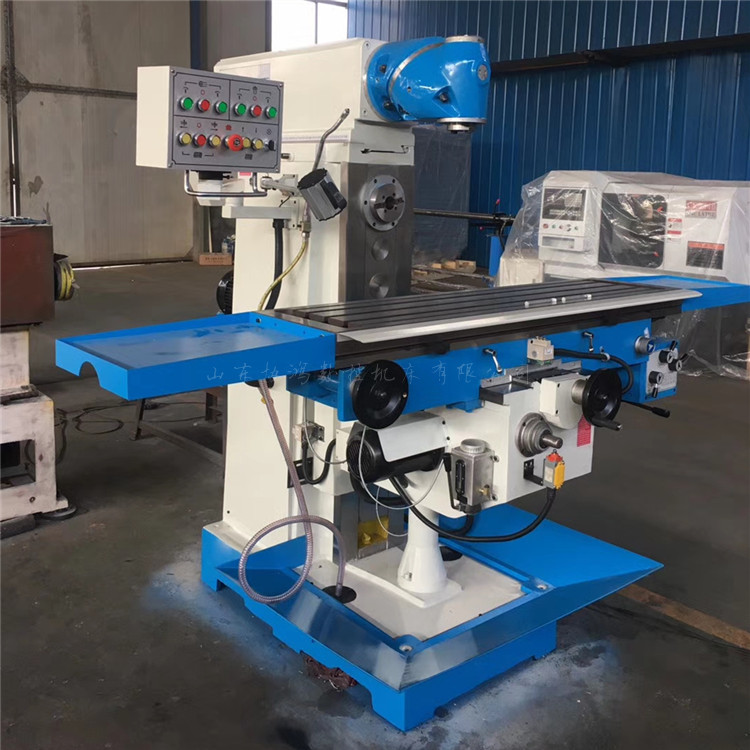

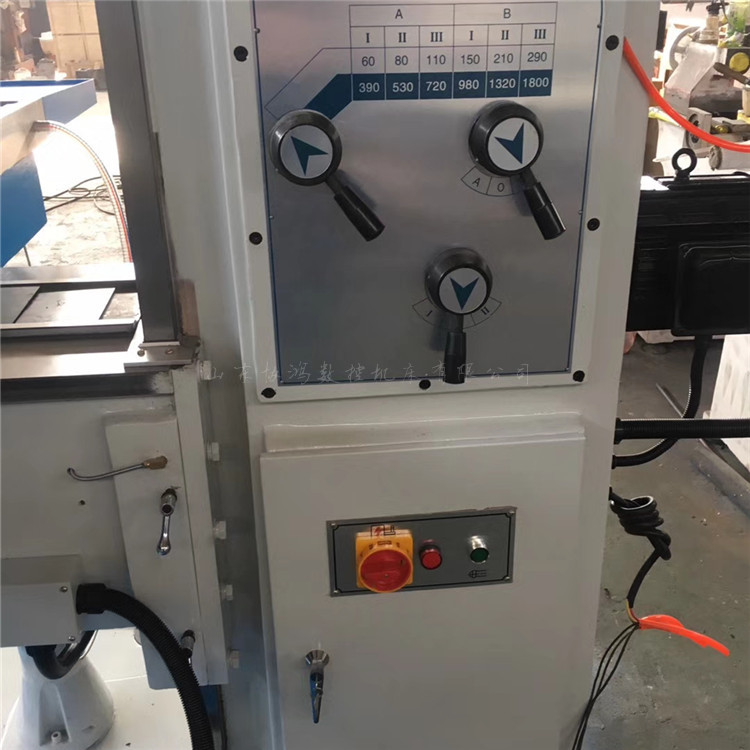

Unit XQ6232 Headstock Milling Machine Main shaft bore taper 7:24 ISO40 Centerline to worktable distance mm 350-850 Spindle Center to Pillar Guideway Face Distance: 210-710 mm/min Spindle Speed Range: 11 steps 35-1600 rpm (V), 8 steps 40-1300 rpm (H) Swivel Angle of Milling Head: 360° Workbench Surface Size: 1500*320 mm Workbench Travel (Vertical/Horizontal/Vertical Direction) mm 900 Table longitudinal/horizontal feed speed: 320 mm/min Workbench Vertical Travel Speed: 500 mm/min Workbench feed range: 8 steps, 15-370 rpm; Rapid: 540 mm/min Workbench T-slot (Number/Width/Spacing) mm 3*18*80 Main Drive Motor Power: 2.2 kW (V) 4 kW (H) Workbench Feed Motor Power: 750 W Lift Platform Actuator Motor Power: 750 W Cooling pump motor power: 90W Cooling Pump Flow: 25 L/min Machine Tool Dimensions: 2220*1790*2040 mm Machine Tool Weight: 2100 kg
