Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 24000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

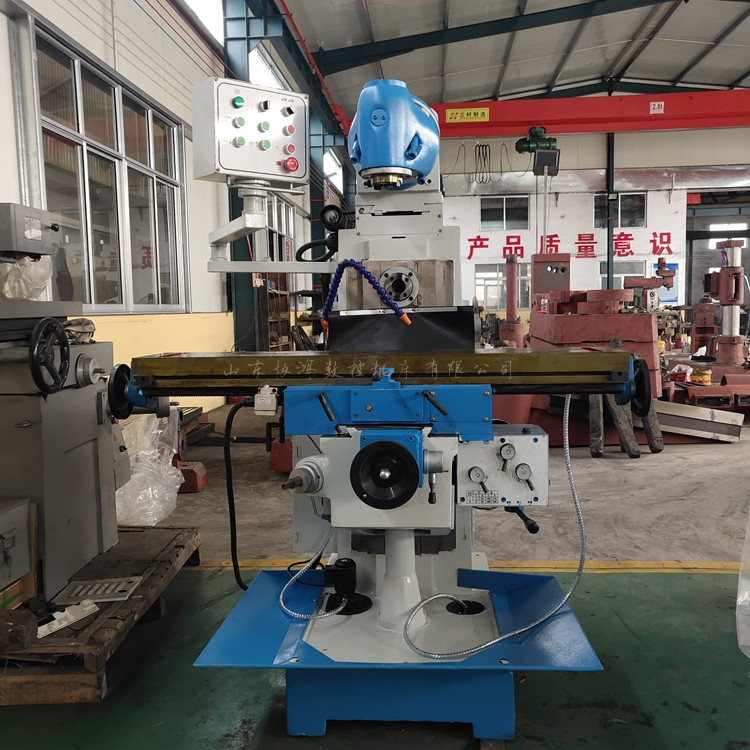

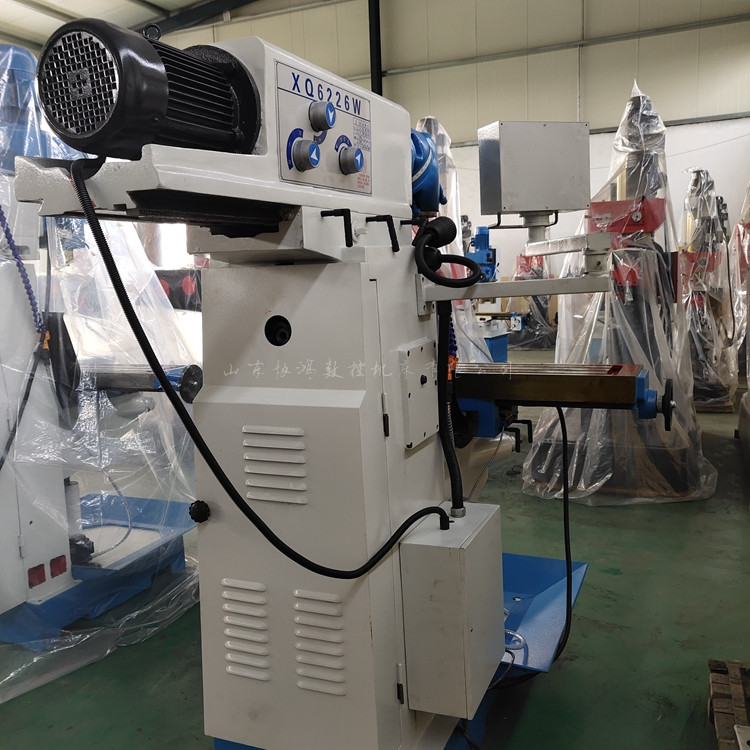

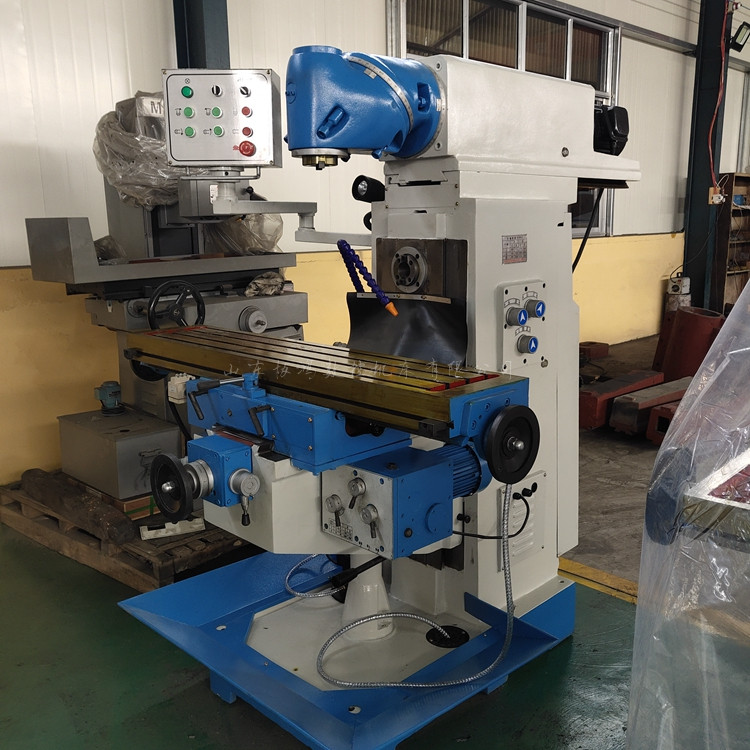

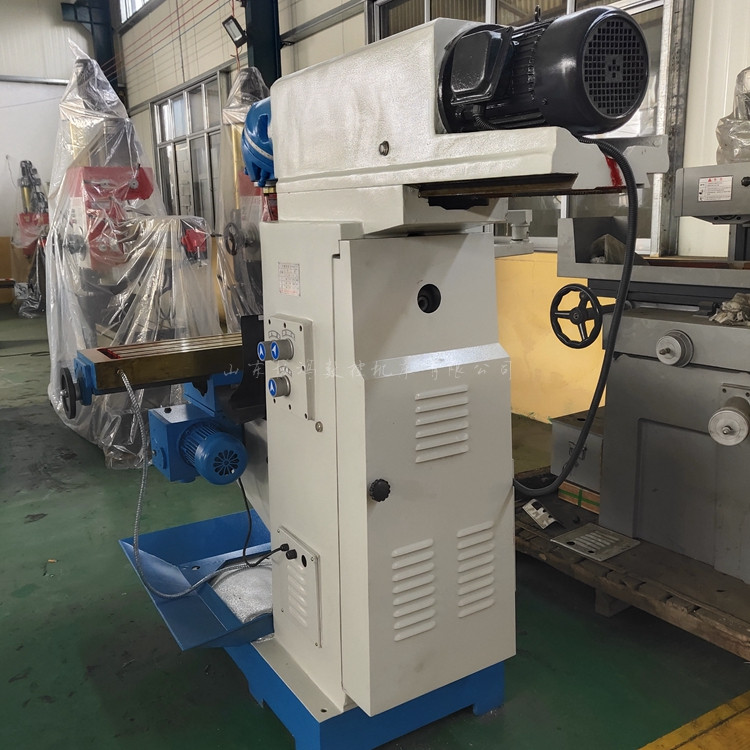

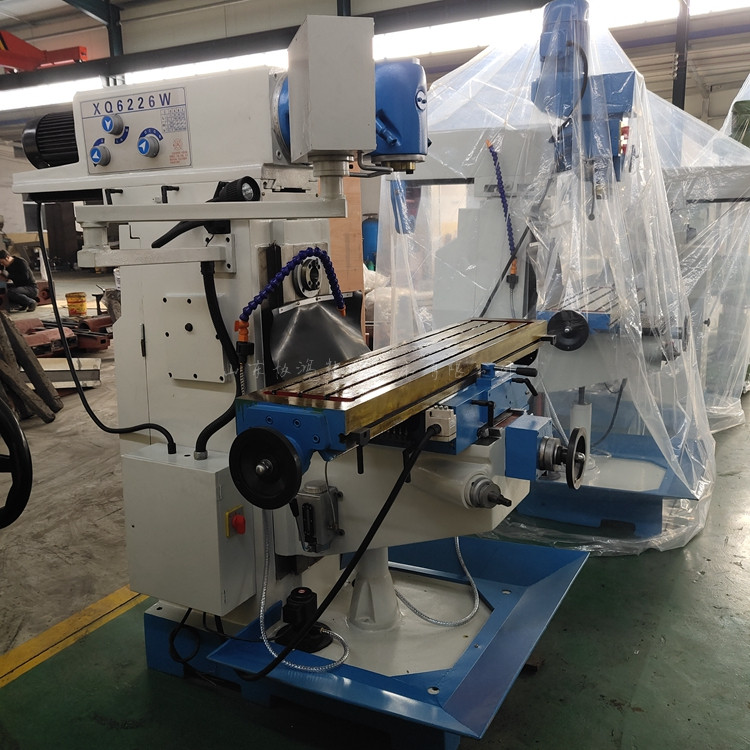

All products are covered by a three-year warranty service (gear is one-year warranty due to its wear and tear), with lifetime maintenance for machine tools. The appearance is elegant and tasteful, with a balanced and harmonious overall layout. V Mihran high strength castings, high rigidity, high precision, long lifespan Guideways and workbenches are heat treated, tempered and hardened, and precision ground. Guided tracks are coated with Turcite-B high-wear plates for smooth and effortless operation. The V-guide rail has been super-frequency quenched. Model XQ6226 Main shaft cone hole taper 7:24 ISO40 Bearing face to worktable distance: 100-500 mm Center distance from main shaft to column guide rail face mm 0-500 Spindle Speed Range: 35-1600 rpm 360° rotary angle for face mill head Workbench Size: 1120×260 mm Workbench Travel (Vertical/Horizontal/Axial) mm 580/270/400 Table feed speed (vertical/horizontal) 18-308 mm/min (8 steps) Workbench T-slot Quantity/Width/Spacing mm 3/14/63 Main drive motor power: 2.2 kW Workbench Feed Motor Power: 250 W Cooling Pump Motor Power: 90 W Cooling Pump Flow Rate: 25 L/min Machine Tool Net Weight/Gross Weight kg 1150/1300 Dimensions: 1665×1500×1750 mm
