Factory Direct Sale XQ6036 Vertical & Horizontal Milling Machine with Strong Cutting Ability & Elevating Table

The XQ6036 milling machine is equipped with various cylindrical, disc, angular, form, and face milling cutters to process flat surfaces, inclined surfaces, grooves, and more. With the use of appropriate milling machine accessories, it can also fabricate gears, cams, arc-shaped slots, and spiral surfaces for special-shaped parts. Equipped with multi-functional milling heads, round worktables, indexing heads (special accessories), and boring bars, it can perform hole machining on medium and small parts. Adding a vertical milling head allows for cutting with vertical milling cutters, further expanding the machine's application range. This machine is suitable for various mechanical processing industries.

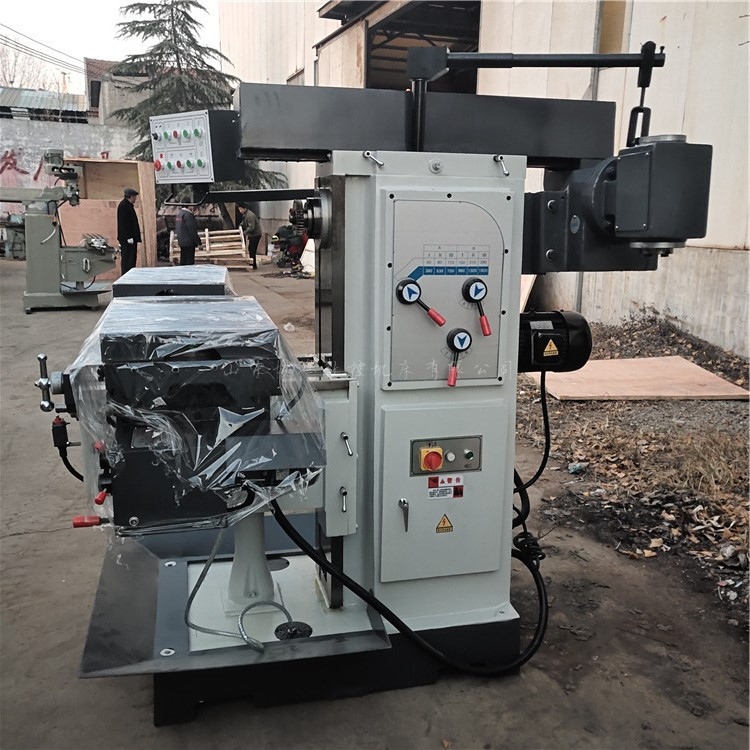

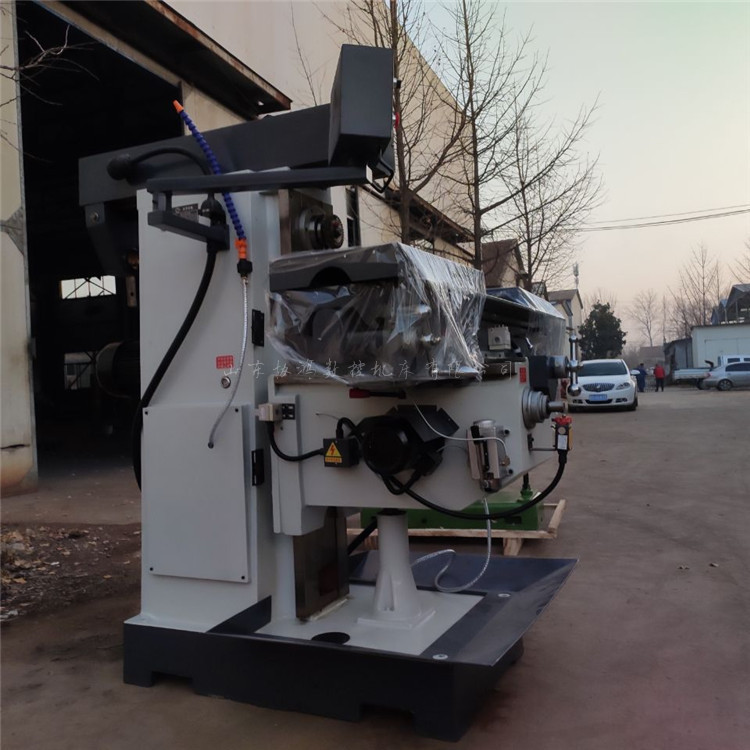

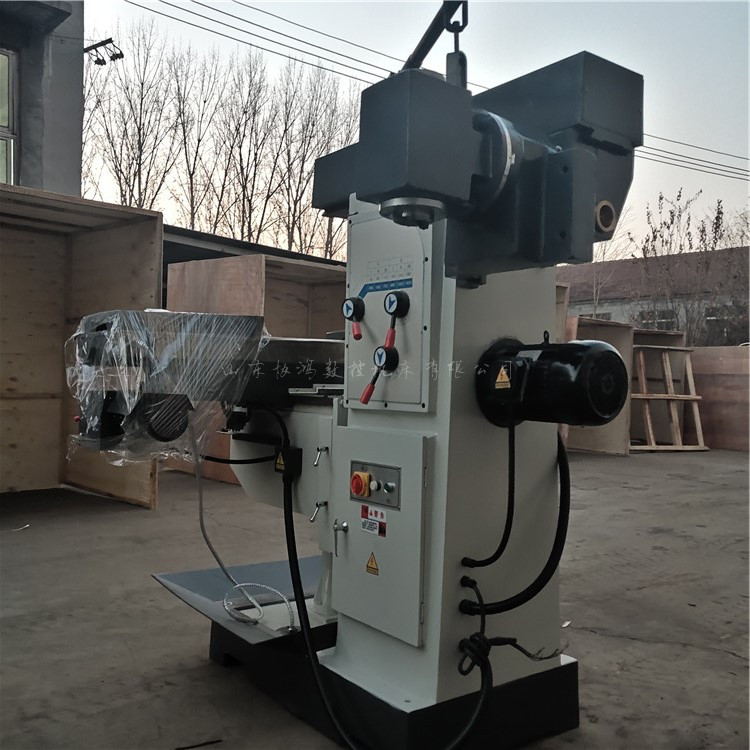

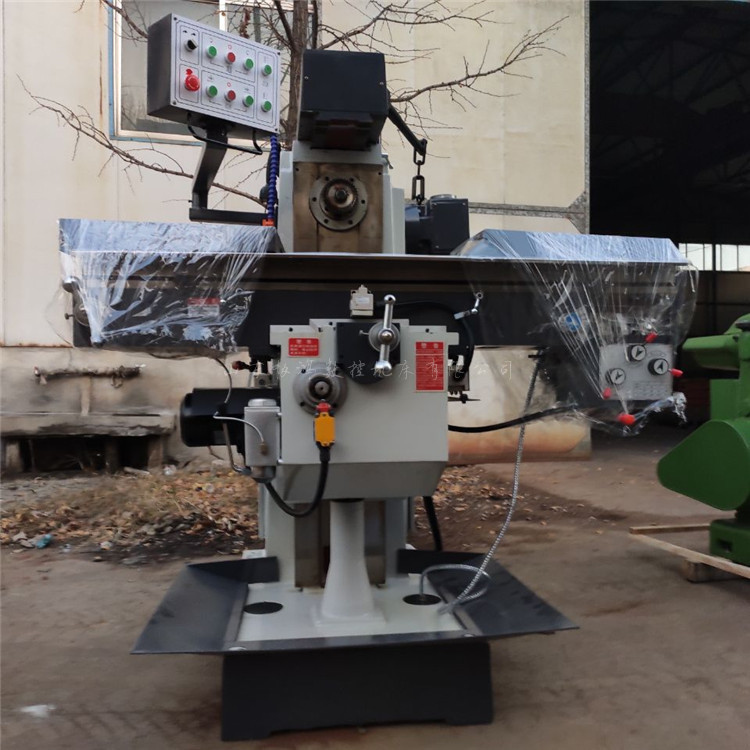

XQ6036 Milling Machine

Spindle taper 7:24 ISO 50

Spindle face to table surface distance mm 0-400

Center to bed vertical guide rail distance: mm 175

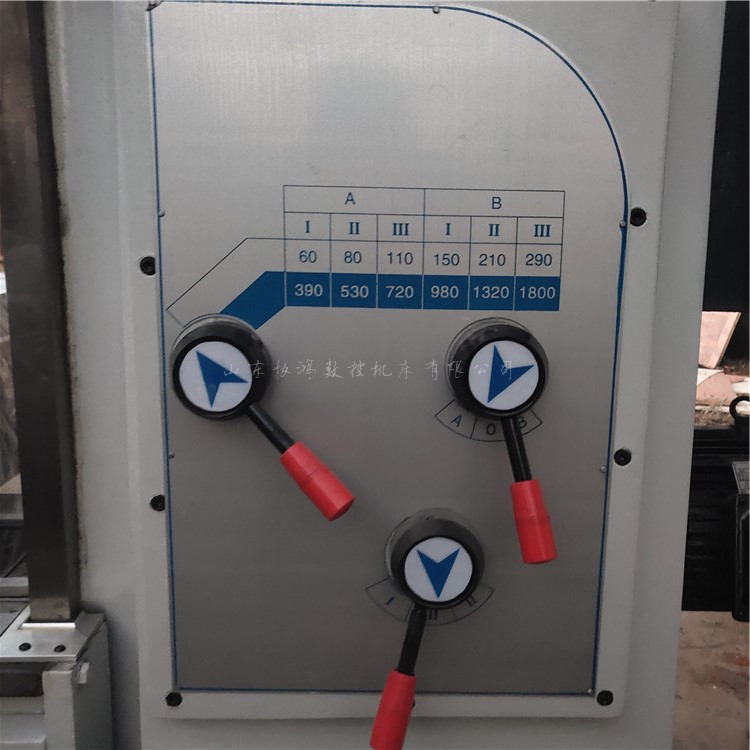

Spindle Speed Range: 60-1800 rpm (12 steps)

Workbench Size: 1500×360 mm

Workbench Travel (Vertical/Horizontal/Axial) mm 1000/360/430

Worktable longitudinal/lateral feed speed: 15-370 mm/min (8 stages) (quick feed: 540)

Workbench Vertical Mobility Lifting Speed: 590 mm/min

Workbench T-slot Quantity/Width/Spacing mm 3/18/80

Suspension Stroke mm500

Main Drive Motor Power: kW 4

Workbench Feed Motor Power: 750 W

Hoist Platform Elevating Feed Motor Power: 750W

Cooling Pump Motor Power: W90

Cooling Pump Flow: 25 L/min

Machine Tool Net Weight/Gross Weight kg 2400

Dimensions: 1880mmx1700x1700
