Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 65000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 777 Tai

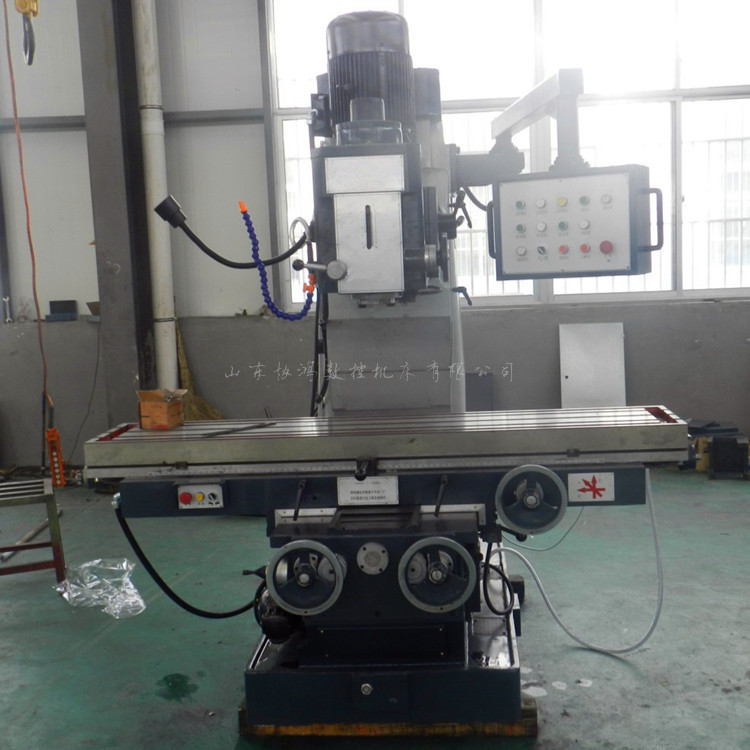

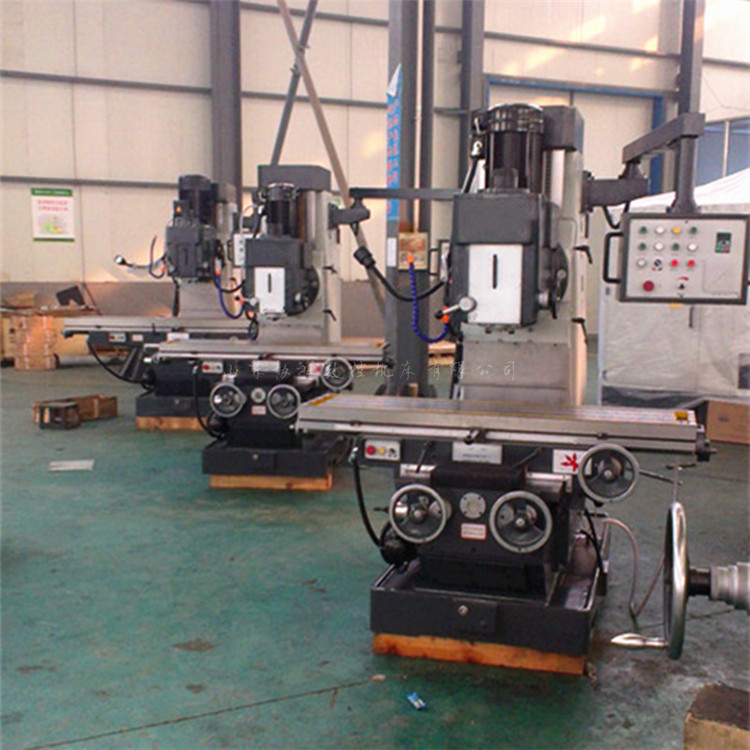

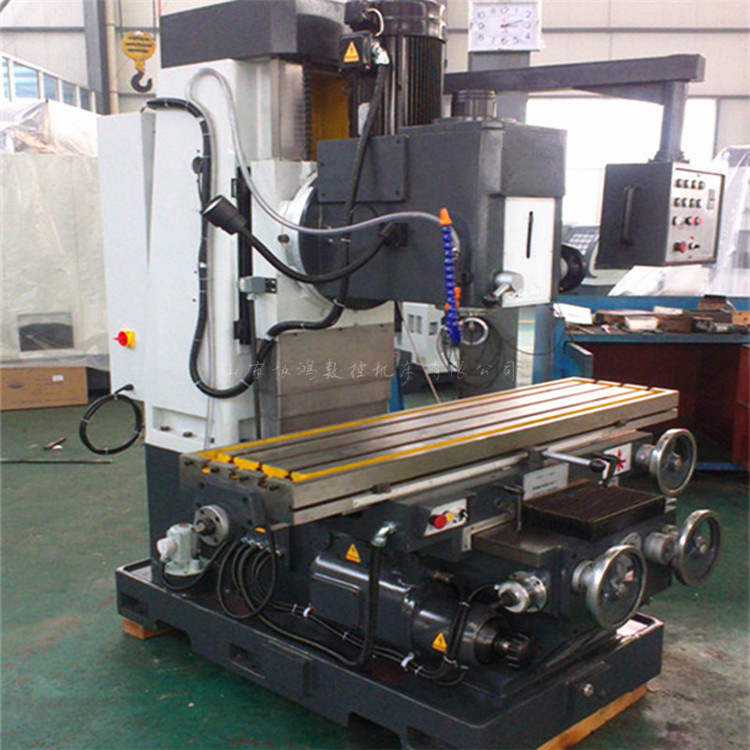

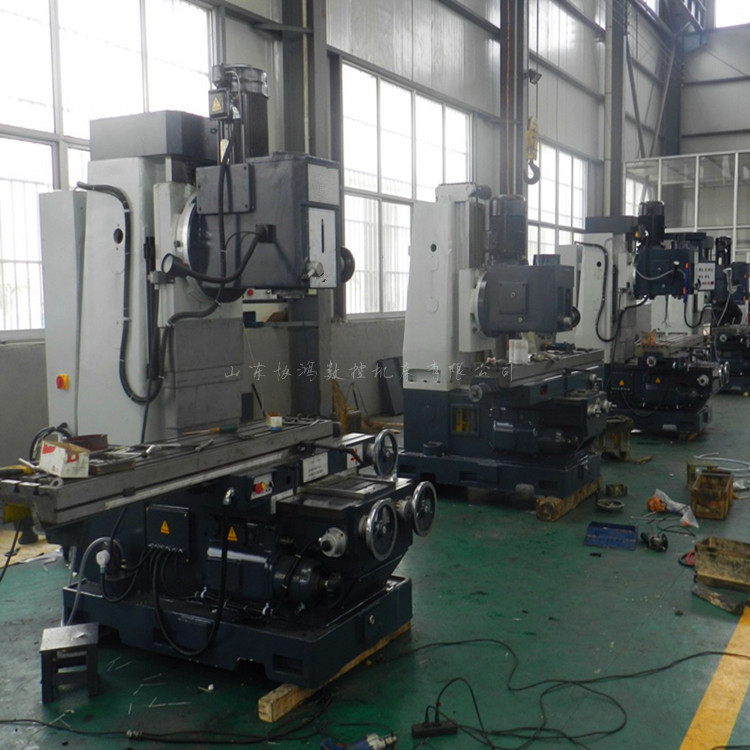

◆Rectangular guide rail used The work surface and guide rails are heat treated with audio spark quenching. The milling head can rotate ±30°. Gear-driven front end, 12-speed gearshift Key Technical Parameters: Units X7150 Workbench Size: 2000mmx400 Workbench Travel XY mm 1500x550 Z-axis (up and down from the machine head) 100-650 mm Workbench T-slot Quantity/Width/Spacing mm 3-18-100 Workbench Load Capacity: 2,000 kg XY Feeding Speed mm/min 20-2000 XY Rapid Travel Speed mm/min 3100 Main shaft speed range: 66-1440 rpm Spindle Speed Grades 12 Main shaft taper ISO50 Milling Head Rotation ±30° Bushing stroke mm 105 Center Distance from Spindle Center to Column Guideway Surface: mm 600 Main shaft motor power KW 6.5 Dimensions: 3000mmx2285x2340 Machine Tool Weight: 4,500 kg
.jpg)
