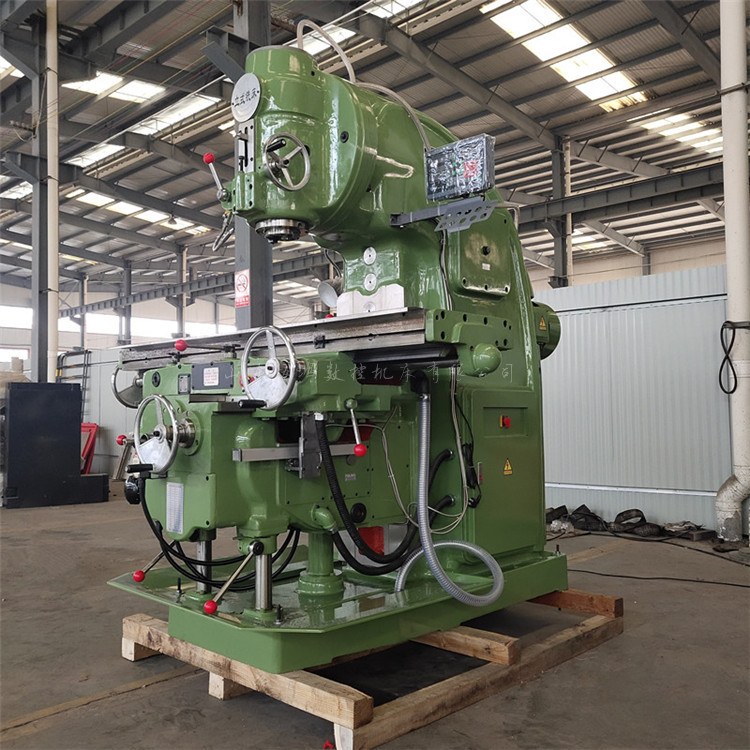

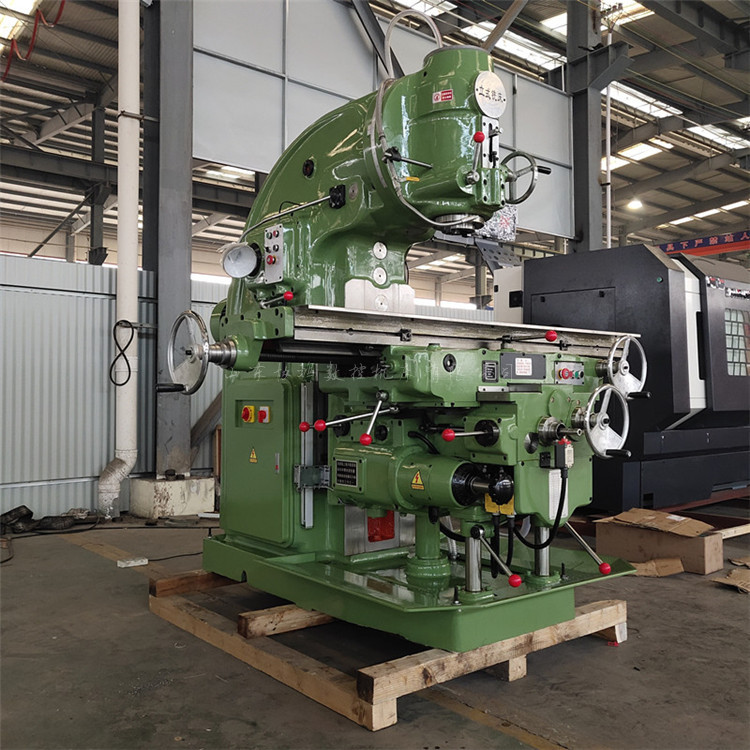

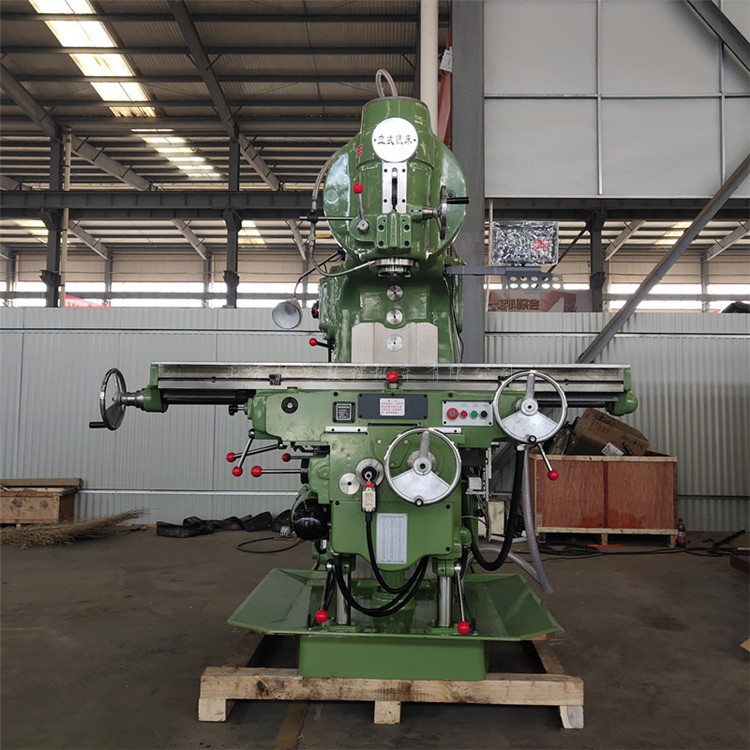

X5040 CNC Vertical Milling and Rising Table Milling Machine for Sale

1. The main components such as the base, body, worktable, middle sliding seat, lifting sliding seat, and spindle box are all cast from high-strength materials and undergo artificial aging treatment, ensuring the stability of the machine tool for long-term use.

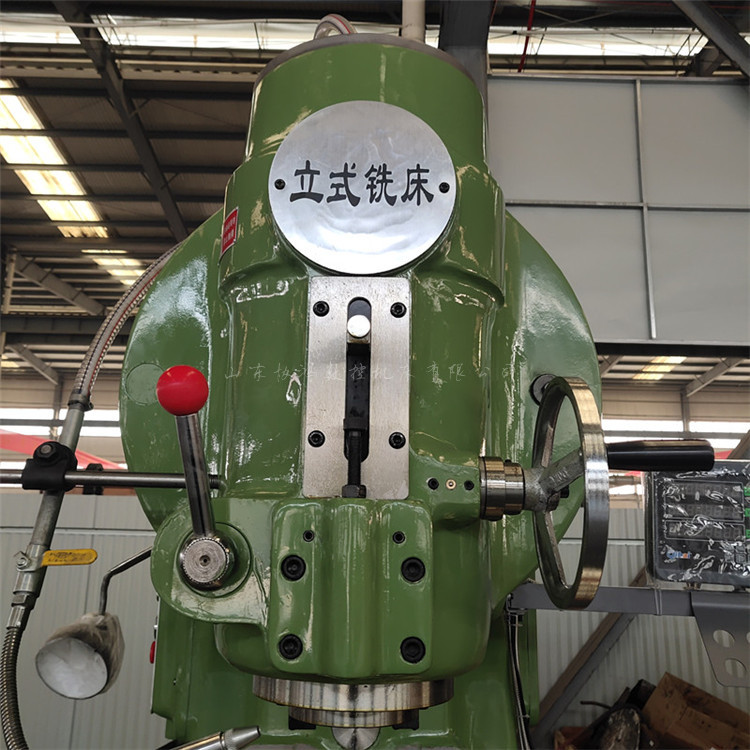

2. The milling head can be adjusted ±45° in both clockwise and counterclockwise directions within the vertical plane, expanding the machining range of the machine tool; the spindle bearing is a cone roller bearing, offering strong load-bearing capacity, and the spindle uses energy-saving braking, providing a large braking torque for quick and reliable stopping.

3. The worktable features manual, semi-automatic, and rapid feed options in the X/Y/Z directions, catering to various processing requirements with different feed speeds; rapid feed allows the workpiece to quickly reach the processing position, facilitating convenient and quick processing, thereby reducing non-processing time.

4. The guide rail pairs in the X, Y, and Z directions undergo ultra-audio quenching, precision grinding, and scraping treatment, complemented by forced lubrication to enhance precision and extend the service life of the machine tool.

5. The lubrication system can provide forced lubrication to the screws and guides in longitudinal, transverse, and vertical directions, reducing machine tool wear and ensuring smooth operation. Additionally, the cooling system adjusts the nozzle to change the flow rate of the coolant, catering to different machining requirements.

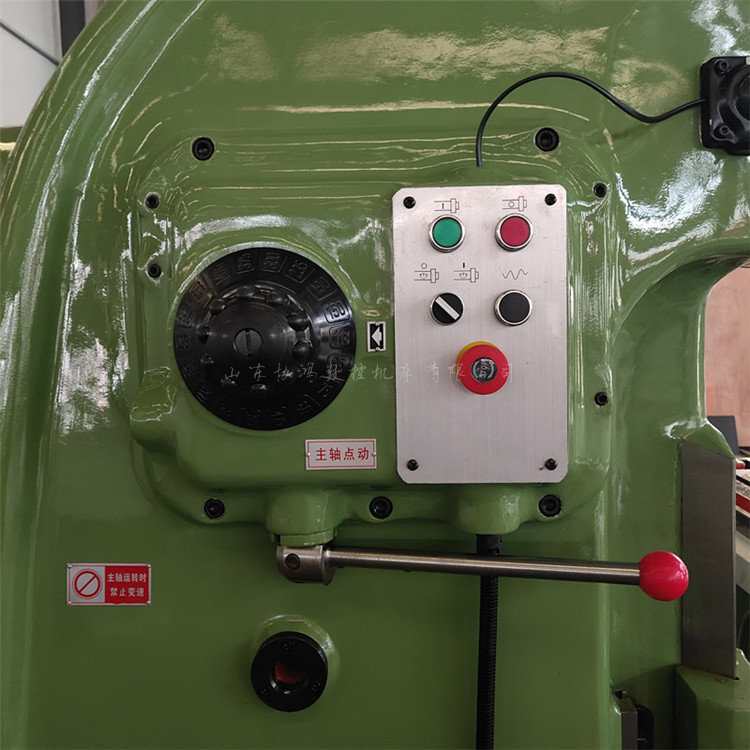

6. Machine tool design conforms to ergonomic principles, offering ease of operation; the control panels are equipped with iconic symbols for simple and intuitive operation.

Key Technical Parameters  Units X5040/X53K

Workbench Dimensions: 1700×400 mm

Workbench T-slot Quantity/Width/Spacing  mm 3-18-90

Workbench Load Capacity: 800 kg

X-axis (lengthwise of the workbench) manual/motorized 900/880 mm

Y-axis (slider lateral) manual/motorized   mm 315/300

Vertical (hoist) manual/motorized 385/365 mm

Cutting Feed Rate mm/min X,Y: 23.5-1180, Z: 8-394

Fast travel speed: X: 2300, Y: 2300, Z: 770

Spindle Speed Range: 30-1500 rpm

Main shaft speed steps: 18

Spindle Axial Travel Distance  mm 85

Spindle Rotation Angle ±45°

Spindle face to worktable distance: 130-515 mm

Main shaft motor power  11 kW

Dimensions: 2556×2159×2328 mm

Overall Weight: 4,250 kg
