Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 8000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

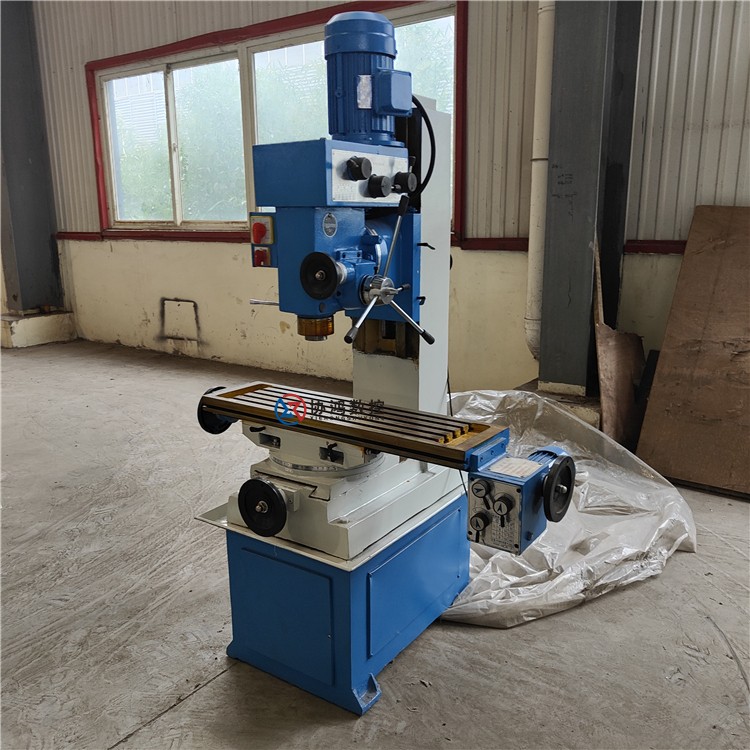

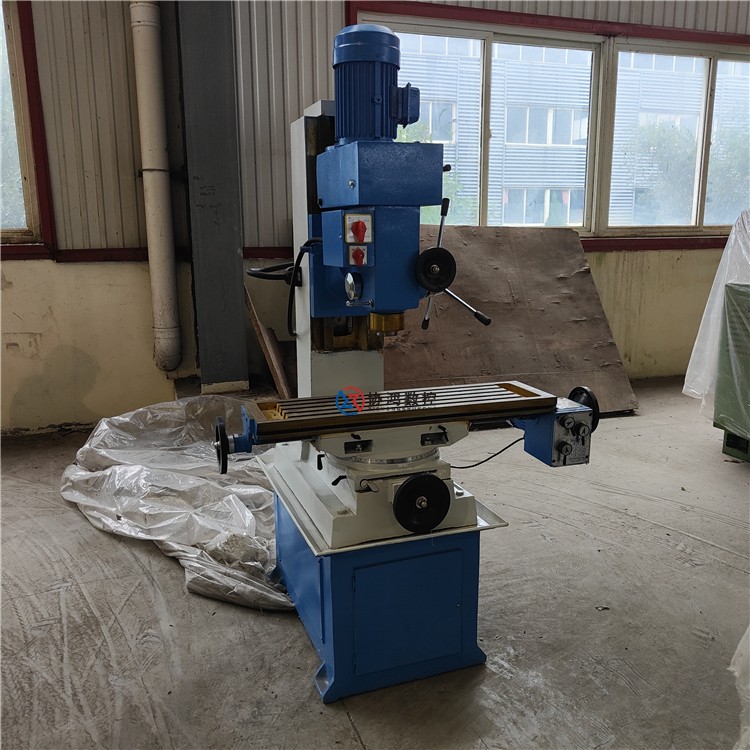

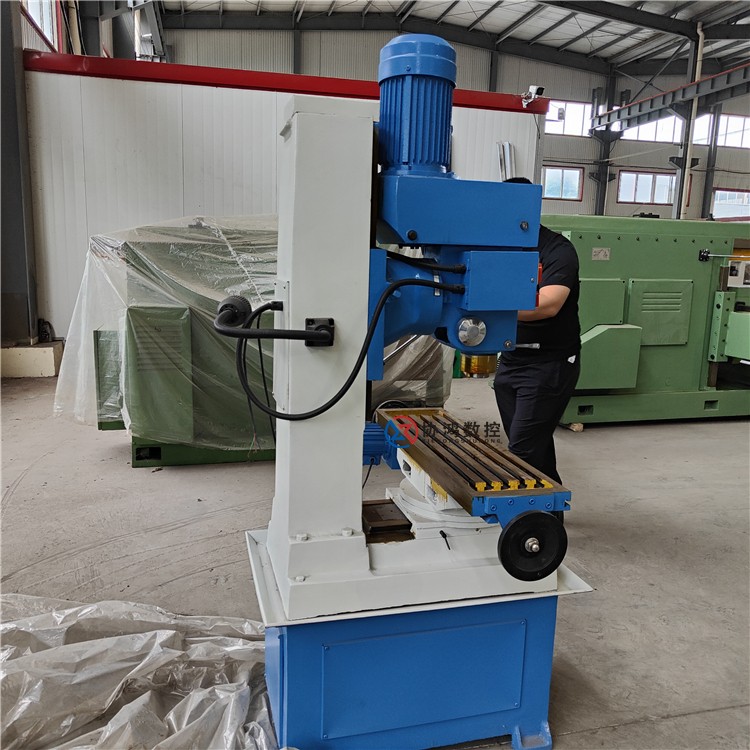

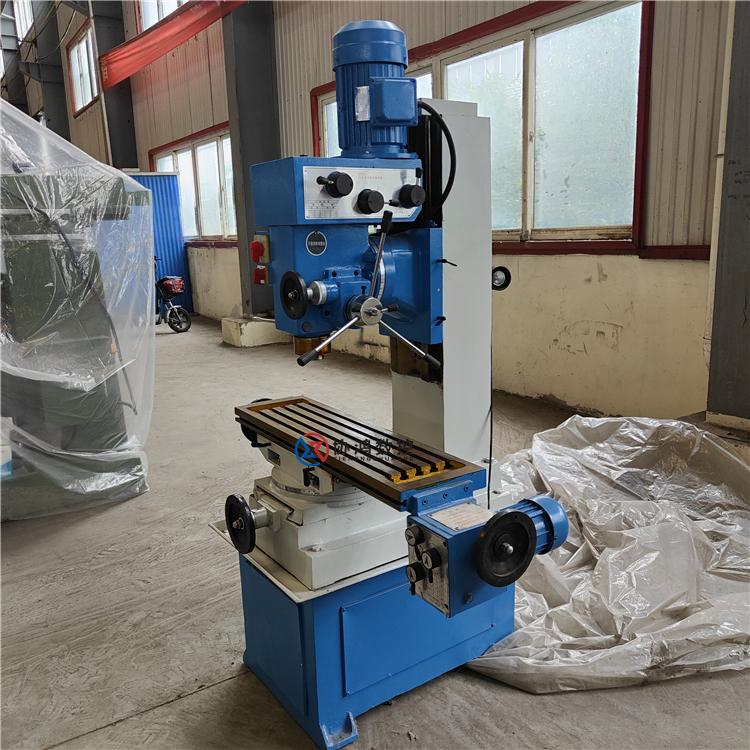

ZX50C Drilling and Milling Machine Features: 1. The main shaft box and worktable are both adjustable for height and can rotate around the column, expanding the machining range. The machine body is stable and robust. 2. The workbench is adjustable for both vertical and horizontal movement. 3. The base is a cast unit, offering greater stability and precision in machining workpieces. 4. Installation of corresponding accessories enables a variety of cutting functions, including drilling, milling, boring, grinding, and tapping. 5. The main shaft box can rotate 90° left and right within the vertical plane. 6. The workbench can rotate left and right by 45° within the horizontal plane. 7. The workbench features automatic vertical cutting, ensuring high processing efficiency. Key Technical Parameters: ZX50C (Standard Configuration) Drilling Diameter (mm): 50 End Mill Width (mm): 100 Milling Diameter (mm): 25 Boring Diameter (mm) 120 Tapping Diameter (mm) M16 Bearing face to worktable distance (mm): 50-520 Spindle Speed Range (r.p.m.) 115-1760 Bore Travel (mm) 120 Workbench Size (mm): 900x240 Workbench Stroke (mm): 550x250 Dimensions (mm): 1270×950×1800 Motor Power (kw): 2.2 Machine Tool Weight (kg) 700
