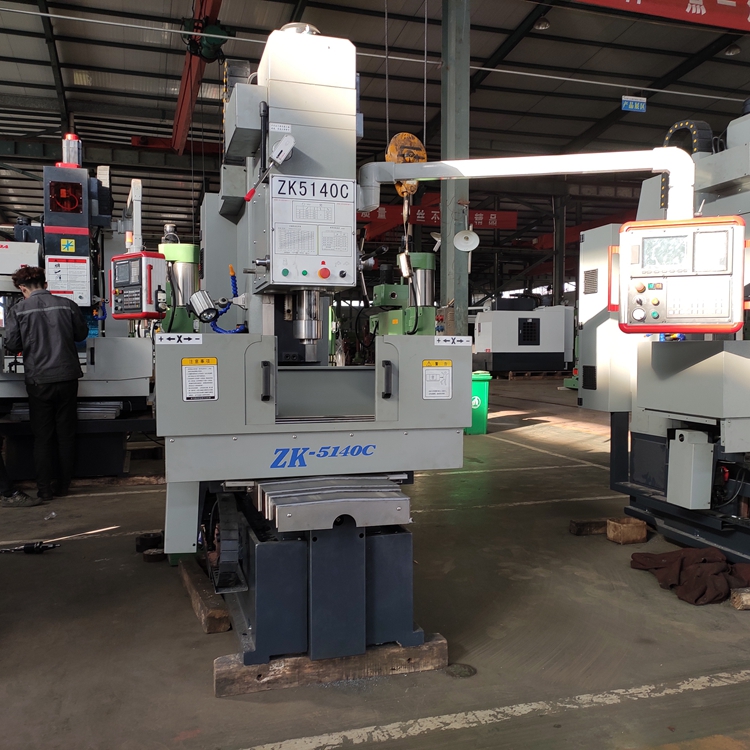

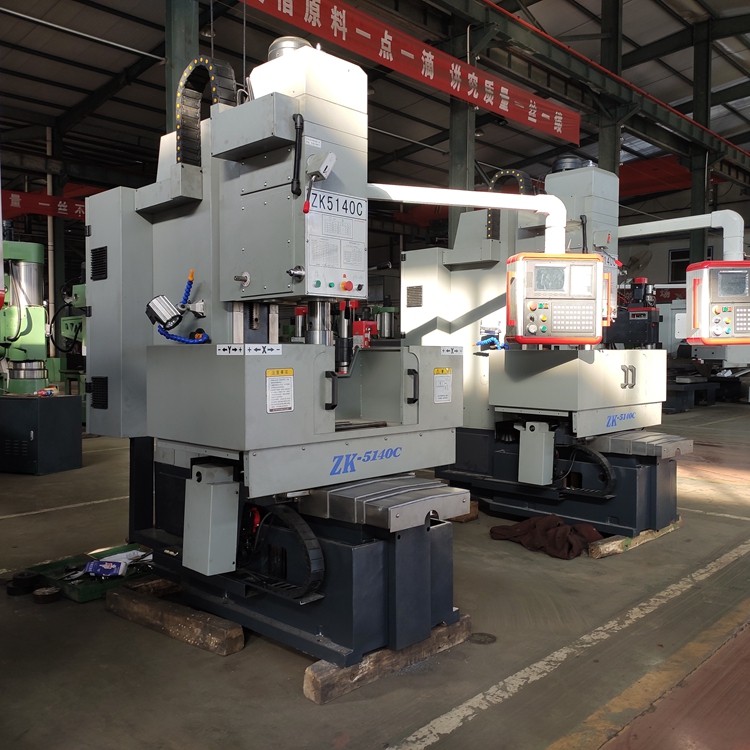

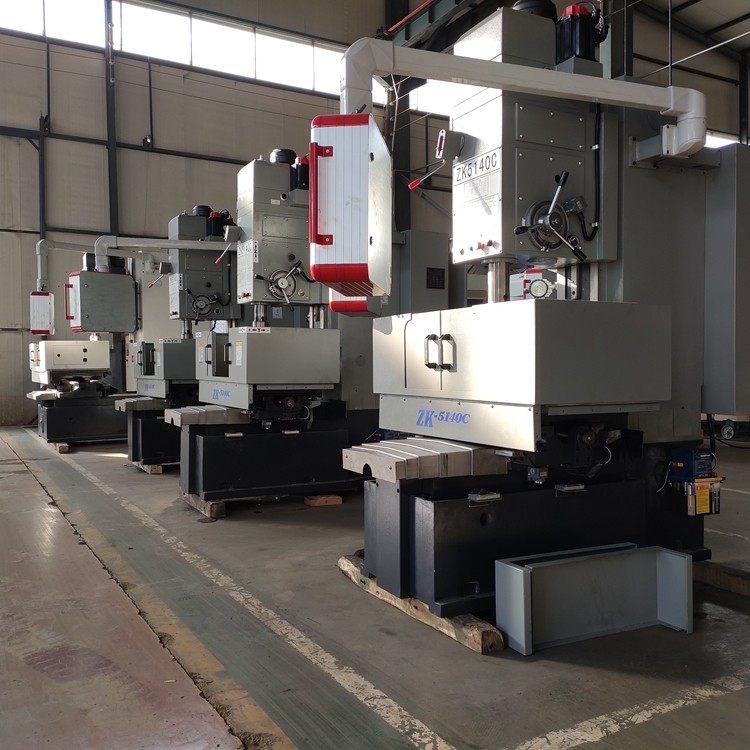

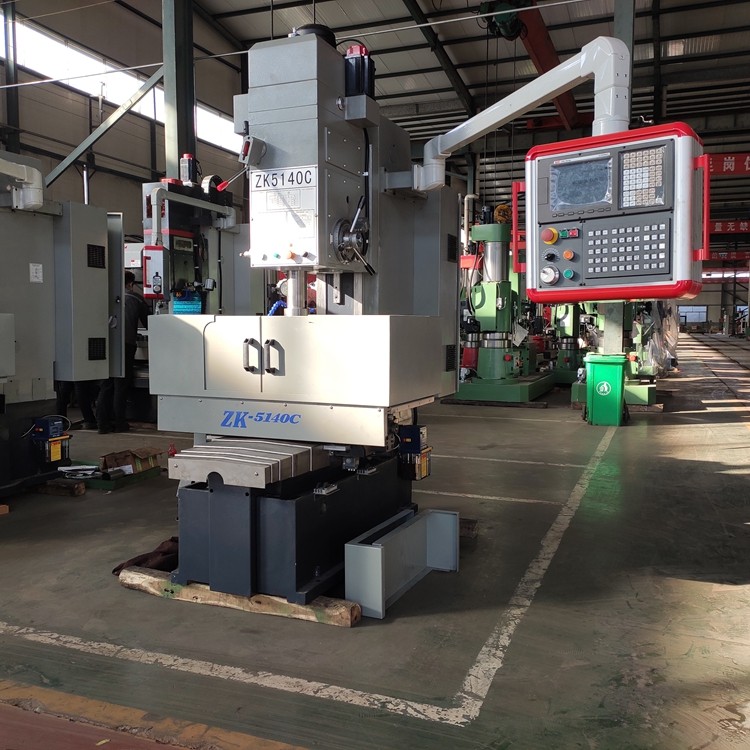

Vertical Drilling Machine, ZK5140C CNC Vertical Drilling Machine, Drilling and Milling Holes

This series of CNC vertical drilling machines can perform drilling, reaming, tapping, countersinking, and threading operations, suitable for mass production of small and medium-sized shafts, discs, and other components. The machine base components are made of resin sand cast iron and have been processed through multiple stabilization treatments. Both the machine guide surfaces and the worktable surfaces are ground by CNC grinding machines.

The Z-axis is controlled by a CNC system, allowing for rapid traverse, normal feed, rapid retract, and delay programs. The Z-axis is driven by a stepper motor (or AC servo motor).

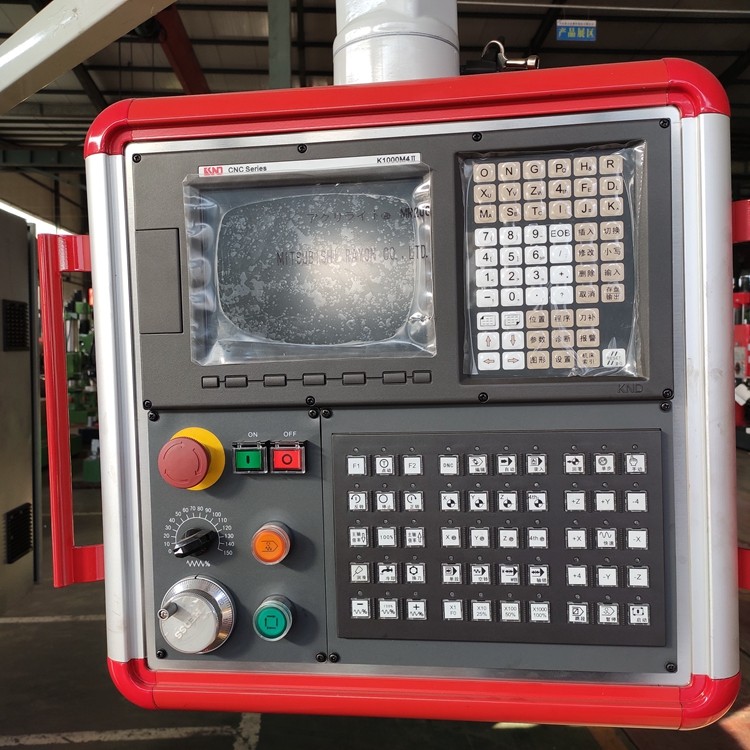

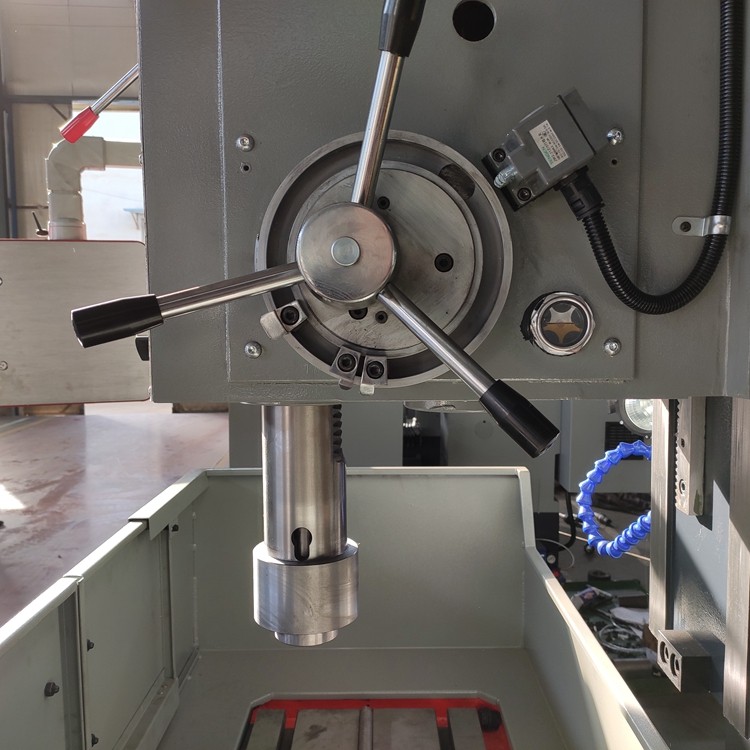

Stepper motor (or AC servo motor) for the Z-axis, KND-1000M CNC system.

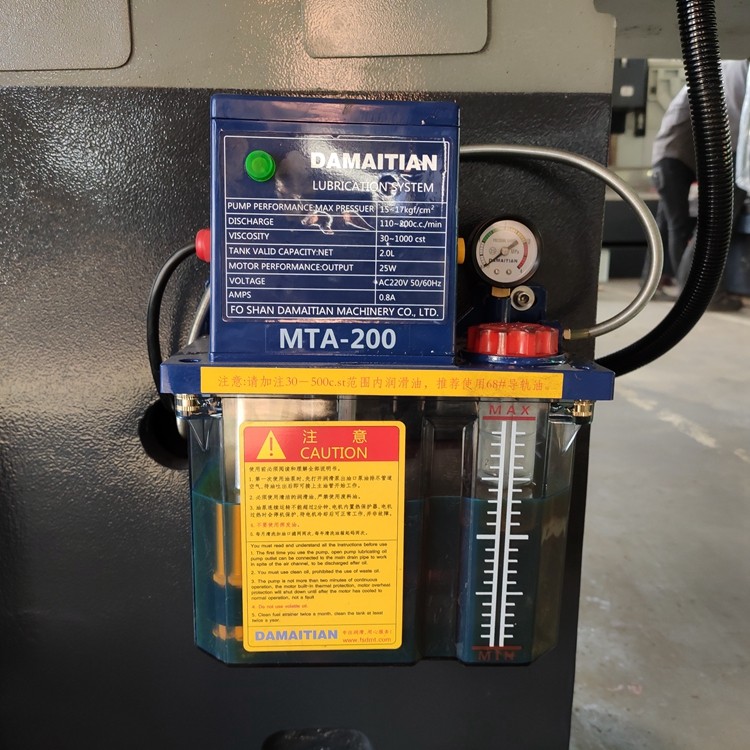

Automatic Z-axis home function, spindle overload protection, centralized lubrication, and coolant circulation cooling system.

Numerical control system programming is simple and easy to operate.

Available for customization according to customer requirements, pneumatic or hydraulic clamping fixtures.

Key Technical Parameters: ZK5140C

Boring Diameter mm 40

Spindle feed resistance: N 16,000

Main shaft torque: 350 N.m

Main cone bore taper Mwse 4

Main Motor Power: 3 kW

Spindle speed range: 31.5-1400 r/min (12 steps)

Machine Tool Weight: 2,700 Kg

X/Y/Z rapid traverse speed mm/min 8000/8000/7000

Main shaft box stroke mm 470

Workbench X-axis Travel: 800mm

Workbench Y-axis stroke: 400mm

Spindle Z-axis travel mm 250 (auto 240)

Spindle face to table distance mm 0-800

Control Method: 3-axis CNC, X and Y axis interlock

Workbench Size: 850mmx400

Positioning Accuracy (X, Y) mm ±0.025 (±0.02)

Repeatability accuracy (X, Y) mm ±0.01 (±0.008)

Dimensions: 2060 x 2160 x 2550 mm
