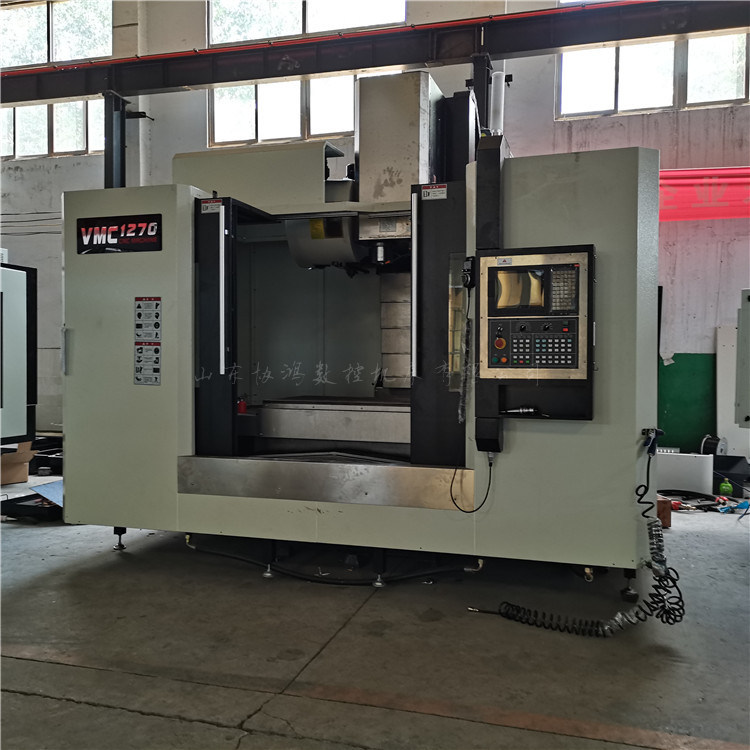

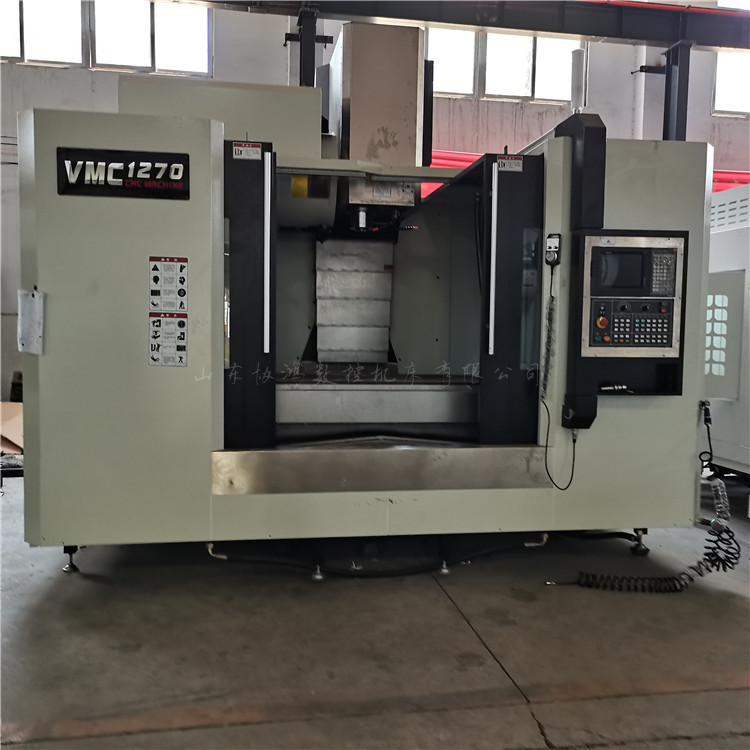

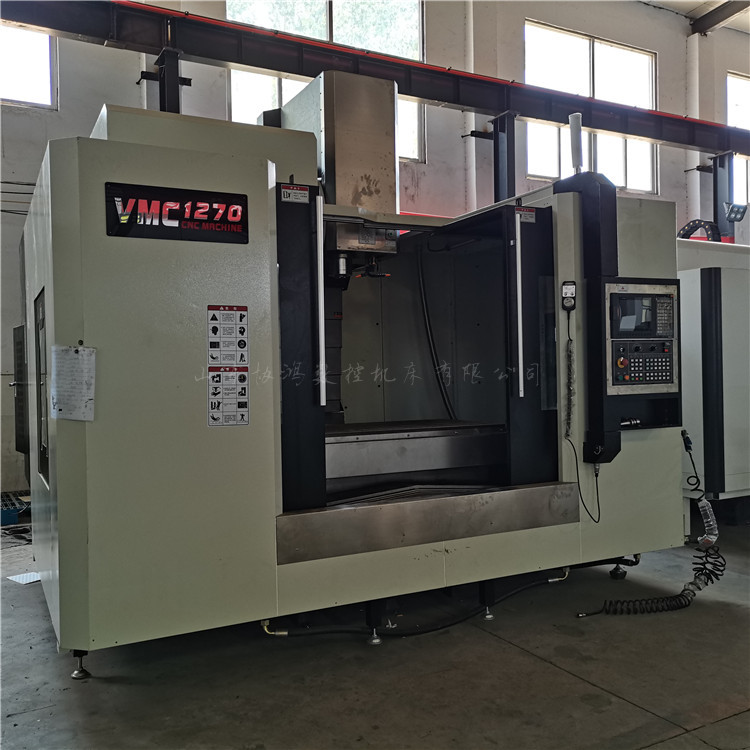

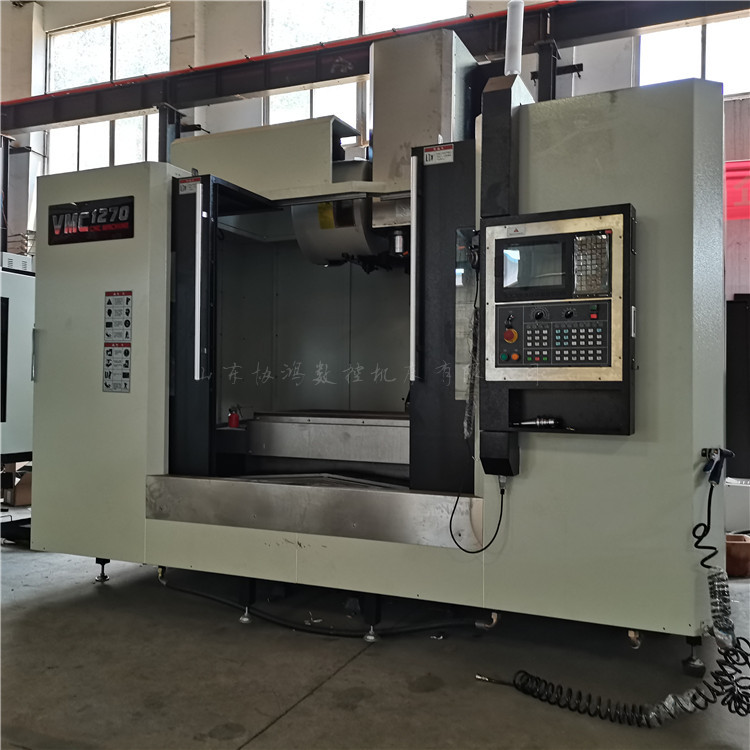

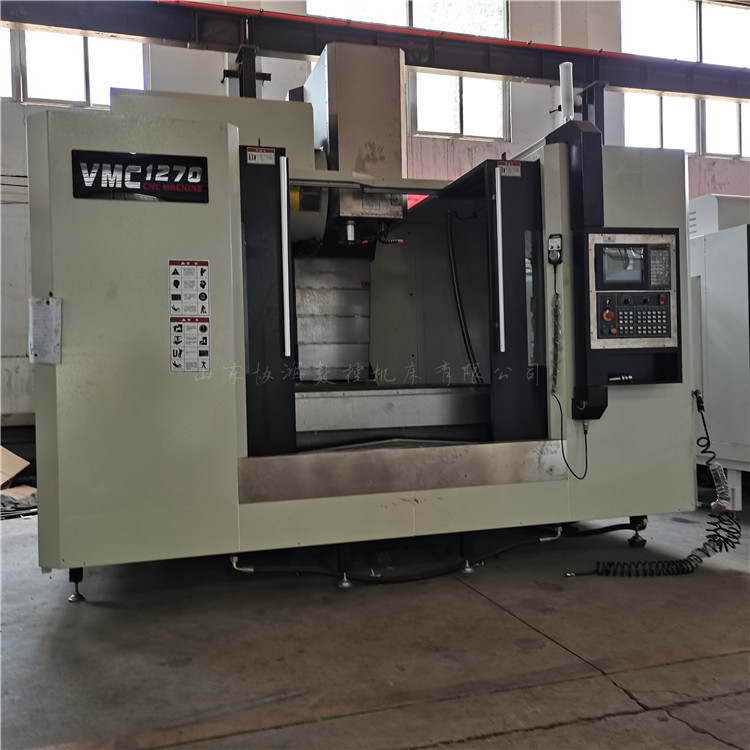

Vertical Machining Center VMC1270 Taiwan Machine Optical System Optional

Product Description and Uses

The VMC1270 machining center utilizes a full-tracked three-axis system, achieving high-speed displacement for enhanced production efficiency and profitability, making it a preferred model for communication, automotive parts, and hardware industries. It also excels in high precision and speed, showcasing its performance in the breadth and depth of processed items, making it an ideal choice for 3C components and hardware products.

Machine Tool Structural Features:

(1) The base and column feature a unique large-span A-frame structure, capable of withstanding the inertia caused by high G forces. The machine's chip discharge is rear-mounted, with adjustable chip angle and an ultra-high flow chip removal system.

(2). Three-axis rapid displacement of 24 meters significantly reduces processing time. Large pitch screw shafts and high-speed linear guides, with minimal linear guide wear, offer a very long service life. Suitable for high-speed operation, they greatly reduce the required driving horsepower for the machine. Features include high rigidity, low noise, low friction, and high sensitivity, which can enhance processing speed and accuracy.

(3) Elevated column design, with space reserved for the addition of the 4th and 5th axes. The Z-axis features a non-counterweight design, paired with a braking servo motor, enhancing the driving performance of the Z-axis for high speed and smooth surface finish.

(4) Design of sealed protective cover, ensuring smooth high-speed movement and low noise, effectively blocking chips and chip fluids, thereby enhancing the protection and lifespan of the linear rail and screw shaft.

Technical Specifications Units VMC1270

Workbench size: 1300mmx700

X-axis Travel mm 1200

Travel along the Y-axis: mm 700

Z-axis Travel mm 600

Workbench High Load Capacity: 1200 kg

T-slot (quantity-width-gap) 5-18x125

Spindle Speed: 8,000 rpm

Spindle Taper mm BT40

Main Motor Power: 15 kW

X/Y/Z axis rapid traverse speed m/min 24/24/18

Cutting Feed Rate mm/min 1-6000

Track Type Track Rails

Center distance from spindle to pillar surface: mm 780

Center shaft end to table surface distance: mm 140-700

Positioning Accuracy mm ±0.0075

Repeatability positioning accuracy: mm ±0.005

Tool magazine 24盘

Large diameter of knife: Φ112 mm

Cutting Tool, Large, Weight: 18 kg

Machine Tool Weight: 9,500 kg

Dimensions: 3400 mmx2480x2960
