Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 250000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 777 Tai

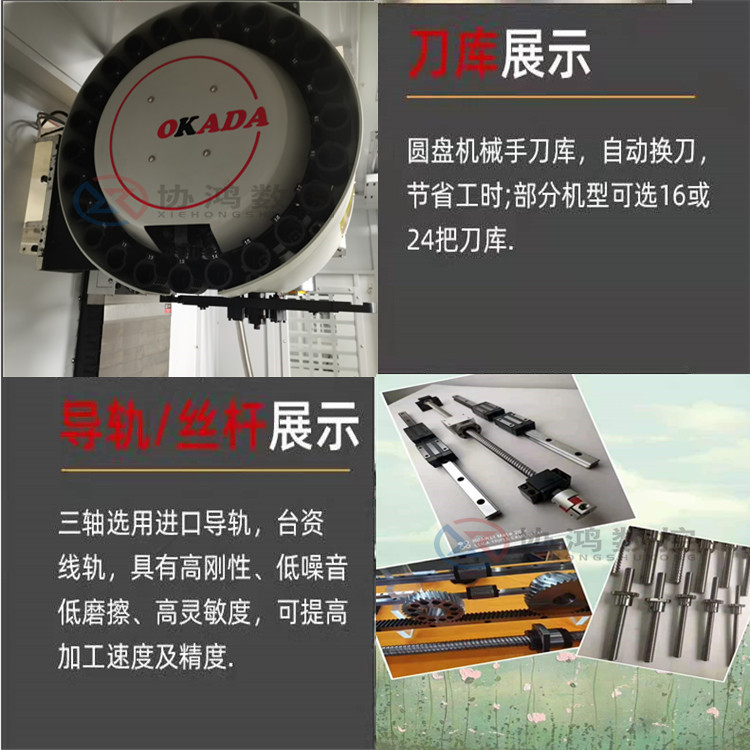

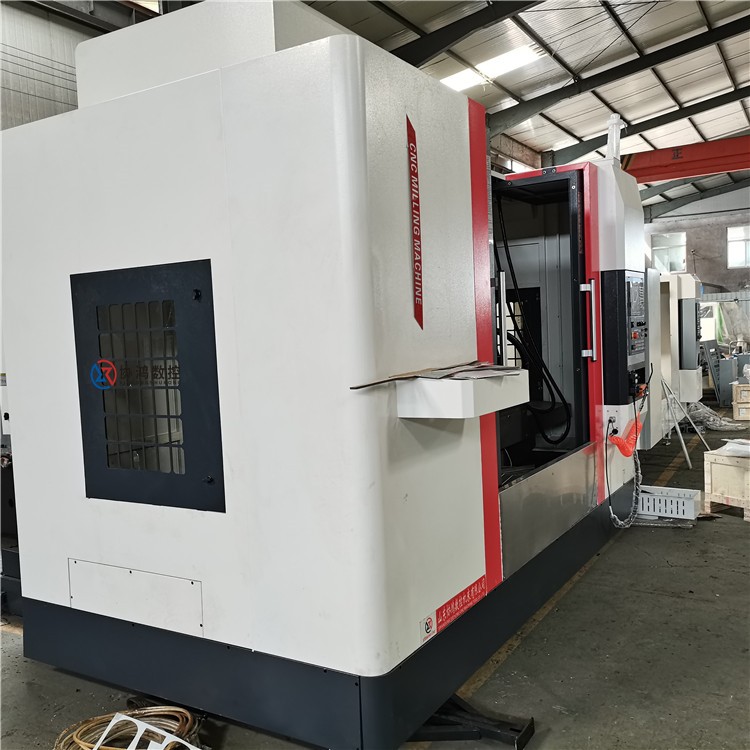

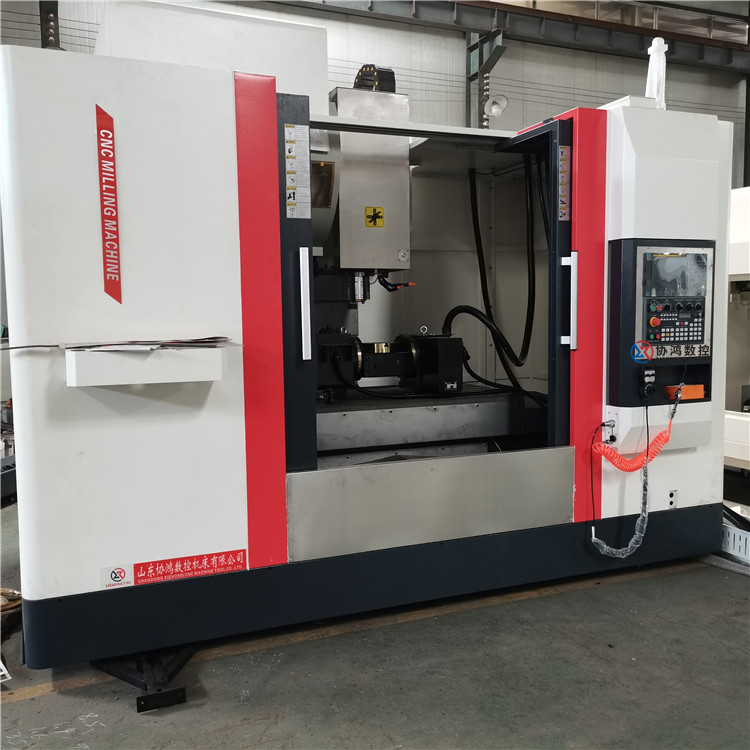

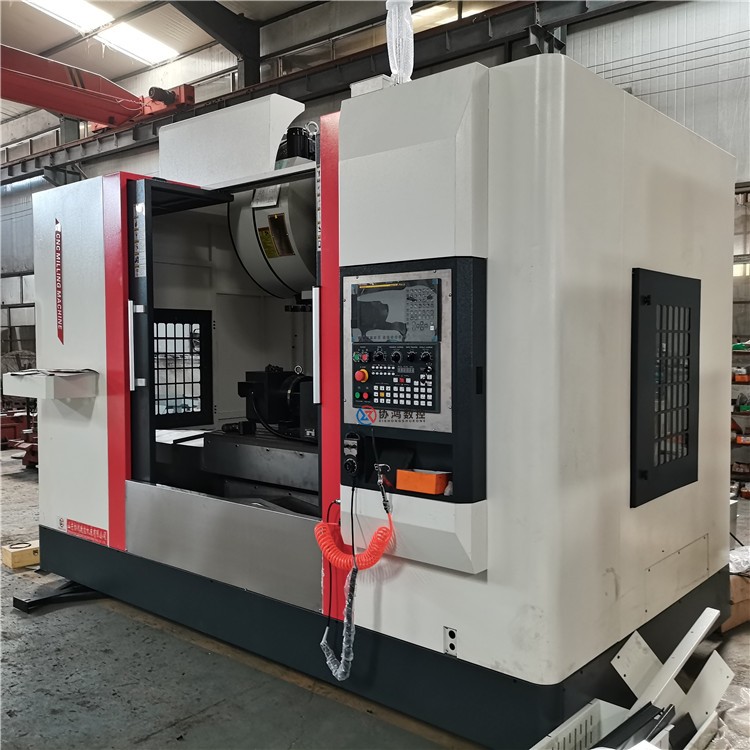

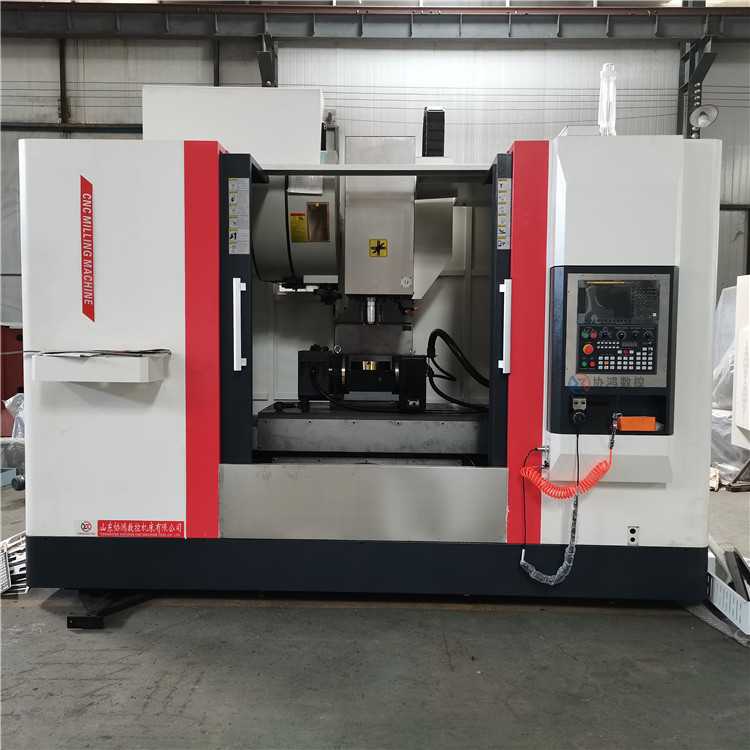

Model VMC1370 Workbench size: 1400 mmx700 X-axis Travel mm 1300 Y-axis stroke mm 700 Z-axis Travel mm 700 Workbench Load Capacity: 1400 kg T-slot (quantity-width-gap) 5-22x140 Spindle Speed: 8000 rpm (Optional: 10,000 rpm) Main shaft taper mm: BT50/BT40 Main Motor Power: 15/18.5 kW X/Y/Z axis rapid traverse speed m/min 24/24/18 Cutting Feed Rate mm/min 1-6000 Linear Rail Bearing center to column face distance: mm 780 Bearing end to workbench surface distance: 160-860 mm Positioning Accuracy mm ±0.0075 Repeatability positioning accuracy mm ±0.005 Tool Magazine Arm 24 Cutting Tool Diameter mm φ112 (Adjacent) / φ200 (Apart) Knife weight: 18 kg Machine Tool Weight: 10,000 kg Dimensions: 3870mmx3165x2920 1. FANUC system 11,800 rpm spindle 2 24 Disc Blade Magazines
12 Centralized Automatic Feeding Lubrication System 3 Three-axis Lubricant Independent Collection Device 13 Full Protection (without the top) 4 Machine Tool Lighting Work Lights 14 Tri-color Warning Lights 5 Clean Air for Spindle Taper Hole 15 Detachable Handwheel 6 Clean Gas Q 16 RS232 Interface 7 Chip Coolant System 17 Chip Tray 8 8.4" Display 18 Spindle Taper: BT40 7/24 9 Servo Transformer 19 Electric Cabinet Heat and Cold Exchanger 10 Foundation Washers and Adjustment Bolts 20 Random Technical Documents
