Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 169000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 9999 Tai

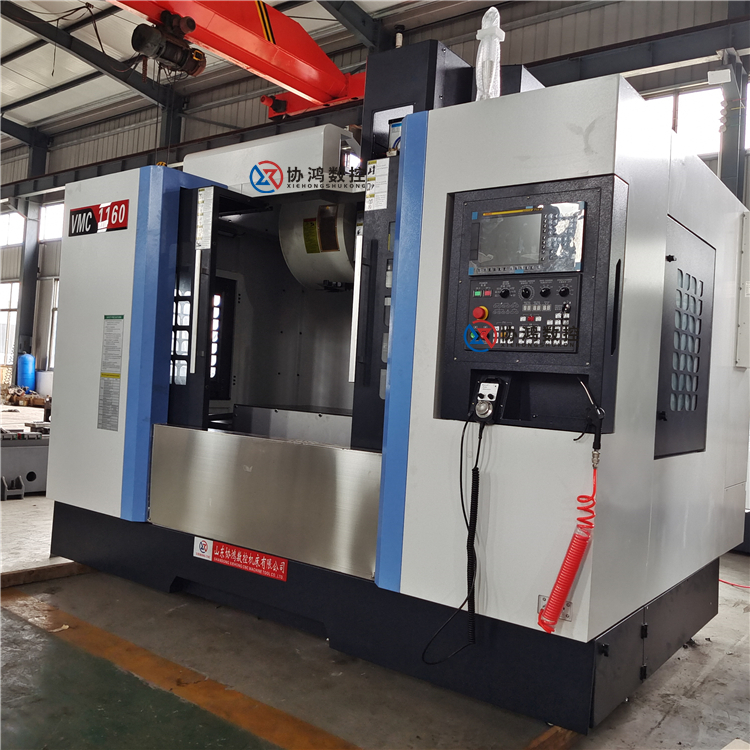

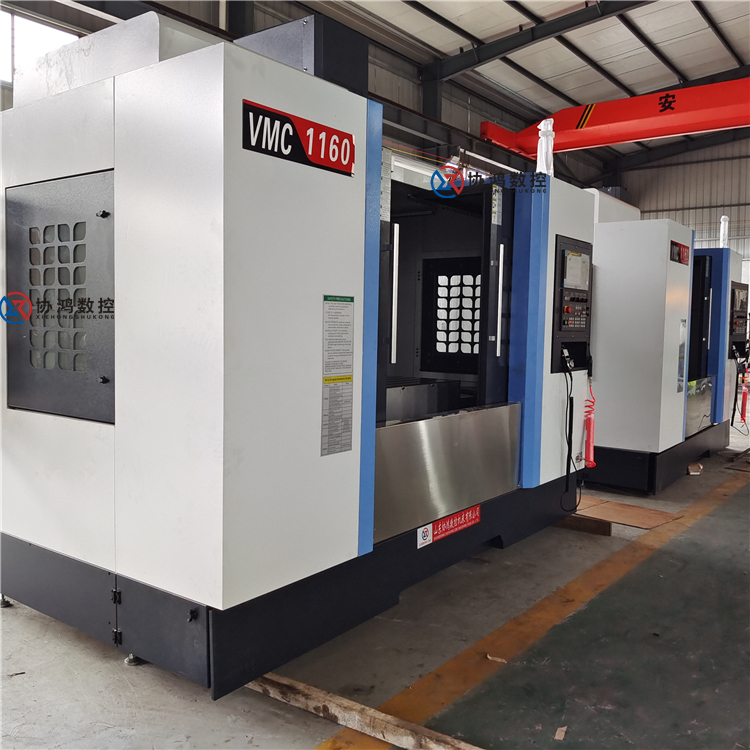

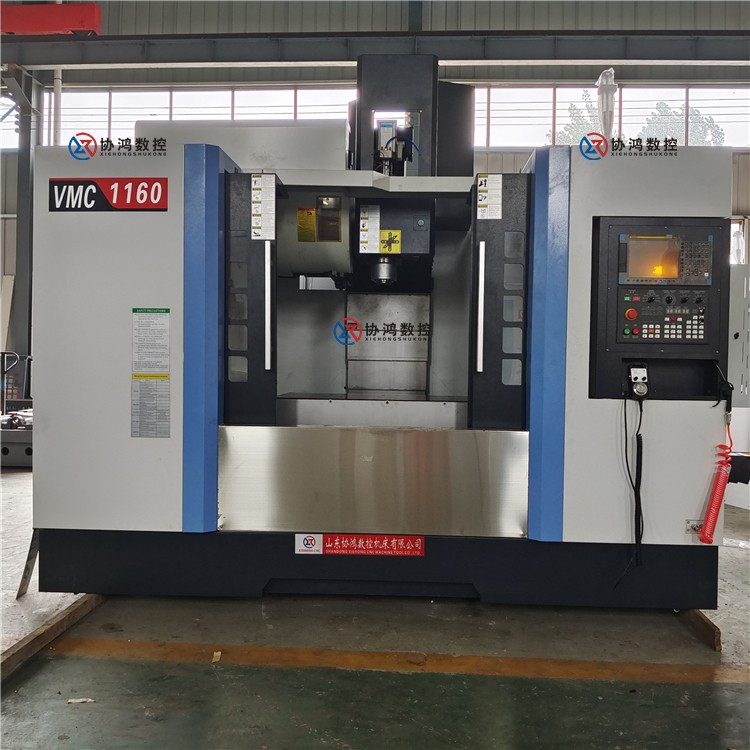

Product Introduction Product Model: VMC1160 Product Name: Vertical Machining Center Standard System: Guangshu (Other systems available for selection) Product Description: 1. Travel of X, Y, Z axes: 1100x600x600mm 2. The main shaft is driven by a belt, with a speed of 8000 RPM. 3. The standard configuration of the tool magazine is a round disk with 24 tools, meeting the customer's requirements. 4. The header section features a heavy-duty box-like structure, internally reinforced with ribs for high rigidity. 5. The spindle cutting method utilizes a hydraulic mechanism, ensuring even force distribution during cutting to extend bearing lifespan. 6. The electrical box features an internal isolated design, separating the heat source of the controller. The front employs a heat exchanger for cooling, preventing external dust from entering the box; the back uses a fan to cool the heat sink. 7. The three-axis uses high-precision ball screw, combined with precise screw nut pre-tension and end pre-tensioning device, ensuring that the machine's backlash and thermal deformation remain at a low value for an extended period. 8. The X and Y axes use roller linear guides, offering high rigidity and low noise. They are capable of rapid displacement and achieving cyclic precision. The rapid movement speed is 36/36/24 m/min. All finished products undergo laser positioning correction and circular testing to ensure accuracy and servo characteristics. Furthermore, the machines are subject to strict inspection measures before shipment to ensure long-term stability of all precision aspects. Item Content Unit VMC1160 Workbench Area: 1200×600 mm T-slot mm 5-18-100 Load Capacity: 1500 Kg Travel Range X, Y, Z mm 1100×600×600 Centerline to worktable distance: 120-720 mm Center distance from spindle to column guide face: 650 mm Feed Rate Fast Moving Speed X, Y, Z m/min 36/34/34/min Cutting Feed Rate X, Y, Z: 10~10,000 mm/min Spindle Taper BT50 Main shaft speed: 0-6000 rpm Spindle Power kW AC Servo 11 Tool magazine capacity: 24 Tool Weight: 15 kg Cutting Tool Dimensions: Φ200×350 mm Accuracy Positioning accuracy X/Y/Z mm ±0.008 Repeatability accuracy X/Y/Z mm ±0.0075 Dimensions: Length x Width x Height mm - 3200 x 2500 x 3200 Weight: 7,200 kg
