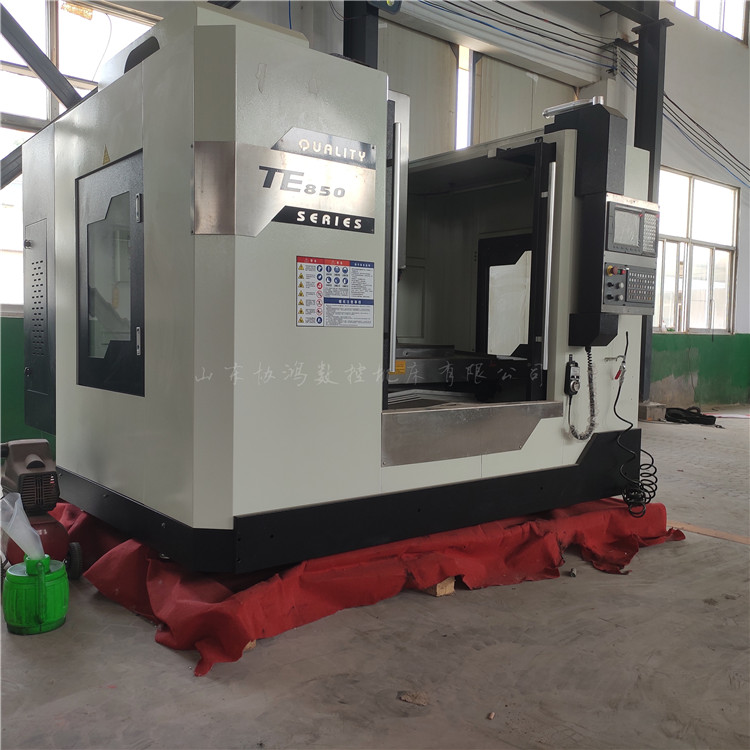

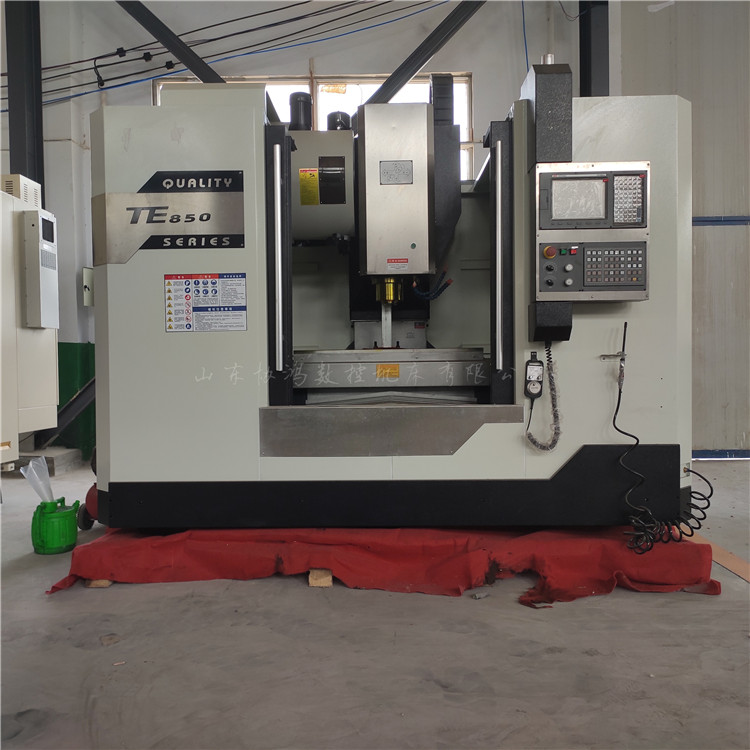

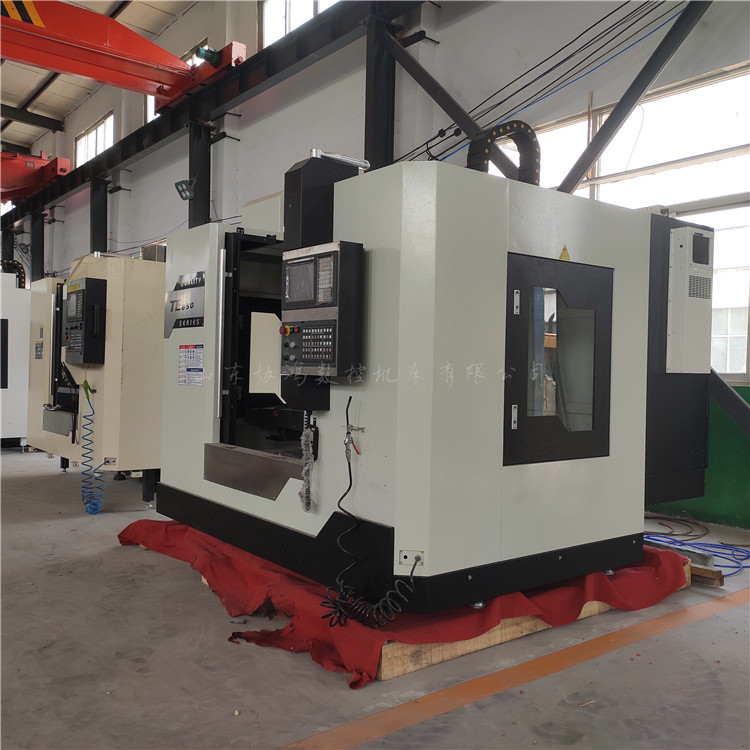

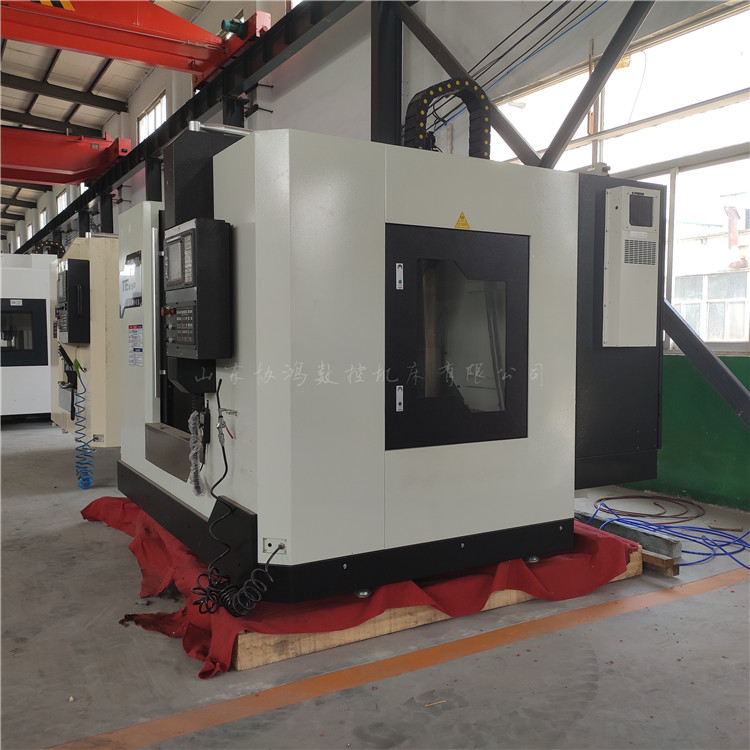

VMC850 3-axis linear guideway machining center with tool magazine, Taiwan vertical machining center

This product is a vertical CNC machining center with semi-closed-loop control for X, Y, and Z axes, featuring high load capacity on rigid guideways, wide span, and high precision. Its structure and dimensions are compact and reasonable. The spindle is driven by a servo motor via a synchronous belt. It can accommodate various complex parts such as disks, plates, housings, cams, molds, etc., in a single setup. It is capable of performing a variety of operations including drilling, milling, boring, reaming, tapping, and rigid tapping. Suitable for the production of multi-type, small and medium-sized batch products, it meets the requirements for processing complex and high-precision parts. It can be equipped with a fourth rotating axis to accommodate special parts.

Technical Specifications VMC850

Workbench Dimensions: mm 1000x500

Workbench Load Capacity: 600 kg

Three-axis travel X/Y/Z mm 800*500*500

Center to pillar guide rail distance: mm 632

Spindle face to table distance: 110-660 mm

Feed rate X/Y/Z: mm/min 10000

XYZ Quick Speed 32 m/min

Spindle Speed: 8000 rpm

Spindle Chuck BT40

Main shaft motor power: 11 kW

XYZ Motor Mounting Type - Direct Mount

XYZ linear guide way

Workbench T-slot 5-18-100

Positioning Accuracy: mm ±0.005 (up to 300mm)

Repeatability Accuracy ±0.003

Tool Magazine Type Arm

Tool Magazine Capacity: Arm 24

Cutting Tool Weight: 8 kg

Blade Length: 250mm

Capacity KVA 11

Machine Tool Dimensions: 2880 mmx2450x2700

Machine Tool Weight: 5,000 kg

Serial Number Product Name Manufacturer Origin

Numerical Control System Controllers - FANUC, Matsuura, Siemens, Kinetec, Mitsubishi - Domestic, Imported

Spindle                          DanQuan                  Taiwan

3 Connector Port Wekomm German

4 Electrical Components          Delixi          Domestic

5 Contactors Schneider France

Automatic Lubrication System  Valley  Japan

7 Simple Protection                  Crownway                  Domestic

8 Tool Magazine Okuma Taiwan

9 Precision Locking Nuts  YX  Taiwan

Bearings                  NSK, FAG          Japan, Germany

11 Tool Magazines 冈田 Taiwan
