Product Details
Manufacturing and Sales: CNC machine tools and machine parts, mechanical equi...
产品Price 114000.00/Tai
最小起订Quantity：1 Tai 供货总Quantity： 57 Tai

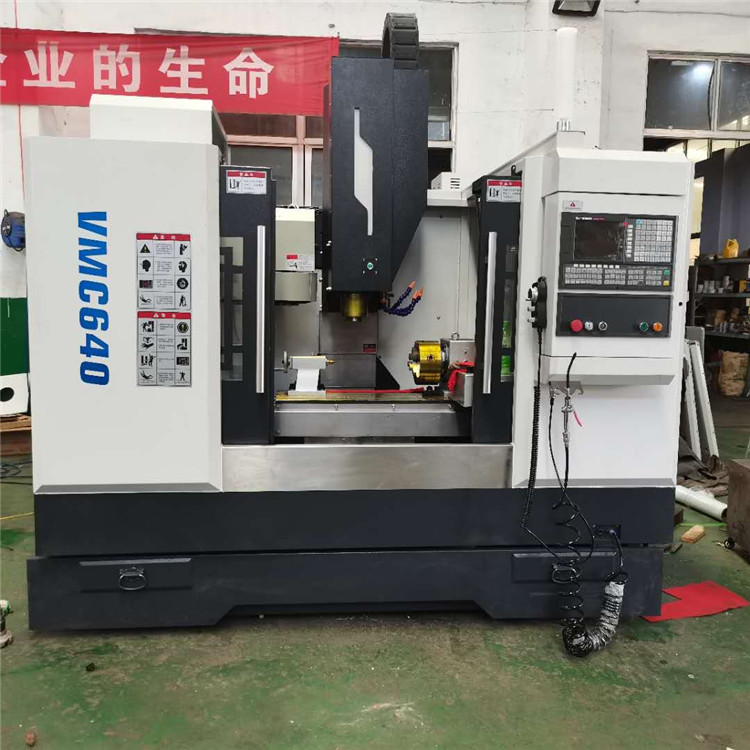

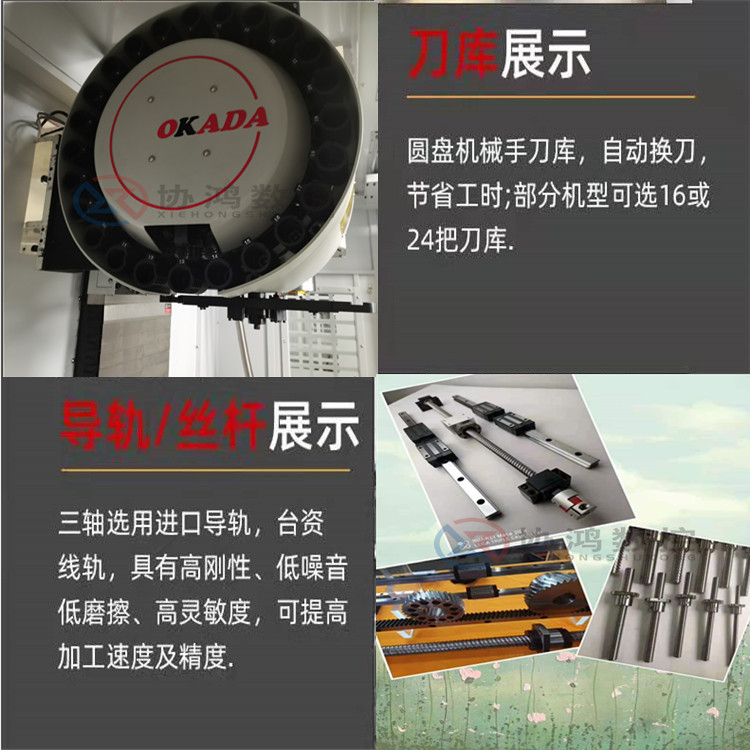

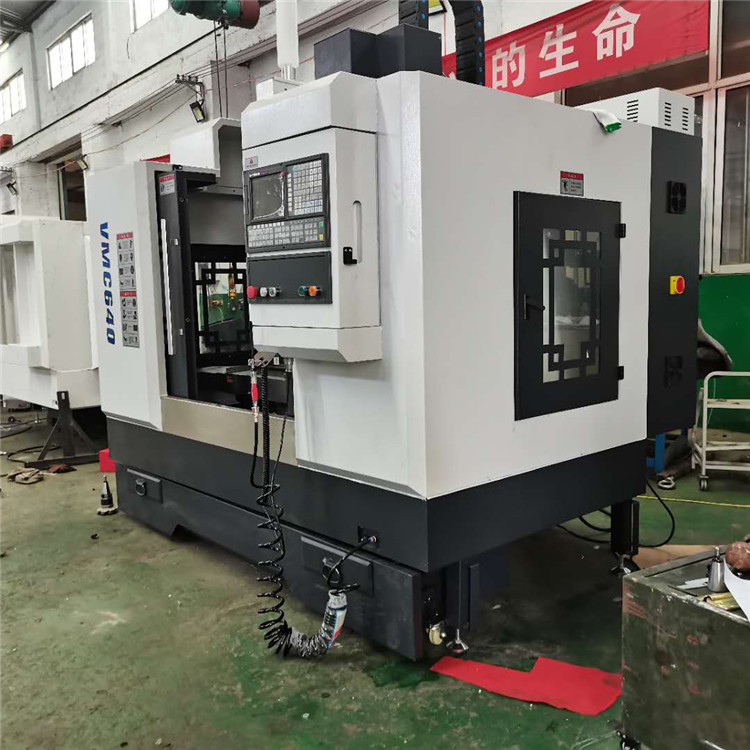

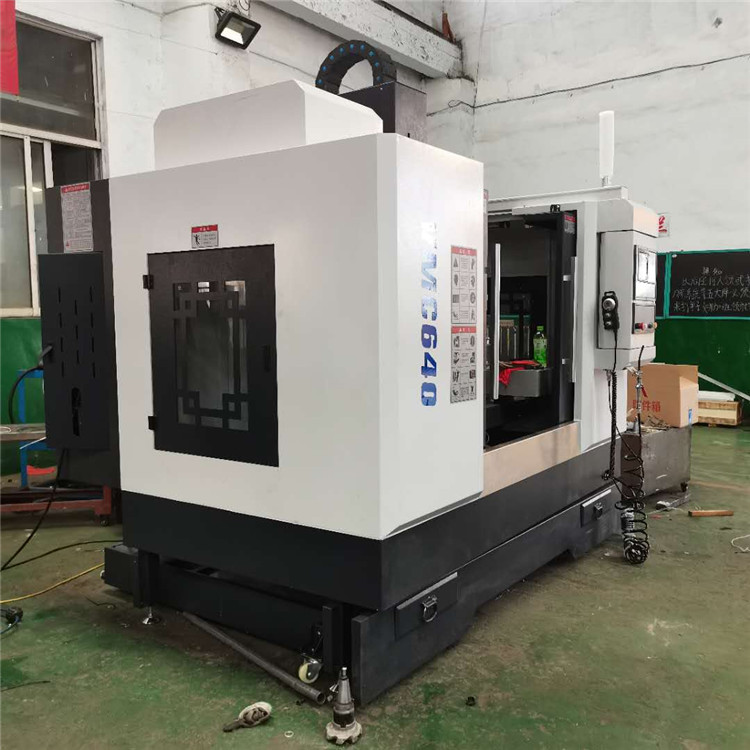

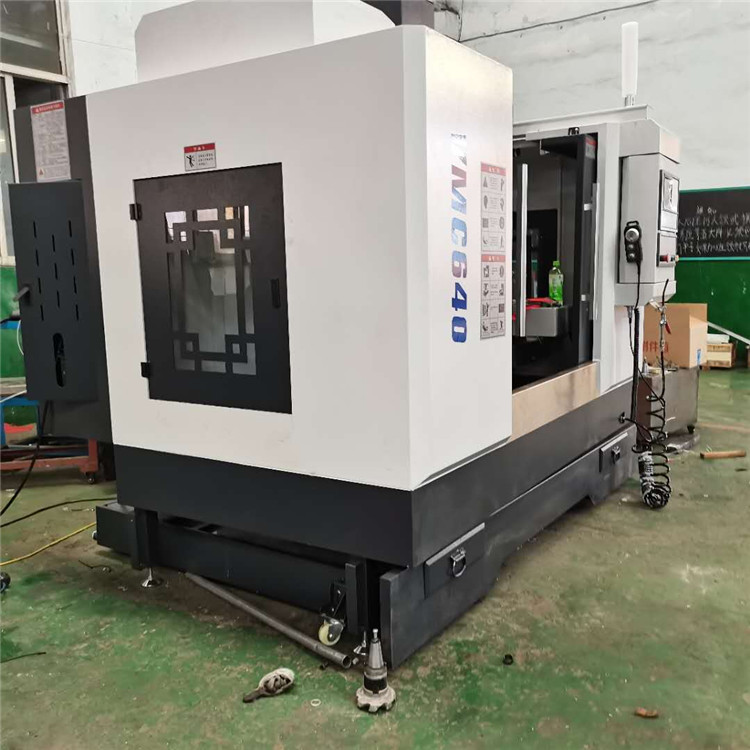

Model VMC640 Workbench Size: 800mmx300 Travel of X-axis mm 600 Y-axis travel mm 360 Z-axis Travel mm 450 Workbench Load Capacity: 300 kg T-slot (quantity-width-gap) 3-16x80 Spindle speed: rpm 8000 (Optional: 10,000) Spindle Taper mm BT40 Main Motor Power: 5.5 kW X/Y/Z Axis Rapid Traverse Speed m/min 24/24/20 (Optional: 48/48/36) Cutting Feed Rate mm/min 1-10000 Track Type Bearing to column face distance mm 410 Spindle end to worktable surface distance: 100-550 mm Positioning Accuracy mm ±0.0075 Repeatability accuracy mm ±0.005 Tool magazine 16 Armless/(Optional: Arm 24) Blade Diameter: φ90 mm Knife Weight: 8 kg Machine Tool Weight: 3,000 kg Dimensions: 1900mmx1700x2100 Standard Configuration: No Configuration Content CNC System: KND1000/GSK980MDI 2 Spindle Speed: 8000 rpm 3 Spindle Rotation Method: Belt 4 Spindle Taper: BT40/120 5 600x360x450m 6 Taiwan 16-Sword Hat Knife Inventory 7 Speed: 36/36/36 m/min 8 (1) Cutting Coolant System (2) Automatic Lubrication System (3) Chip Blowing Device (4) Explosion-Proof Work Lights (5) Tri-color Warning Lights (6) Leveling Bolts and Washers (7) Electrical Box Radiators (8) Three-Axis Screw Pre-tensioning Device (9) Program Storage (10) RS232 Interface (11) Machine Internal Cleaning Device: Air Gun (12) Manual Pulse Generator: Handwheel (13) Transformer (14) Three-Axis Extendable Protective Cover (15) External Protective Sheet Metal (16) Rigid Tapping (17) Precision Inspection Certificate (18) Electrical Instructions (19) User Manual (20) Program Operation Manual
