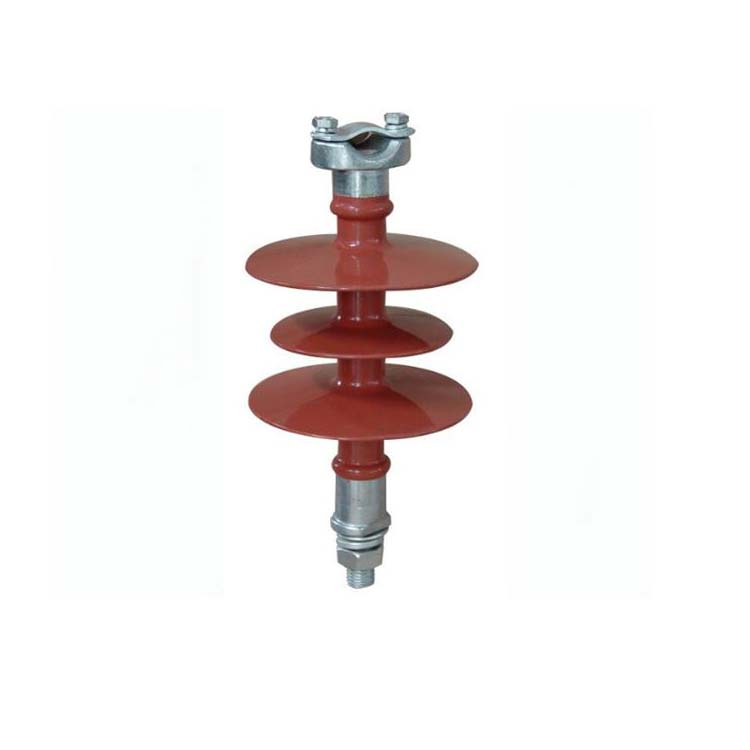

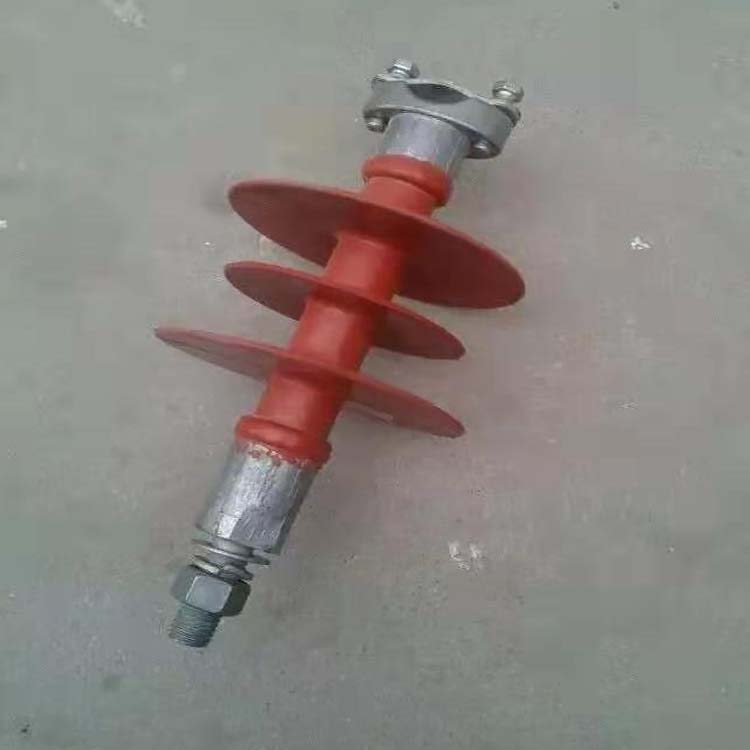

Composite needle insulators have high bending resistance, superior impact resistance, seismic resistance, and explosion-proof performance. The internal insulation is reliable and lightweight, making it an ideal replacement product for traditional electric porcelain.
Product Description: FPQ4-10/3T20
F represents composite; P represents needle type; Q represents anti fouling type
◆ 4 represents the anti fouling level
◆<103="">Rated voltage (kv)/rated bending load (kN)
◆ T-iron cross arm; L-fiberglass cross arm; M-wooden crossbar
◆<20>Steel foot diameter (mm)
◆ Color: Omitted as deep red; H-gray; G-green;
Types of composite insulator products
FXBW - Rod type Suspension Insulator
FPQ - Composite Pin Insulators
FZSW Composite Post Insulator
FS Composite Cross arm Insulator
FCGW - Composite Dry Wall Penetrating Sleeve
FQE (X) - Composite insulators for electrified railways
FQJ - Electrified road roof composite insulator
Usage conditions:
·Environmental temperature -40 ° C~+40 ° C
·AC power frequency not exceeding 100Hz
·Earthquake intensity not exceeding magnitude 8
·Altitude not exceeding 1500 meters
·Strong wind speed not exceeding 35m/s
