Special containers refer to containers that have been specially designed and equipped in terms of structure and equipment to meet the needs of transporting special goods. There are many types of containers that are suitable for different types of goods.

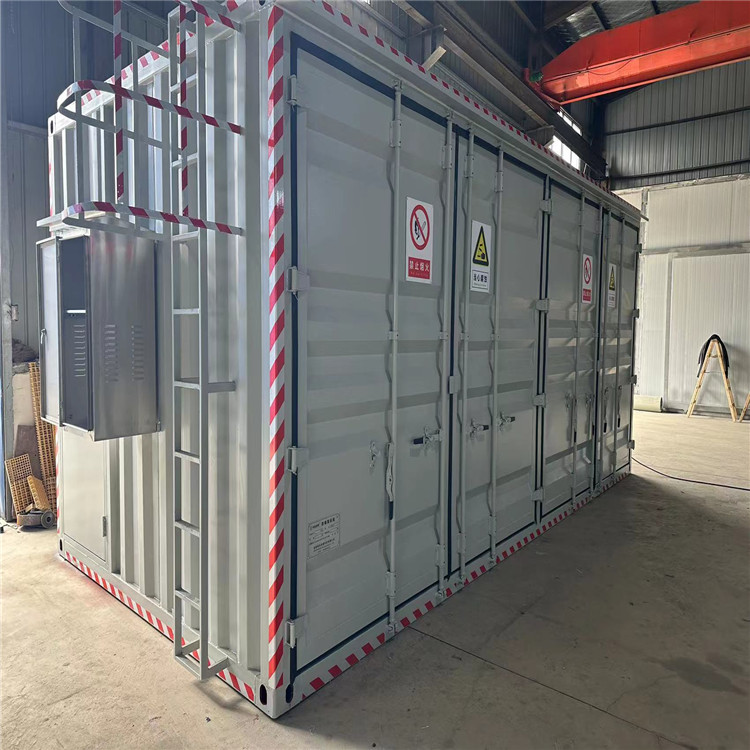

1、 Basic structure of explosion-proof container:
1. Dimensions: 2550 (H) * 12000 (L) * 2350 (W) mm2. Main components and requirements of the box: ① Steel plate welding composition; ② The outer top layer is equipped with explosion-proof facilities; ③ The internal wall is made of rock
Cotton layer and floor panel grid board coverage;④ One fireproof and explosion-proof door and one emergency door each; ⑤ Internal safety warning signs ⑥ External rust and rain prevention treatment ⑦ Laying of freight slopes
2、 Internal structural system
1. Explosion proof air conditioner: BKGR-72 3 horsepower air conditioner, 1 unit, power supply: 220V, wall mounted installation
2. Lighting system:
Internally, according to the requirements of explosion-proof electrical GB3836, 4 sets of explosion-proof all plastic fluorescent lamps, 1 explosion-proof lighting distribution box, 2 explosion-proof plugs, 1 explosion-proof emergency lighting lamp, 1 explosion-proof marker light, and explosion-proof lighting switch are added
Close one. Operated by explosion-proof electrical installation professionals, using steel pipe wiring and explosion-proof pipe fittings for connection. Explosion proof lighting distribution box galvanized pipe wiring
3. Explosion proof ventilation system
① One explosion-proof exhaust fan or explosion-proof axial fan, voltage: 220V, air volume: 2880m3/h, helps with internal ventilation.
② Explosion proof windows 2, size: 400 * 600, installed on the back or both sides of the container
4. Fire alarm system
① Two explosion-proof sound and light alarms; ② Two explosion-proof combustible gas alarms; ③ 2 explosion-proof smoke detectors and 4 explosion-proof fire extinguishers; ⑤ One set of outdoor spray eye wash device, Party A needs to lead the water source to the site
⑥ One set of anti-static release device ⑦ One set of lightning protection device
(For example only, dimensions can be customized according to needs, and internal explosion-proof electrical appliances can be configured according to requirements)
